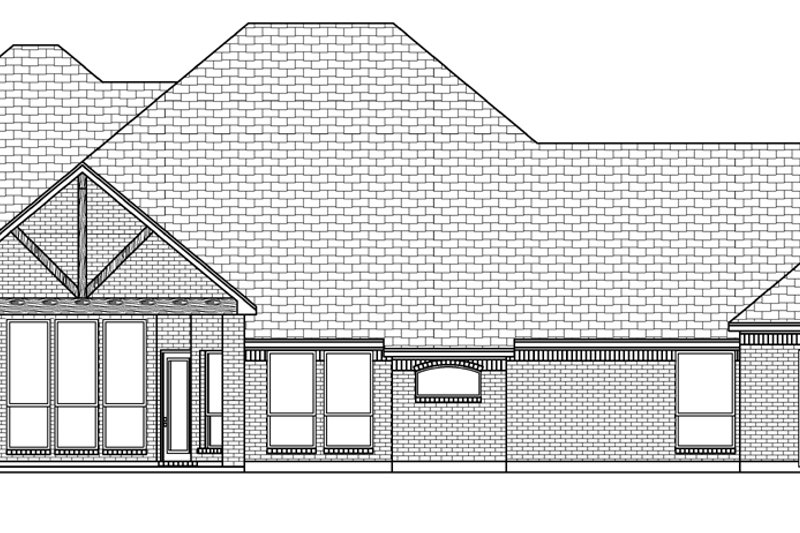

House Plan Design - Tudor Exterior - Rear Elevation Plan #84-591

Home / Style / Tudor Home Plans

Key Specs

2740
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$175.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$885.00

Also order by phone: 1-800-528-8070

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 84-591

Home / Style / Tudor Home Plans

Key Specs

2740
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

Oversized living, kitchen & dining area look out on a fun-sized porch w/fireplace. Generous bedrooms with walk-in closets, a library which could be opened up as a formal dining, & an elegant master suite all make the plan perfect for an active family with good taste. Brick detailing in stone gables lend warmth to the front elevation.

Floor Plans

Floor Plan - Main Floor

Reverse

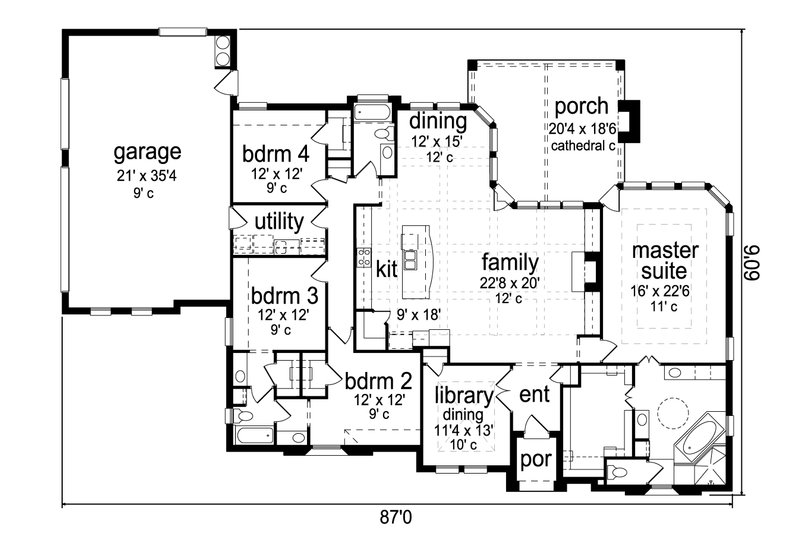

House Plan Design - Tudor Floor Plan - Main Floor Plan #84-591

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 60' 6"

Height : 27'

Width : 87'

Area

First Floor: 2740 sq/ft

Garage: 810 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 11' Tier in Master Bdrm Cathedral ceiling on back porch

Garage Ceiling : 9'

Main Ceiling : 12'

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Gable

Exterior Wall Framing

Exterior Wall Finish : brick, stone

Framing : 2x4

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Master Sitting Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 12' x depth 12'

Bedroom 3:

width 12' x depth 12'

Bedroom 4:

width 12' x depth 12'

Dining:

width 12' x depth 15'

Family Room:

width 22' 8" x depth 20'

Front Porch:

37 sq/ft

Garage:

810 sq/ft width 21' x depth 35' 4"

Kitchen:

width 9' x depth 18'

Library:

width 11' 4" x depth 13'

Master Suite:

width 16' x depth 22' 6"

Rear Porch:

340 sq/ft width 20' 4" x depth 18' 6"

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
