Plan Description
This european design floor plan is 2685 sq ft and has 4 bedrooms and 3 bathrooms.
Floor Plans

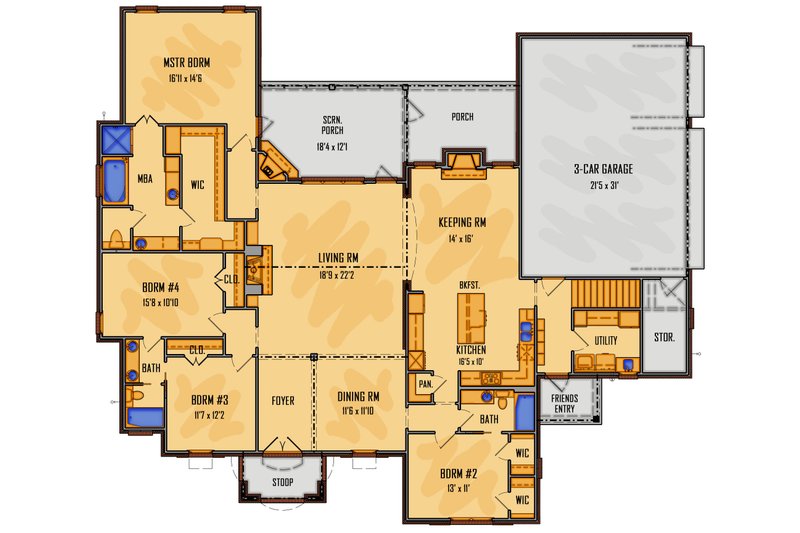

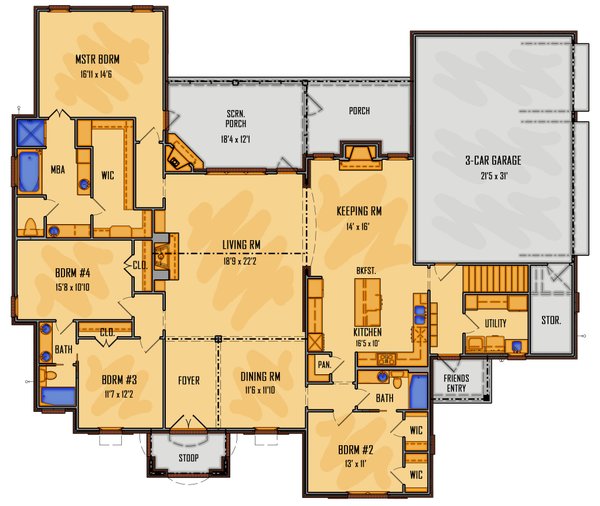

Floor Plan - Main Floor

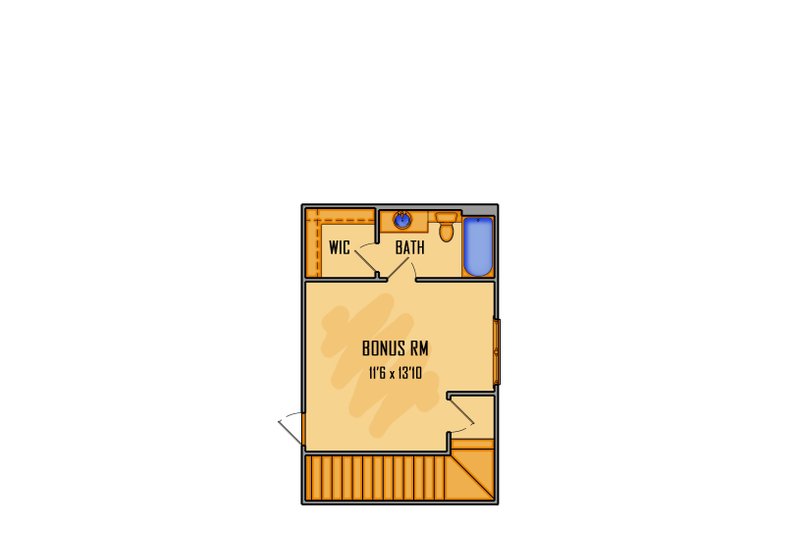

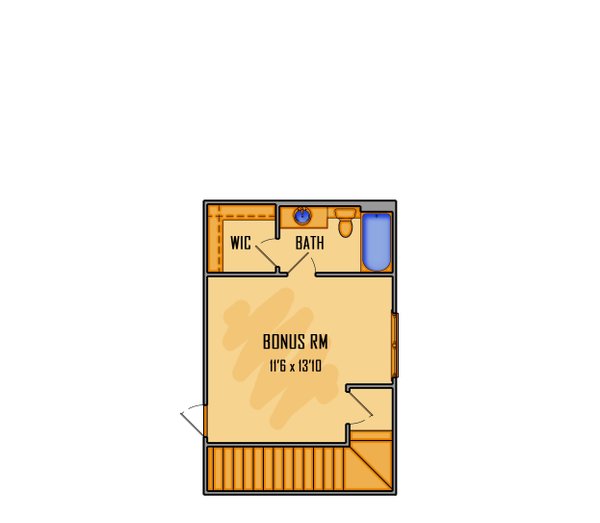

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 67' 2"
Height: 29' 10"
Width: 77' 3"
Area
Garage: 761 sq/ft
Main Floor: 2685 sq/ft
Optional Bonus Room: 350 sq/ft
Porch: 500 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling: 9'
Garage Ceiling: 10'
Main Ceiling: 11'
Roof
Primary Pitch: 12/16
Roof Framing: Stick
Roof Type: Shingles
Secondary Pitch: 12/12
Exterior Wall Framing
Exterior Wall Finish: Brick
Framing: 2x4
Insulation: yes
Bedroom Features
Guest Suite
Main Floor Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
Screened Porch
More
Suited For Vacation Home
What's Included In This Plan Set
• COVER PAGE: Cover Sheet shows architectural rendering of residence
• FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated / unexcavated areas.
• FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
• ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof pitch, ridges, and valleys.
• ELEVATIONS: View of the home from all four sides, showing exterior materials and measurements.
• SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring, and roofing (excluding garage).
• ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
• FLOOR JOIST DETAILS: Two-story plans will show floor joist details.
• TYPICAL WALL SECTION & DETAILS
• CONSTRUCTION NOTES AND DETAILS: outlines elements applicable to the design of your home.
*Note: Structural sheets from the original design may be included. These sheets are not location-specific.Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover Sheet shows architectural rendering of residence
- Foundation Plan(s): Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated / unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Exterior Elevations: View of the home from all four sides, showing exterior materials and measurements.
- Overhead Roof Plan(s): An overhead "birds-eye" view of the roof, describing roof pitch, ridges, and valleys.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring, and roofing (excluding garage).
- Electrical Plan(s): Shows the locations of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Two-story plans will show floor joist details. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Structural Information: Structural sheets from the original design may be included. These sheets are not location-specific. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
