Plan Description

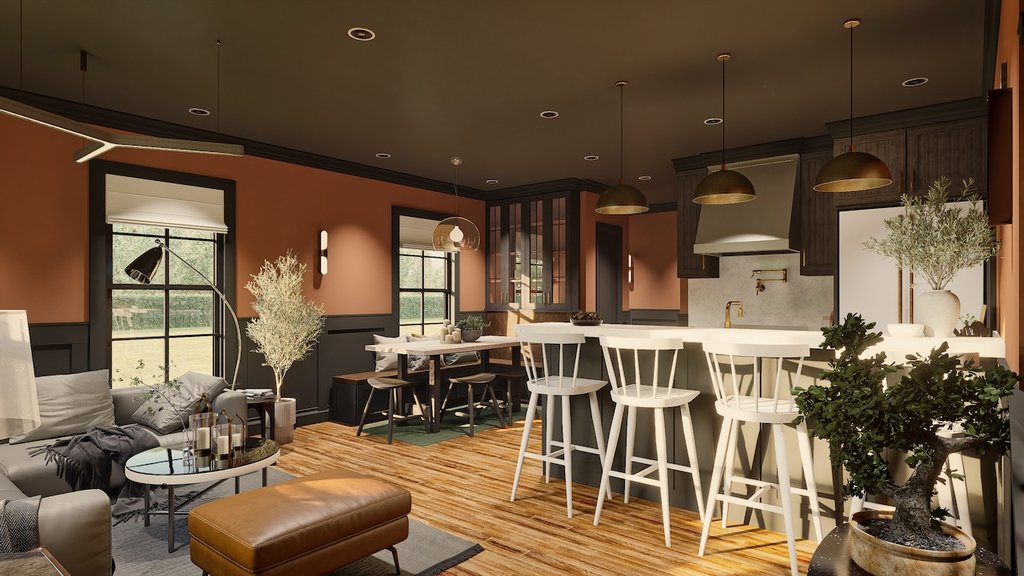

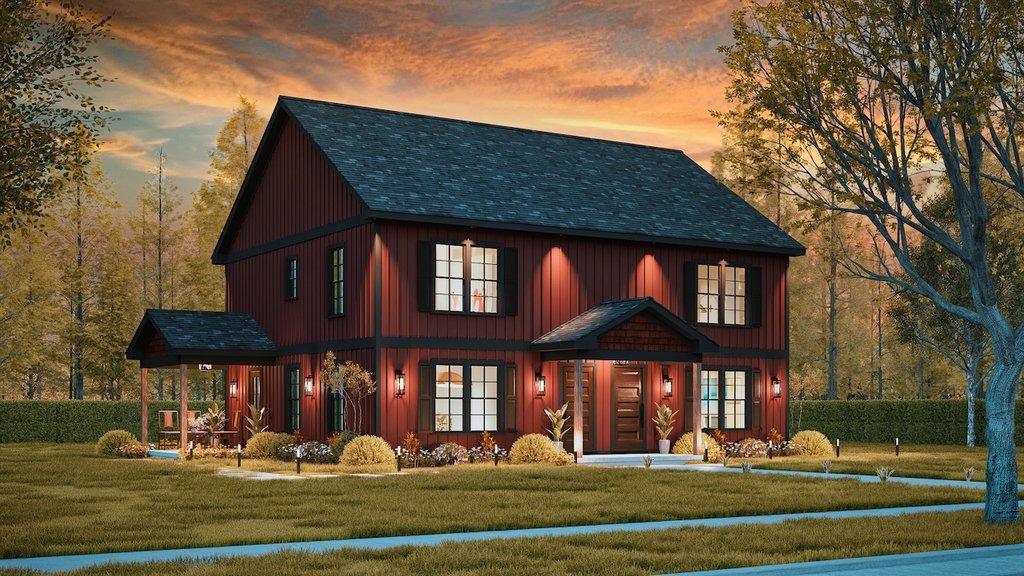

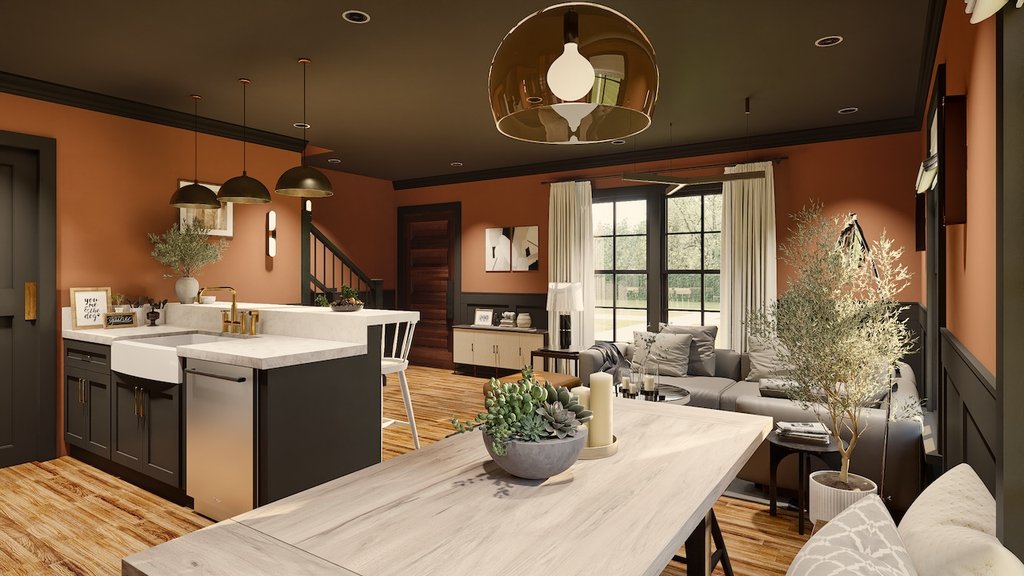

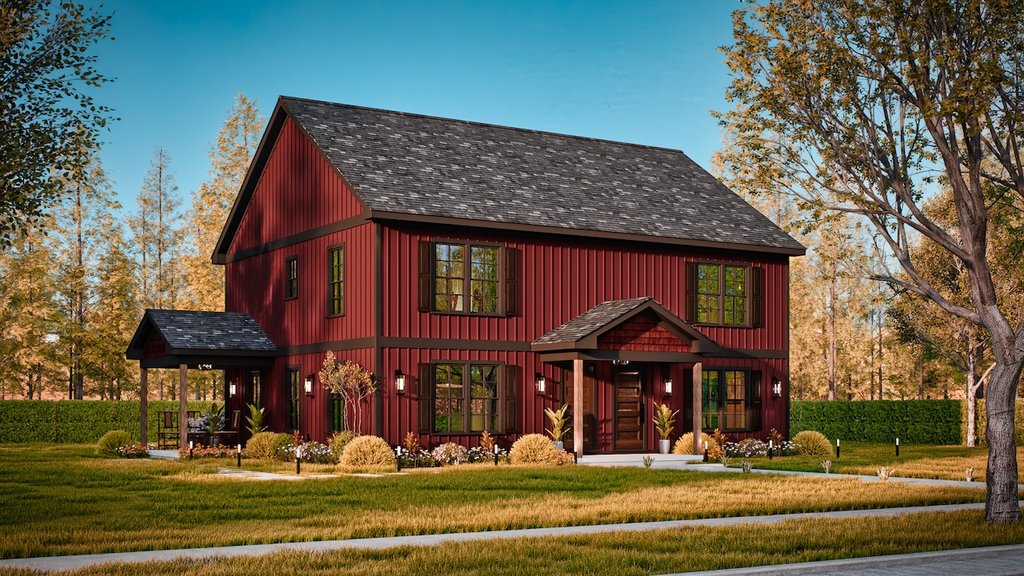

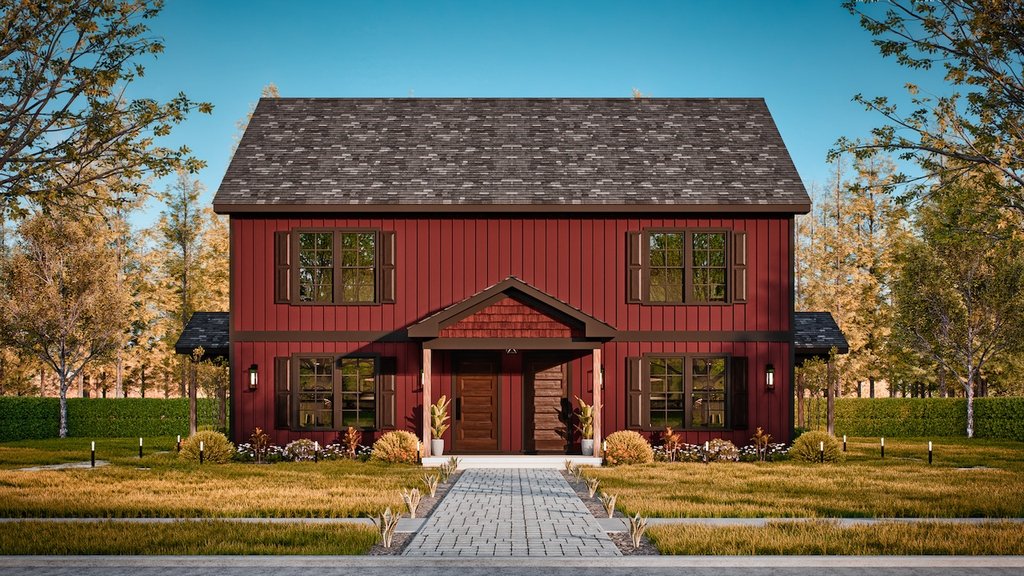

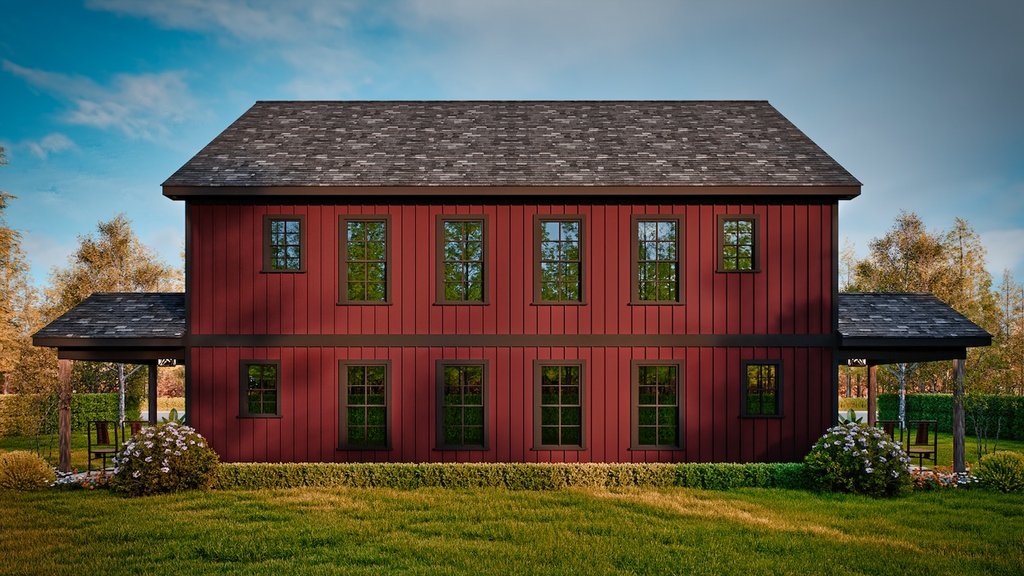

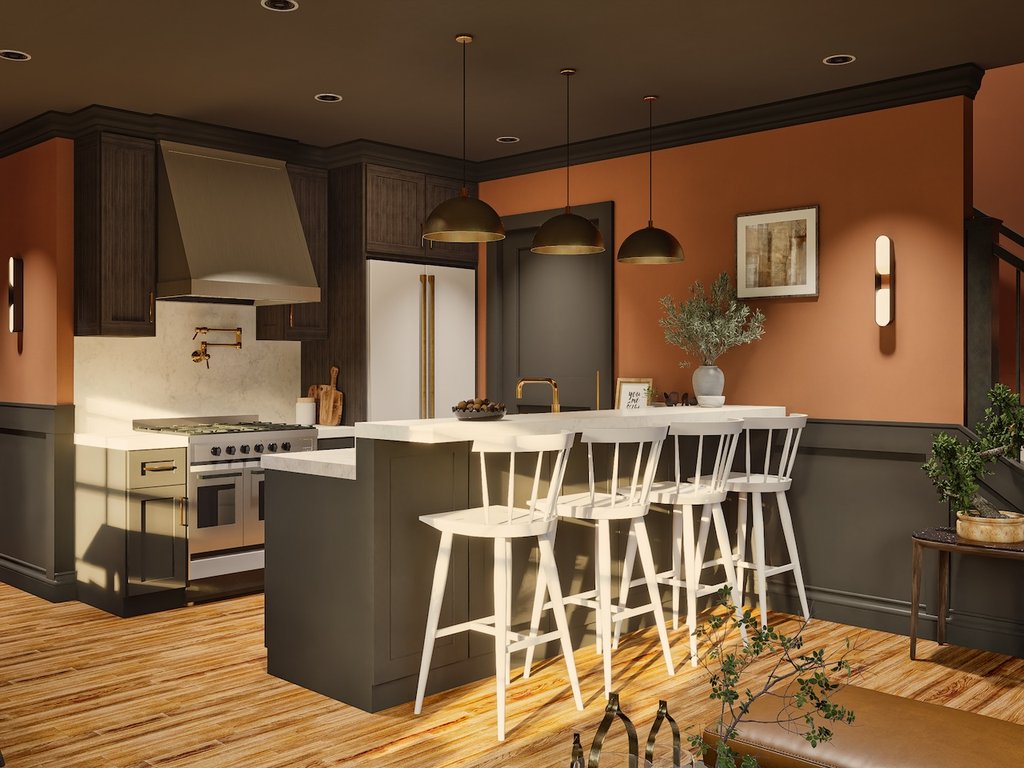

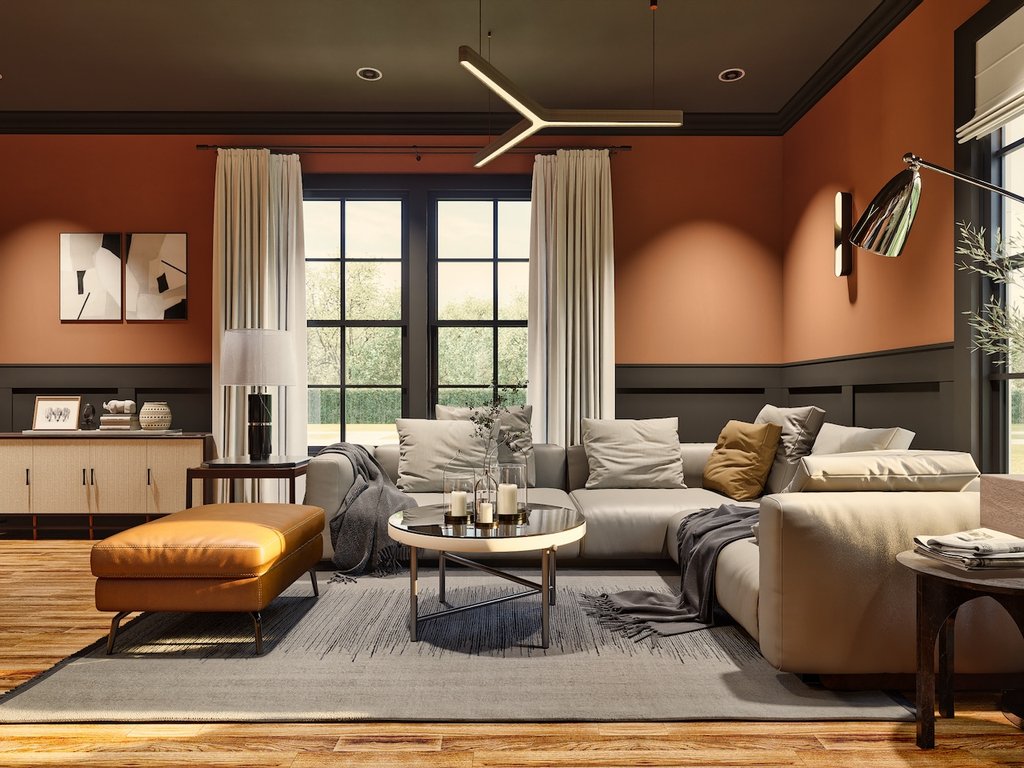

This 2,560 sq. ft. duplex is thoughtfully designed for functionality, privacy, and modern living. Each unit offers 1,280 sq. ft. of well-planned space, featuring three bedrooms and three bathrooms, making it ideal for families, roommates, or rental investment. The open floor plan seamlessly connects the kitchen, dining, and family room, creating a spacious and inviting atmosphere. A kitchen island provides extra counter space and seating, while a walk-in pantry and ample storage enhance convenience. Each unit includes a covered front porch and a private side porch (96 sq. ft.), ensuring separate outdoor spaces for relaxation. The side porches are positioned on opposite sides of the duplex, maintaining privacy for both occupants. Built on a slab foundation, the home features stick-framed roofing with an 8:12 pitch and 8-foot ceilings on both floors, giving it an open and airy feel. The structure measures 56 feet wide by 37 feet deep, maximizing space efficiency without compromising comfort. This duplex-style home is perfect for those seeking independent yet connected living spaces. With walk-in closets, dedicated storage, and private outdoor areas, this home offers a balance of practicality and style, making it a smart choice for multi-family living or rental opportunities.
Floor Plans

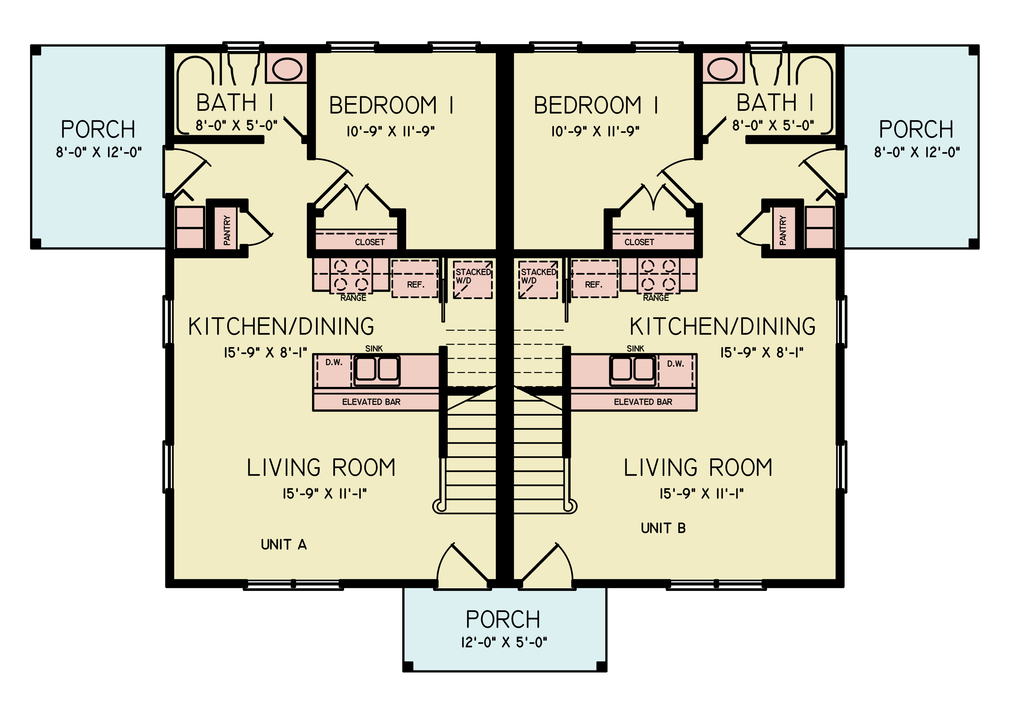

Floor Plan - Main Floor

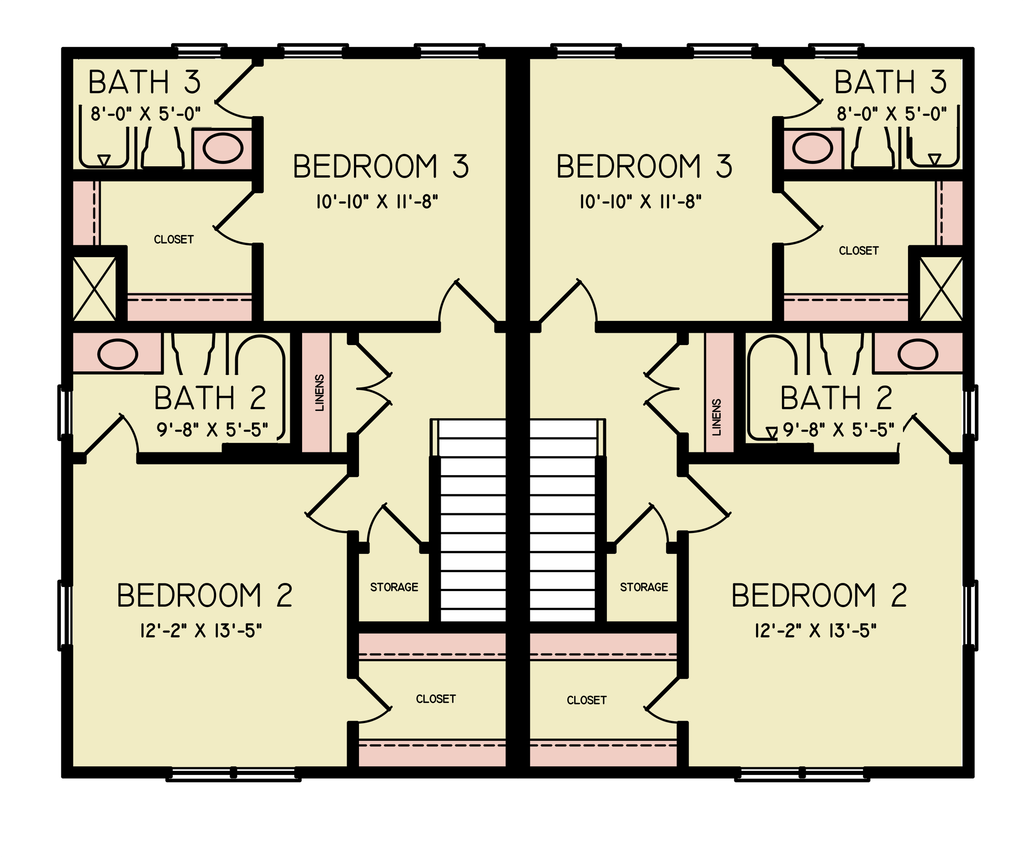

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 37'
Height : 28' 10"
Width : 56'
Area
Main Floor : 1280 sq/ft
Porch : 252 sq/ft
Upper Floor : 1280 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Stick
Roof Type : Shingles
Exterior Wall Framing

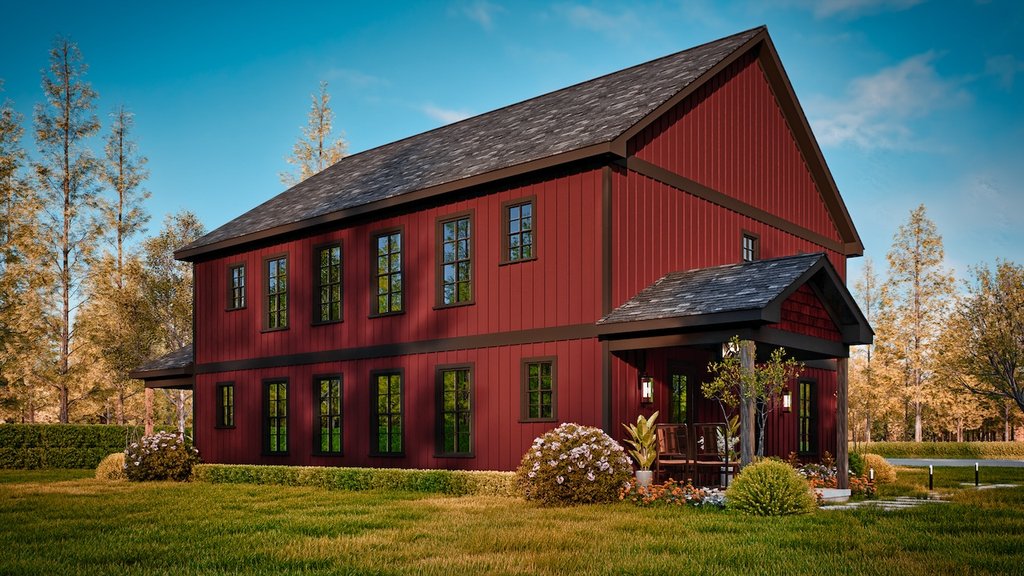

Exterior Wall Finish : Board & Batten
Framing : 2x4
Insulation : PER IRC REQUIREMENTS
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features

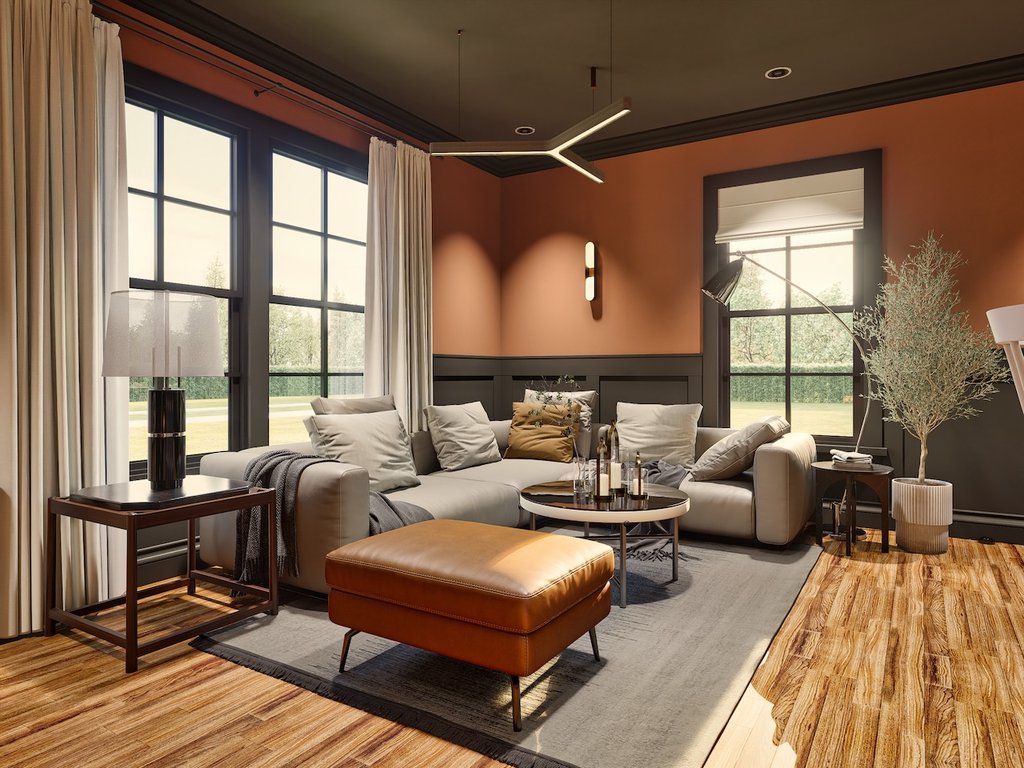

Family Room Keeping Room
Storage Area
Outdoor Spaces

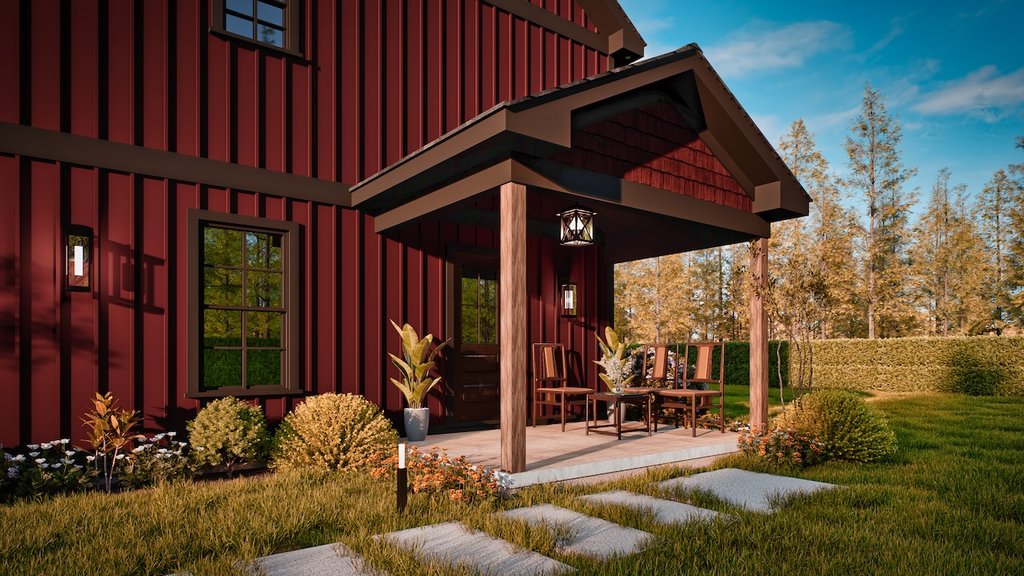

Covered Front Porch
More
Additional Half Bath
Economical To Build
Two Family Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1568.25
$1568.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1780.75
$1780.75
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1865.75
$1865.75
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2290.75
$2290.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2970.75
$2970.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$255.00
$255.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$297.50
$297.50
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$191.25
$191.25
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
