PLAN #472-168

Key Specs


2500
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Plan Description


Here’s a lovely one-story plan with an open layout that gives space where it counts. Take a look at the kitchen: a wide snack-bar island provides lots of room for casual seating, with another island in the middle. A walk-in pantry holds plenty of groceries. On the left, the master suite enjoys privacy and an impressive array of amenities: a bay window, two walk-in closets, double sinks, and a window-side tub. Three secondary bedrooms occupy the opposite side of the home.

Floor Plans


Floor Plan - Main Floor Plan

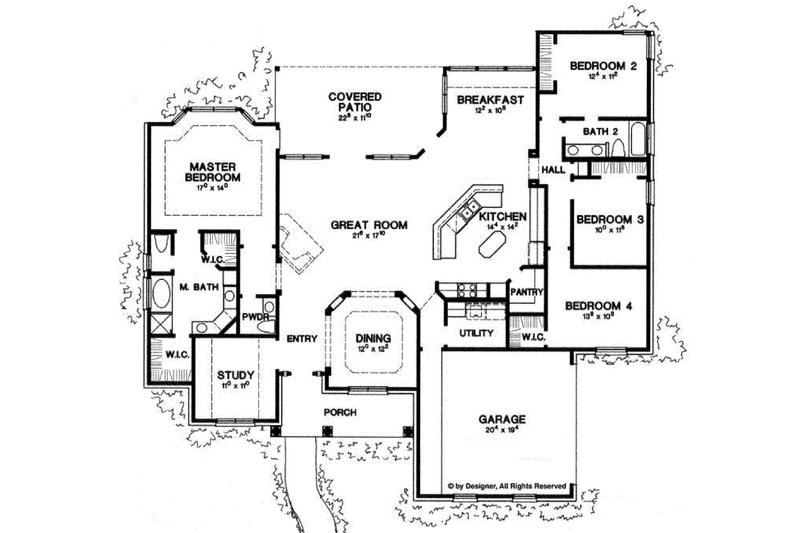

Ranch Floor Plan - Main Floor Plan Plan #472-168
Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #472-168

Full Specs & Features


Dimension
Depth : 62' 10"
Height : 25'
Width : 68' 7"
Area
First Floor: 2500 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 8:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Deck

What's Included In This Plan Set


  • ELECTRICAL SCHEMATIC

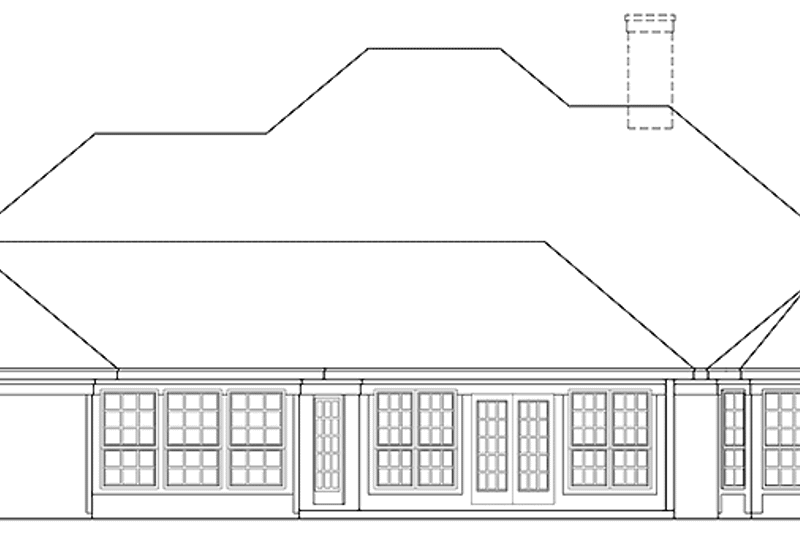

  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
» See important information before purchasing.
Plan Set
5 Copy Set :
$995.00
5 printed plan sets mailed to you.
8 Copy Set :
$1095.00
8 printed plan sets mailed to you.
PDF Set :
$1345.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2345.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$125.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Right-Reading Reverse :
280.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
