PLAN 924-1

Key Specs


2180
sq ft

3
Beds

2.5
Baths

1
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description

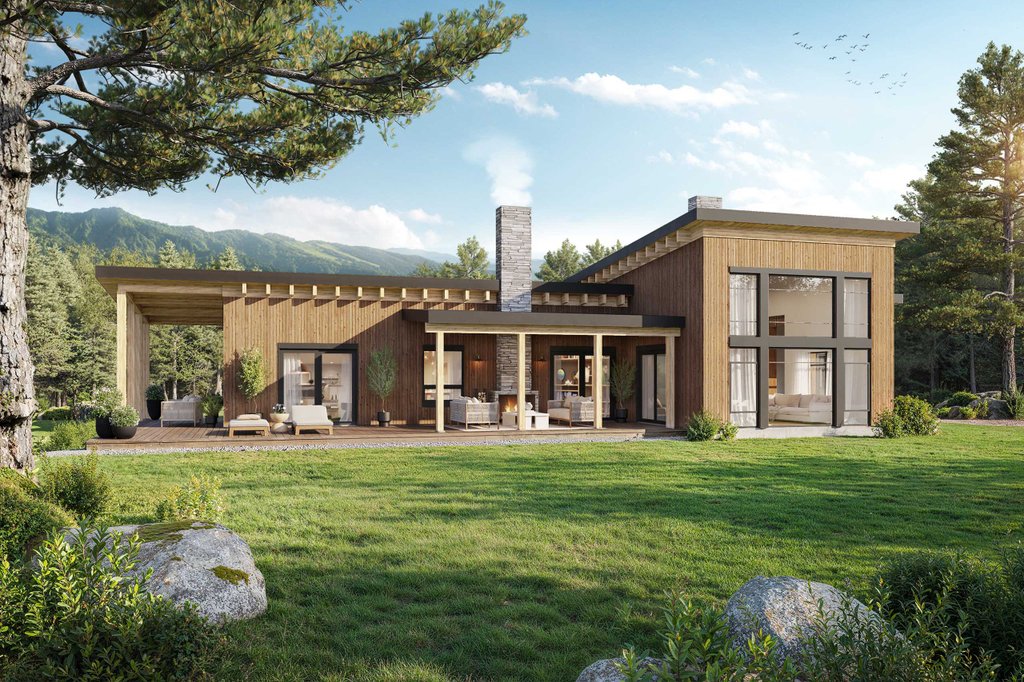

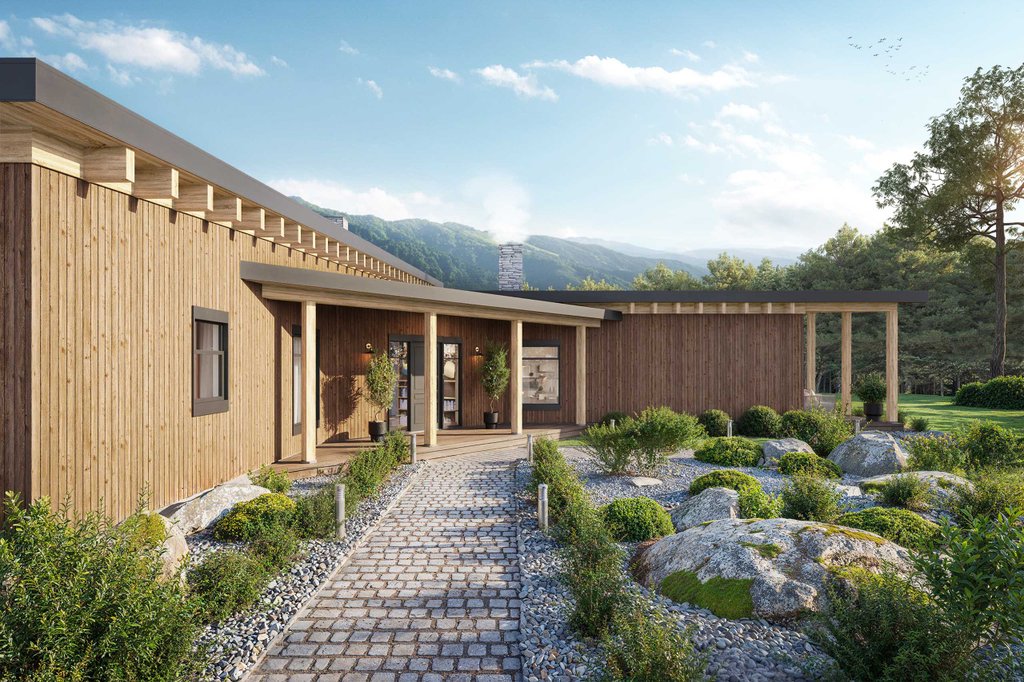

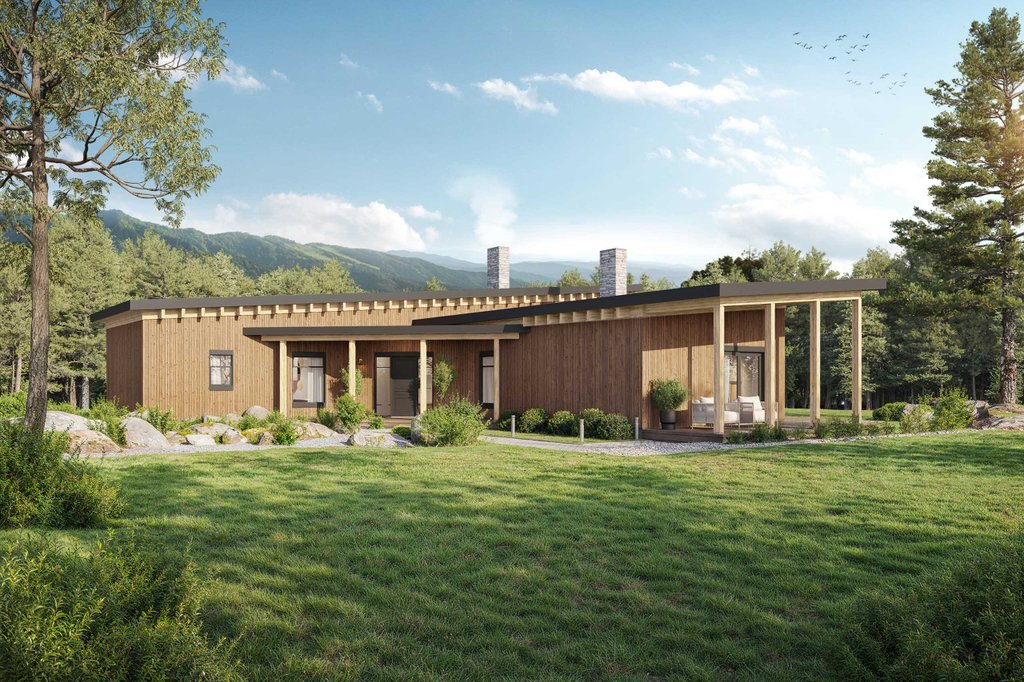

A modern cabin style house was designed to allow inhabitants live comfortably in well-designed living environment. This house character is expressed by connection of interior and exterior spaces. Open floor plan with higher ceiling allows continuing daylight to flow into the house. Spacious kitchen is opened to the dining area and great room. Main fireplace is located in the center of living area which serves as a sculptural object creating warm interior feeling. Master bedroom is located separately from the rest of the bedrooms to allow privacy and comfort. Master suit has its own walk in closet, master bathroom and private master porch for private outdoor activities. House overall has three outside porches which extends indoor space into the outdoor space activities. Main porch has outside fireplace which is an optional choice but serves as a warm outside sculpture. All secondary zones such as utility room, storage and plant room are located at the end of the main house end. This is a flexible area as these spaces could be extended to have more room or other rooms such as garage could be attached if necessary. The focus on this house was to create aesthetically well-designed house which at the same time would be sustainable and energy efficient. We applied sustainable design ideas to make house consume less heating energy which will be clearly visible during the colder time of the year. Interior design in this case show what possibilities home has from inside. This is only suggestion of how house could look from inside and we believe that everybody will design their own interior space according to their specific living taste.

Floor Plans


Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #924-1
Floor Plan - Other Floor Plan
Optional Basement Stair Placement

Full Specs & Features


Dimension
Depth : 71'
Height : 17'
Width : 76'
Area
Main Floor : 2180 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Upper Ceiling Ft : 15'
Roof
Primary Pitch : 0.66 / 12
Exterior Wall Framing
Framing : 2''x 8'' (2''x 6'')
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Detached Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Wrap Around Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Wheelchair Adaptable
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set


  • Cover Sheet
  • Slab Foundation Plan
  • Crawlspace Foundation Plan
  • Plumbing Plan
  • Floor Plan
  • Roof Construction Plan
  • Roof Plan
  • Sections
  • Elevations
  • Electrical Plan
  • HVAC Plan
  • Furniture Plan
  • Door & Window Schedule
  • Construction Details
  • Plumbing Specifications
  • Electrical Specifications
  • Mechanical Specifications
  • » See important information before purchasing.
Plan Set
PDF Set :
$1500.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1600.00
5 printed plan sets mailed to you.
8 Copy Set :
$1700.00
8 printed plan sets mailed to you.
CAD Set :
$2500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$100.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Right-Reading Reverse :
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.
