PLAN #46-464

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans

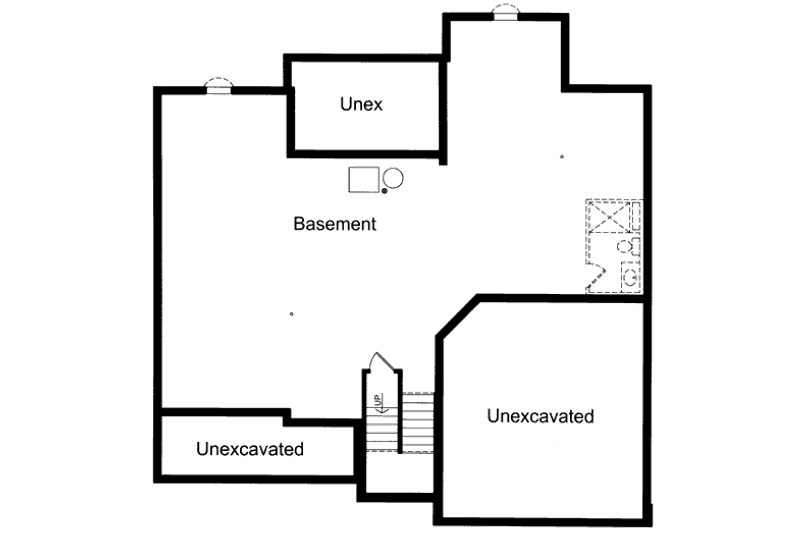

Floor Plan - Lower Floor Plan
Bungalow Floor Plan - Lower Floor Plan Plan #46-464

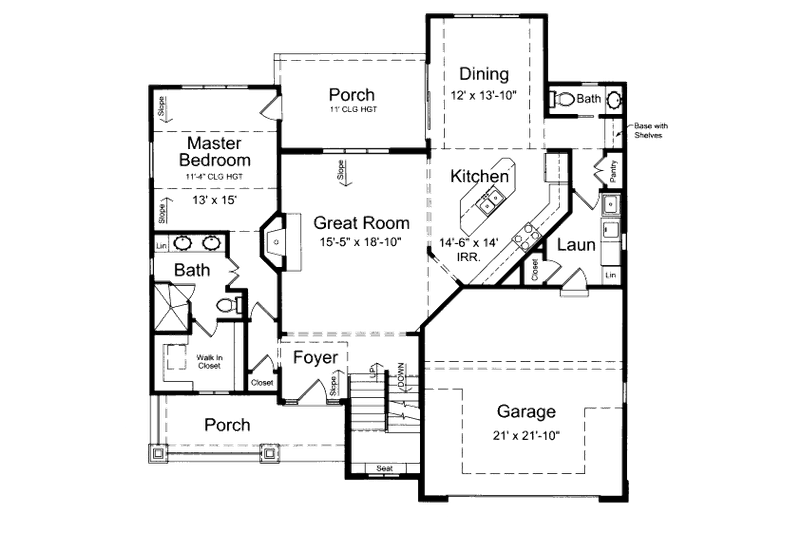

Floor Plan - Main Floor Plan
Bungalow Floor Plan - Main Floor Plan Plan #46-464

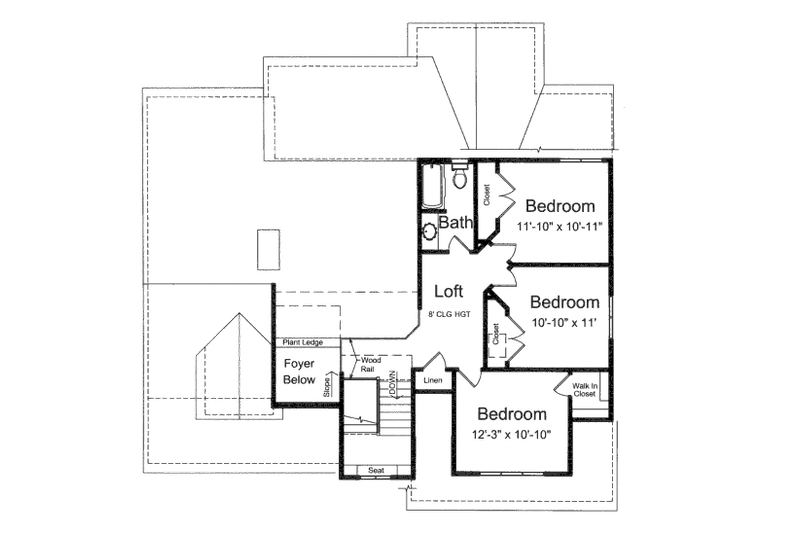

Floor Plan - Upper Floor Plan
Bungalow Floor Plan - Upper Floor Plan Plan #46-464

Full Specs & Features

Depth : 51'
Height : 28'
Width : 50'
First Floor: 1471 sq/ft height 9'
Garage: 449 sq/ft height 10' 5"
Porch: 140 sq/ft
Second Floor: 696 sq/ft height 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch


187 sq/ft width 15' x depth 12' 6"

Bedroom 2:

119 sq/ft width 11' 10" x depth 10' 1"

Bedroom 2 Closet:

17 sq/ft width 2' 1" x depth 8' 6"

Bedroom 3:

119 sq/ft width 10' 10" x depth 11'

Bedroom 3 Closet:

15 sq/ft width 2' 1" x depth 7' 5"

Bedroom 4:

132 sq/ft width 12' 3" x depth 10' 10"

Bedroom 4 Closet:

20 sq/ft width 4' 1" x depth 5' 1"

Breakfast Room:

165 sq/ft width 12' x depth 13' 10"

Covered Porch:

153 sq/ft width 15' 4" x depth 10'

Dining Room:

165 sq/ft width 12' x depth 13' 10"


46 sq/ft width 7' x depth 6' 8"


441 sq/ft width 21' x depth 21'

Gathering Room:

290 sq/ft width 15' 5" x depth 18' 10"

Hall Bathroom:

53 sq/ft width 5' 9" x depth 9' 3"

Hall Closet:

6 sq/ft width 3' 3" x depth 2' 1"


205 sq/ft width 14' 6" x depth 14' 2"

Kitchen Island:

27 sq/ft width 8' x depth 3' 5"

Linen Closet:

8 sq/ft width 4' 1" x depth 2' 1"

Master Bathroom:

67 sq/ft width 7' 7" x depth 8' 11"

Master Bedroom:

195 sq/ft width 13' x depth 15'

Master Closet:

69 sq/ft width 9' 6" x depth 7' 4"


6 sq/ft width 1' 9" x depth 3' 11"

Porch - Front:

146 sq/ft width 20' 8" x depth 7' 1"

Powder Room:

24 sq/ft width 7' 10" x depth 3' 1"

What's Included In This Plan Set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

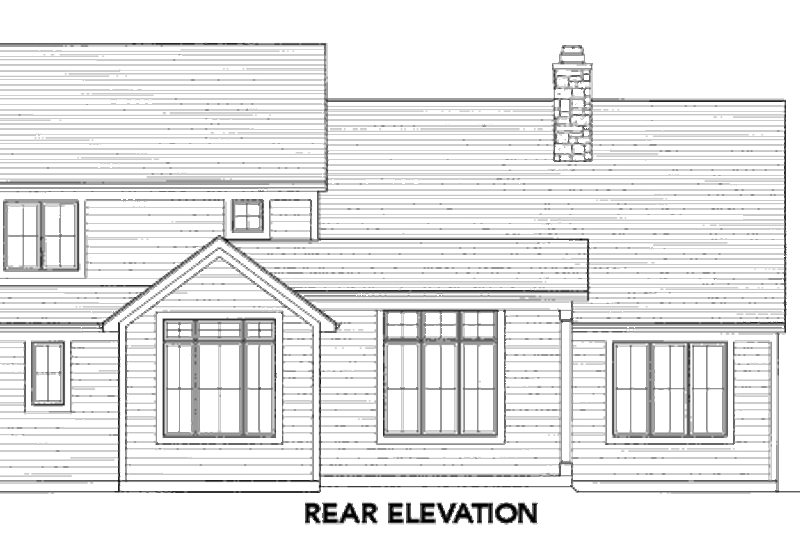

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
