PLAN 1064-152

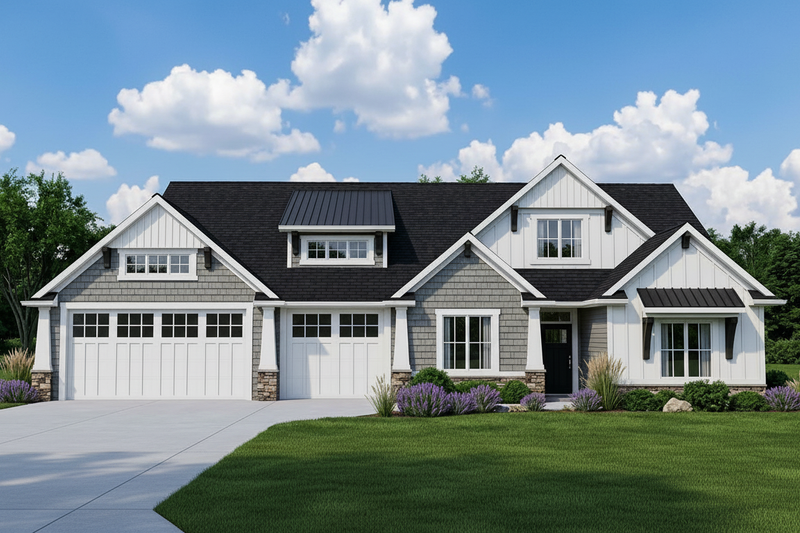

House Plan Design - Craftsman Exterior - Front Elevation Plan #1064-152

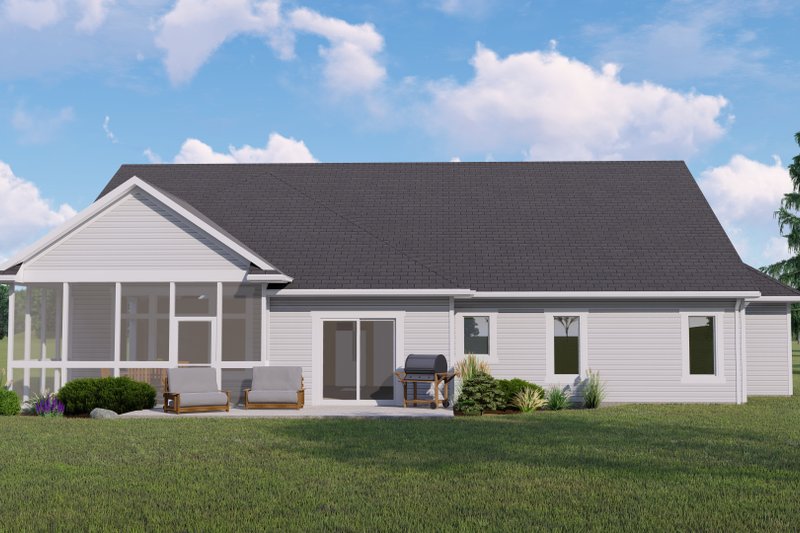

House Plan Design - Craftsman Exterior - Rear Elevation Plan #1064-152

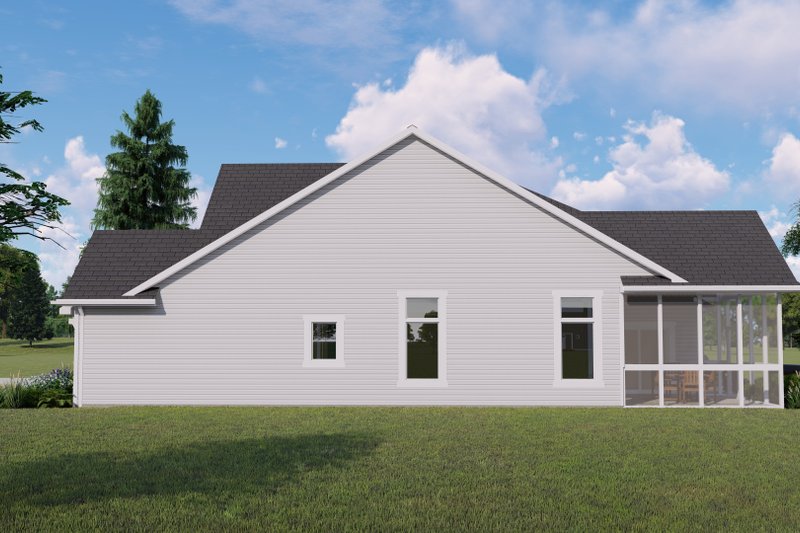

House Plan Design - Craftsman Exterior - Other Elevation Plan #1064-152

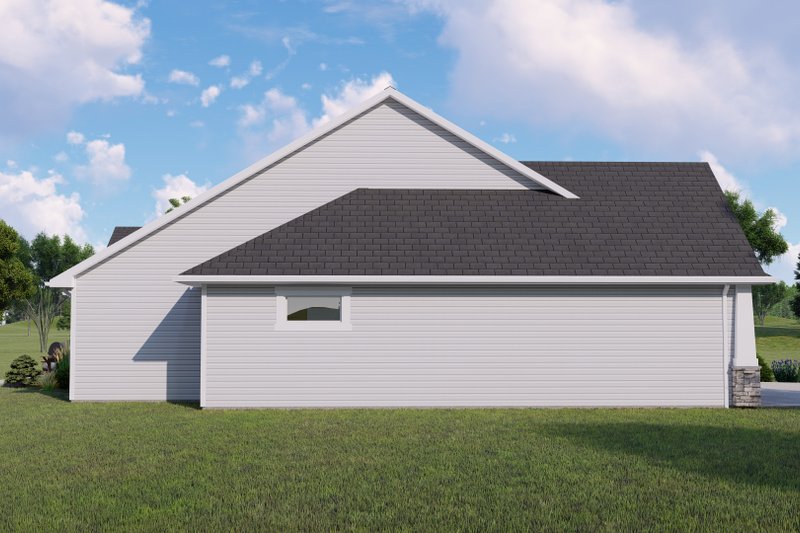

House Plan Design - Craftsman Exterior - Other Elevation Plan #1064-152

Key Specs


Plan Sq Ft

2131
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?
Right-Reading Reverse
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$35.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
$1050.00
Also order by phone: 1-800-528-8070
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1064-152

Key Specs

Plan Sq Ft

2131
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Full Specs & Features

Dimension
Depth : 58'
Height : 23'
Width : 63'
Area
Garage : 705 sq/ft
Main Floor : 2131 sq/ft
Patios : 40 sq/ft
Porch : 301 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Cathedral Ceiling in Screened Porch
Garage Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 10/12
Roof Framing : Truss
Roof Load : 30psf
Roof Type : Asphalt Shingles
Secondary Pitch : 7/12
Exterior Wall Framing
Exterior Wall Finish : Siding/Manufactured Stone/Shake/Board & Batten
Framing : 2x6
Insulation : R-19
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

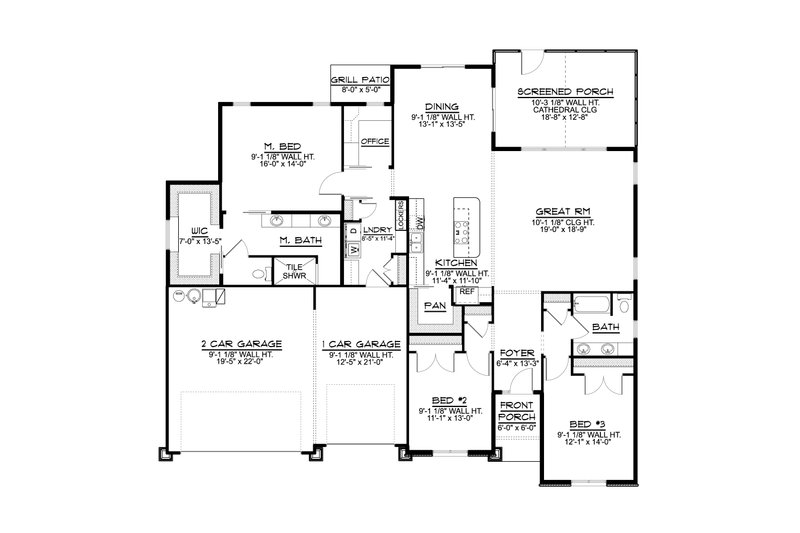

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-528-8070
Plan Set
PDF Set :
$1050.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1200.00
5 printed plan sets mailed to you.
5 Copy and PDF Set :
$1300.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6
Wood 2x4:
$250.00
Wood 2x4

Additional Options

Right-Reading Reverse :
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$35.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
