Full Specs & Features
Height : 29' 10"
Width : 78' 10"
Bonus: 374 sq/ft height 9'

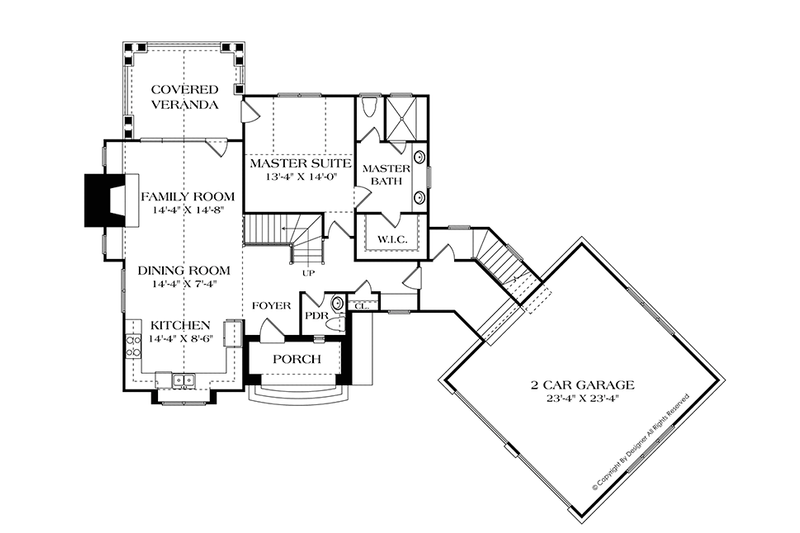

First Floor: 1150 sq/ft height 10'
Garage: 791 sq/ft
Storage: 168 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Framing : Wood - 2x4
Main Floor Master Bedroom
Walk In Closet
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
Covered Front Porch:
106 sq/ft width 14' 4" x depth 7' 4"
210 sq/ft width 14' 4" x depth 14' 8"
719 sq/ft width 23' 4" x depth 23' 4"
224 sq/ft width 16' x depth 14'
122 sq/ft width 14' 4" x depth 8' 6"

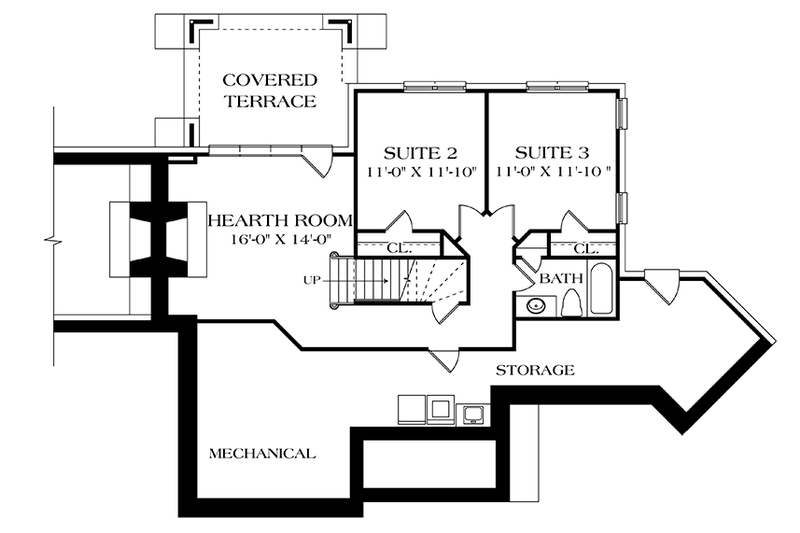

Lower Level Mechanical:
Lower Level Storage:
187 sq/ft width 13' 4" x depth 14'
47 sq/ft width 8' 8" x depth 5' 5"

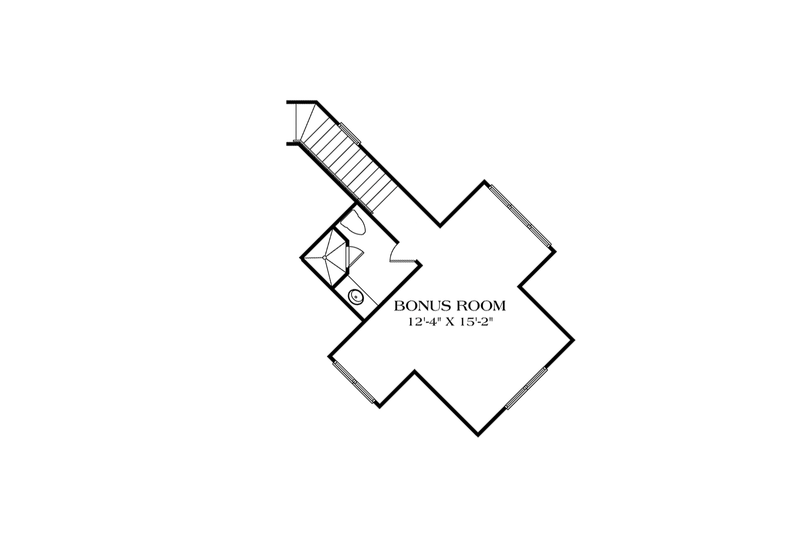

Optional Bonus Room:
374 sq/ft width 12' 4" x depth 15' 2"
27 sq/ft width 5' 4" x depth 5'
130 sq/ft width 11' x depth 11' 10"
121 sq/ft width 11' x depth 11'
What's Included In This Plan Set
- Dimensioned and detailed Foundation plan (type as listed on home plan description)
- Dimensioned and detailed floor plans
- Framing plans (framing may be shown on floor plans in some cases.)
- Complete front, side and rear elevations
- Roof plan
- Typical building sections (as deemed necessary for construction)
- Typical foundation details, wall sections, and cornice details necessary for construction
- Separate electrical plan (may be shown on floor plans in some cases)
|PDF Set :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Reproducible Set :
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|CAD Set :
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for sloping lot, lower level of home partially underground.|
|Additional Construction Sets :
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design :
|Receive an overlay sheet with suggested placement of audio and video components.|
|Construction Guide :
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Lighting Design :
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets :
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
