PLAN 1070-37

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

2084
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$38.25/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
$637.50
Allows you to build one more home for each additional license purchased.
Audio Video Design
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$420.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $1487.50
You save $262.50 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 1070-37

Plan Description


New and chic, this 1,784-square-foot design gives you an open layout and three bedrooms. The kitchen shows off a big island and overlooks the family room, with nearby access to the back patio. When it's time to unwind, head over to the private master suite, where you'll find a large shower, two sinks, a walk-in closet, and views of the backyard.

Floor Plans

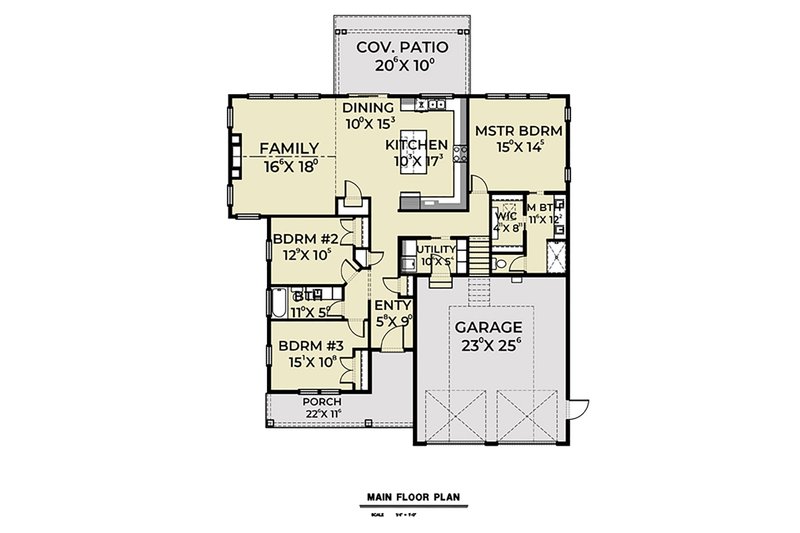

Floor Plan - Main Floor

Reverse
Save

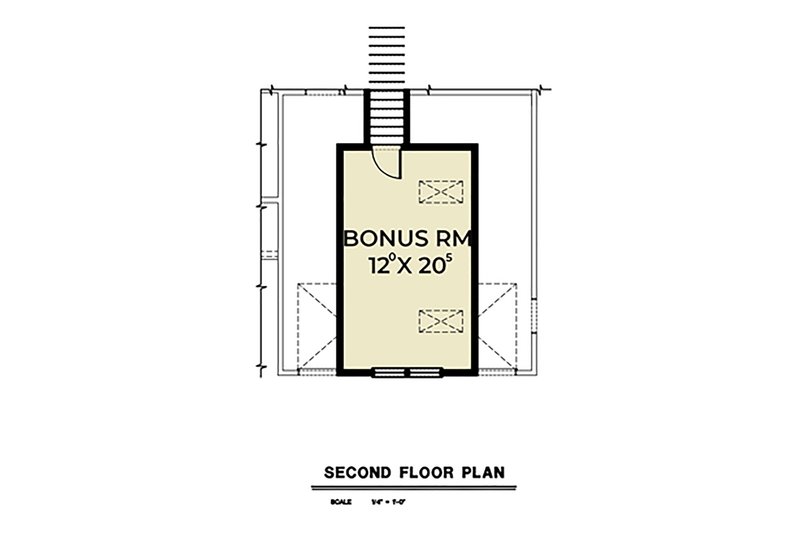

Floor Plan - Upper Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 54'

Height : 26' 7"

Width : 52' 6"

Area

Bonus : 300 sq/ft

Garage : 619 sq/ft

Main Floor : 1784 sq/ft

Patios : 205 sq/ft

Porch : 155 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 12/12

Roof Framing : Truss

Secondary Pitch : 12/8

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding

Framing : 2 x 6

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

More

Economical To Build

Rooms

Bedroom 2:

width 12' 9" x depth 10' 5"

Bedroom 3:

width 15' 1" x depth 10' 8"

Covered Patio:

width 20' 6" x depth 10'

Dining:

width 10' x depth 15' 3"

Entry:

width 5' 8" x depth 9'

Family Room:

width 16' 6" x depth 18'

Garage:

width 23' x depth 25' 6"

Kitchen:

width 10' 3" x depth 17' 3"

Master Bedroom:

width 15' x depth 14' 5"

Utility:

width 10' 4" x depth 5' 4"

What's Included


Please note: This designer includes the bonus square feet to the total heated living square feet.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1487.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1870.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1912.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$743.75
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$38.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$637.50
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$420.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
