Plan Description
This barndominium design floor plan is 1669 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

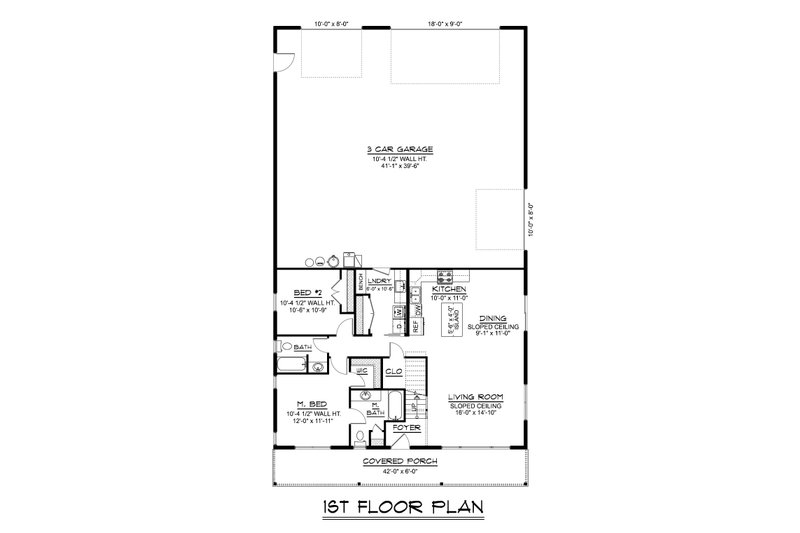

Floor Plan - Main Floor

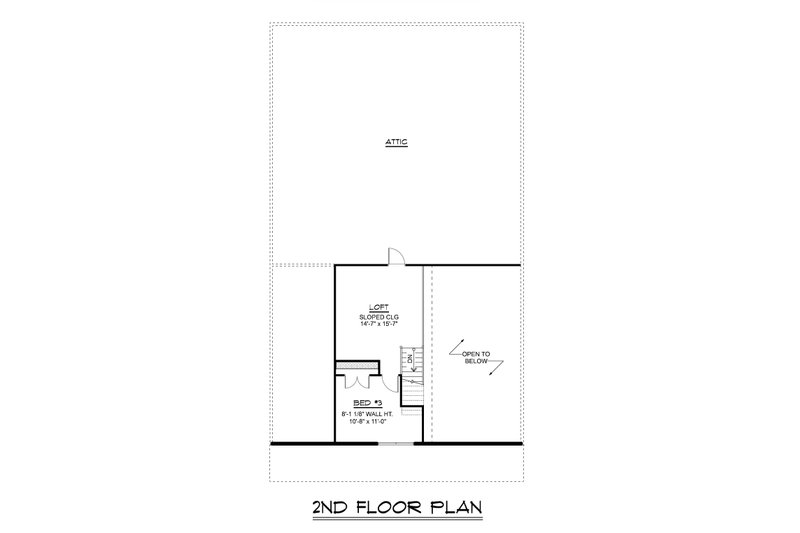

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 76'
Height: 21' 5"
Width: 42'
Area
Garage: 1680 sq/ft
Main Floor: 1260 sq/ft
Porch: 261 sq/ft
Upper Floor: 409 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details: Vault Ceiling
Main Ceiling: 10'
Upper Ceiling Ft: 8'
Roof
Primary Pitch: 6/12
Roof Framing: Truss
Roof Load: 30 psf
Secondary Pitch: 4/12
Exterior Wall Framing
Exterior Wall Finish: Vertical Siding
Framing: 2x6
Insulation: R-19
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Artist sketch of the front elevation and a plan sheet index
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing Room Dimensions, Wall Partitions, a Window and Door Schedule, Area Schedule, and General Notes
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details. * May be shown at 1/8" Scale.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the locations of lights, receptacles, switches, etc. throughout the dwelling with a legend.
- Mechanical Plan(s): Shows the suggested location of mechanical items like a water heater and furnace (reference only). Ductwork and HVAC systems not included.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Wall Sections for Porches, Main Structure, Garage, and Foundations (as Per Plan)
