Perfect for a narrow lot, this shingle-and-siding home is sure to please. With
Craftsman-style influence, this bungalow has plenty to offer. The foyer opens
directly into the gathering room, where a fireplace waits to add warmth and
cheer to every occasion. The formal dining room is defined by graceful pillars
and has a pass-through to the kitchen. U-shaped, the kitchen offers the
pleasure of no cross-room traffic, as well as a window over the sink. Upstairs,
two family bedrooms or make one a study share a full bath. The master
bedroom
suite offers a walk-in closet and a private bath with a dual-bowl vanity.
Floor Plans

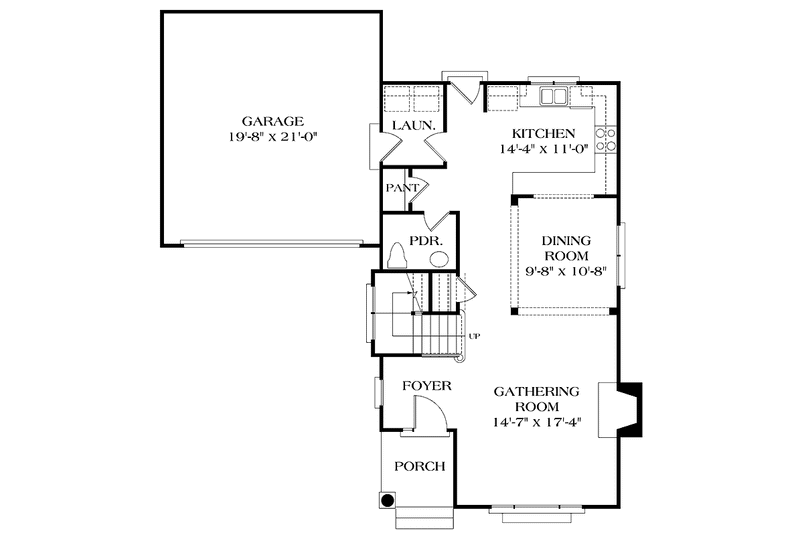

Floor Plan - Main Floor

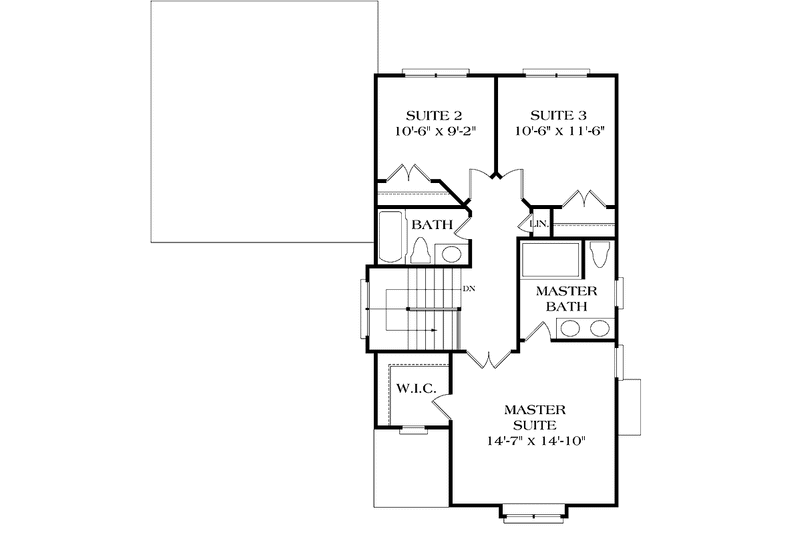

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 44' 6"
Height: 29'
Width: 43' 4"
Area
First Floor: 817 sq/ft height 10'
Garage: 436 sq/ft
Second Floor: 824 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch: 8:12
Roof Framing: Truss
Roof Type: Shingle
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Rooms
Dining Room:
103 sq/ft width 9' 8" x depth 10' 8"
Garage:
413 sq/ft width 19' 8" x depth 21'
Gathering Room:
252 sq/ft width 14' 7" x depth 17' 4"
Guest Suite 2:
96 sq/ft width 10' 6" x depth 9' 2"
Guest Suite 3:
120 sq/ft width 10' 6" x depth 11' 6"
Kitchen:
157 sq/ft width 14' 4" x depth 11'
Master Bedroom:
216 sq/ft width 14' 7" x depth 14' 10"
What's Included In This Plan Set
This plan typically includes:Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): Dimensioned and detailed foundation plan (type as listed on home plan description). Typical foundation details, wall sections, and cornice details necessary for construction.
- Floor Plan(s): Dimensioned and detailed floor plans
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Separate electrical plan (may be shown on floor plans in some cases). Shows the location of lights, receptacles, switches, etc.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
