PLAN #569-4

Photographs may show modified designs.

Save

Select Plan Set Options

What's included?
Subtotal
$800.00
Also order by phone: 1-800-528-8070
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Need an answer fast? Call us at 1-800-528-8070

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #569-4

Key Specs


1624
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description


Here’s a plan that really takes advantage of every square foot. The main living areas are open, with a snack bar that seats six and a two-way fireplace that warms the covered patio on its other side. Upstairs, the master suite features a large shower and a walk-in closet, while two secondary bedrooms use a hall bath. The pocket office provides a view while working.

Floor Plans

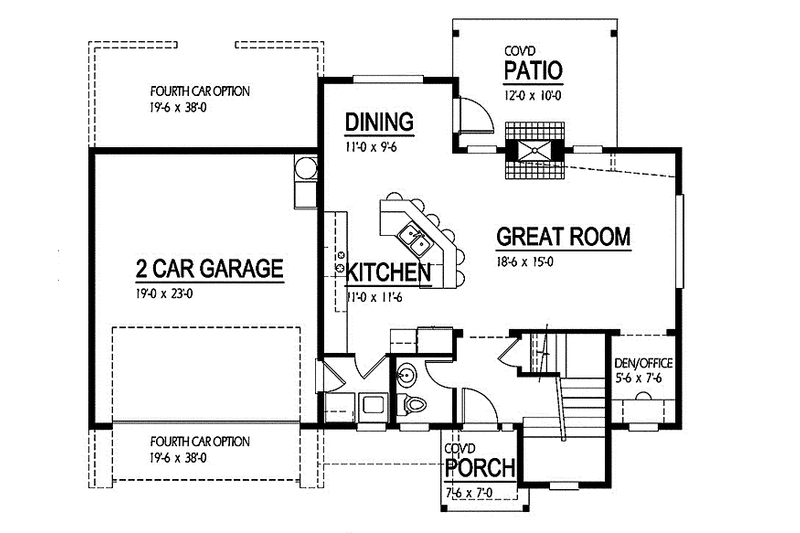

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #569-4

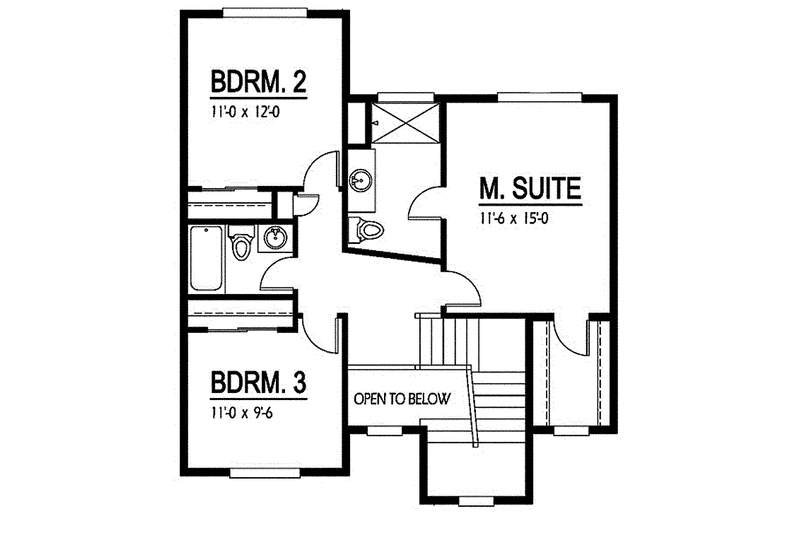

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #569-4

Full Specs & Features


Dimension
Depth : 35'
Height : 23' 11"
Width : 50' 6"
Area
First Floor: 856 sq/ft height 9'
Garage: 724 sq/ft height 9'
Porch: 52 sq/ft
Second Floor: 768 sq/ft height 9'
Roof
Roof Framing : Truss
Primary Pitch : 4:12
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Outdoor Fireplace
Rooms

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

104 sq/ft width 11' x depth 9' 6"

Den:

41 sq/ft width 5' 6" x depth 7' 6"

Dining Room:

104 sq/ft width 11' x depth 9' 6"

Garage:

437 sq/ft width 19' x depth 23'

Great Room:

277 sq/ft width 18' 6" x depth 15'

Kitchen:

126 sq/ft width 11' x depth 11' 6"

Master Suite:

172 sq/ft width 11' 6" x depth 15'

Patio:

120 sq/ft width 12' x depth 10'

Porch:

52 sq/ft width 7' 6" x depth 7'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
