PLAN 47-699
Key Specs
1475
sq ft
3
Beds
2
Baths
1
Floors
0
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
PLAN 47-699
Key Specs
1475
sq ft
3
Beds
2
Baths
1
Floors
0
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description
Full Specs & Features
Height : 23'
Width : 44'
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x6
Formal Dining Room
Covered Rear Porch
3rd BR Closet:
10 sq/ft width 5' x depth 2'
Basement Foundation:
572 sq/ft width 44' x depth 13'
Bedroom 2:
122 sq/ft width 12' x depth 10' 2"
Bedroom 2 Closet:
12 sq/ft width 6' 4" x depth 2'
Bedroom 3:
96 sq/ft width 9' 6" x depth 10' 2"
Bedroom 3 Closet:
12 sq/ft width 6' 4" x depth 2'
Breakfast Room:
105 sq/ft width 7' x depth 15'
Crawlspace Foundation:
572 sq/ft width 44' x depth 13'
Dining Room:
110 sq/ft width 10' x depth 11'
Foyer:
49 sq/ft width 4' 8" x depth 10' 6"
Hall Bathroom:
60 sq/ft width 7' 6" x depth 8'
Hall Closet:
9 sq/ft width 2' x depth 4' 10"
Kitchen:
61 sq/ft width 7' 10" x depth 7' 10"
Living Room:
19 sq/ft width 13' 6" x depth 1' 5"
Master Bathroom:
55 sq/ft width 5' x depth 11'
Master Bedroom:
165 sq/ft width 12' x depth 13' 10"
Master Closet:
17 sq/ft width 8' 8" x depth 2'
Porch - Front:
132 sq/ft width 29' 6" x depth 4' 6"
Porch - Rear:
46 sq/ft width 10' 4" x depth 4' 6"
Utility Room:
34 sq/ft width 5' 6" x depth 6' 3"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

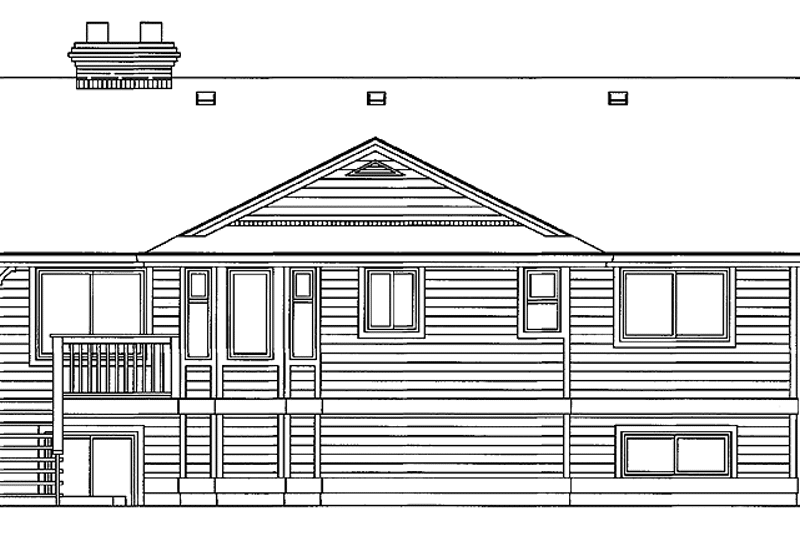

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

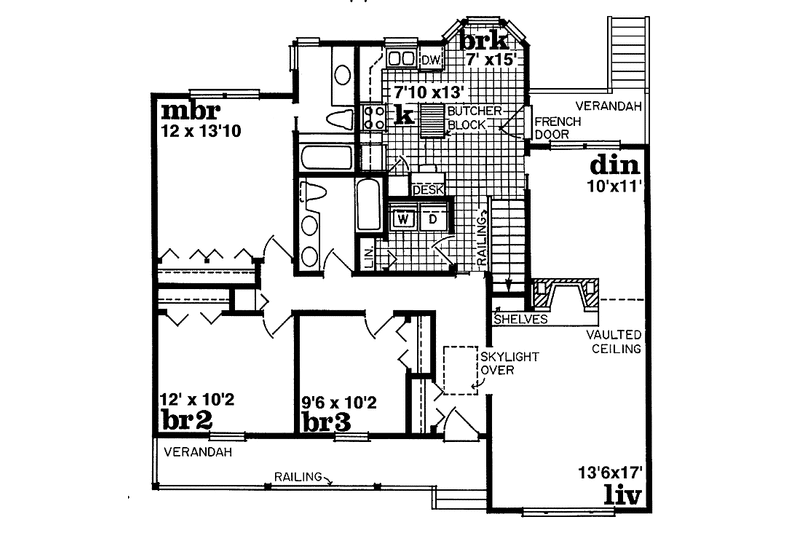

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| PDF Set : $693.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $792.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $891.00 |
8 printed plan sets mailed to you. |
| Reproducible Set : $891.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1386.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $247.50 |
Ideal for sloping lot, lower level of home partially underground. |
| Slab: $247.50 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $157.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $315.00 |
Additional Use License. |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Mirror Reversed Sets : $54.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
| Unlimited Use License : $630.00 |
Unlimited Use License. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
