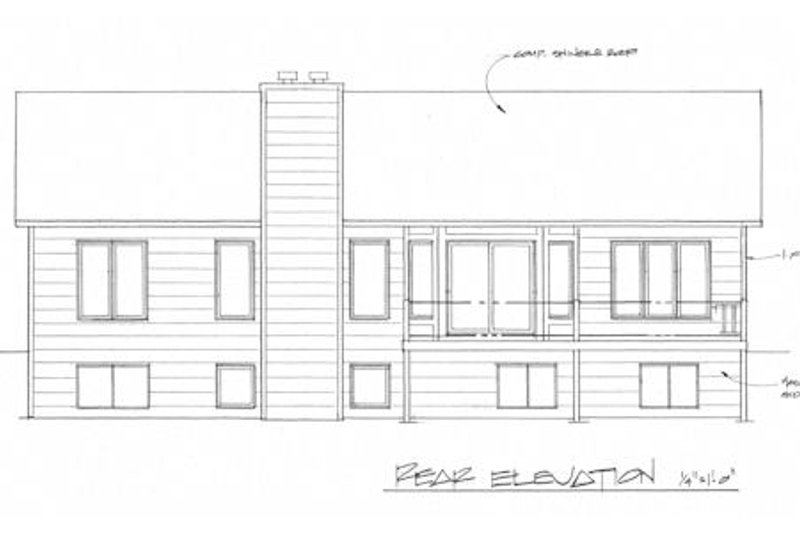

House Plan Design - Ranch Exterior - Rear Elevation Plan #58-164

Key Specs

1341
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $127.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $38.25/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $85.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $675.75

You save $119.25

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 58-164

Key Specs

1341
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

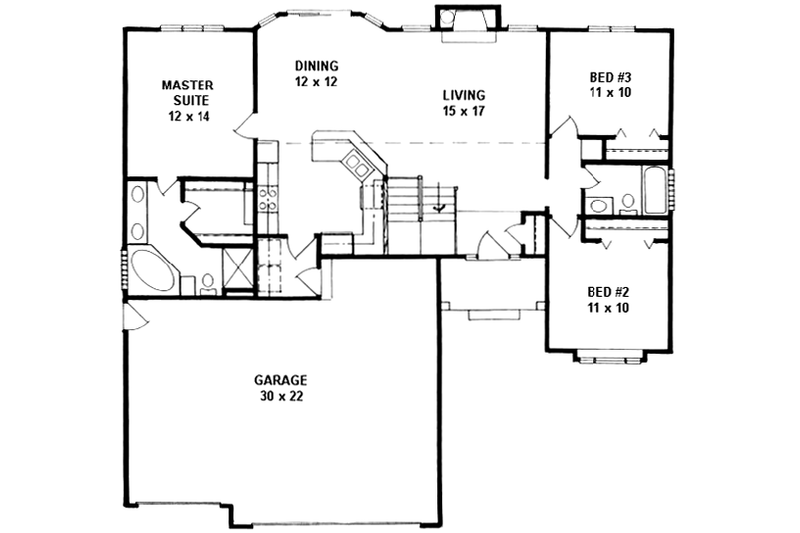

House Plan Design - Ranch Floor Plan - Main Floor Plan #58-164

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 50'
Height : 17'
Width : 52'

Area

Basement Unfinished: 1218 sq/ft
First Floor: 1341 sq/ft
Garage: 660 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted - Living, Dining & Kitchen9'- MBR & bath
Main Ceiling : 8'

Roof

Primary Pitch : 7:12
Roof Framing : Trusses

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room
Storage Area
Unfinished Future Space

Garage Features

Oversized Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Each set of plans include:

1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
Building Cross Section - Complete front to back cross section with basic framing details.

» See important information before purchasing.

Questions? Call 1-800-528-8070

Plan Set

PDF Set : $675.75	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $803.25	5 printed plan sets mailed to you.
Reproducible Set : $803.25	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
