Full Specs & Features
Height : 15' 6"
Width : 26'
Roof Framing : Conventional
Roof Type : Shingle
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Suited For Narrow Lot
110 sq/ft width 10' x depth 11'
110 sq/ft width 10' x depth 11'
114 sq/ft width 12' 8" x depth 9'
187 sq/ft width 15' x depth 12' 6"
105 sq/ft width 9' x depth 11' 8"
143 sq/ft width 11' x depth 13'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

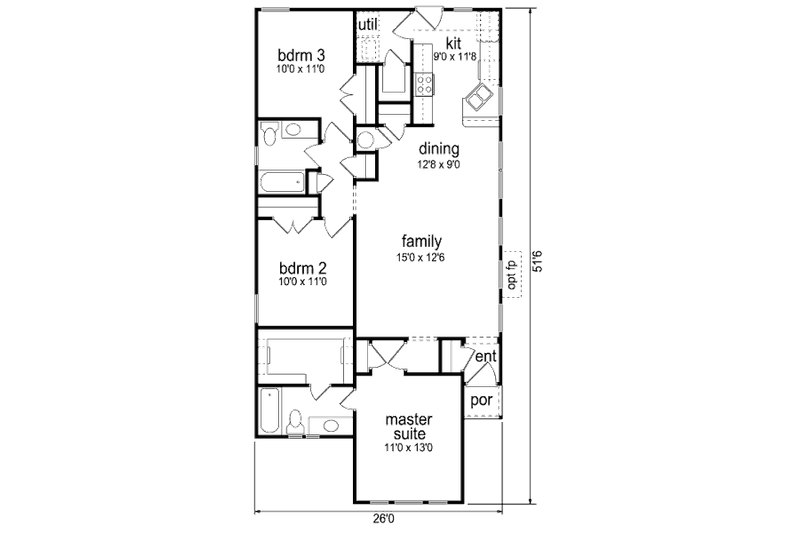

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

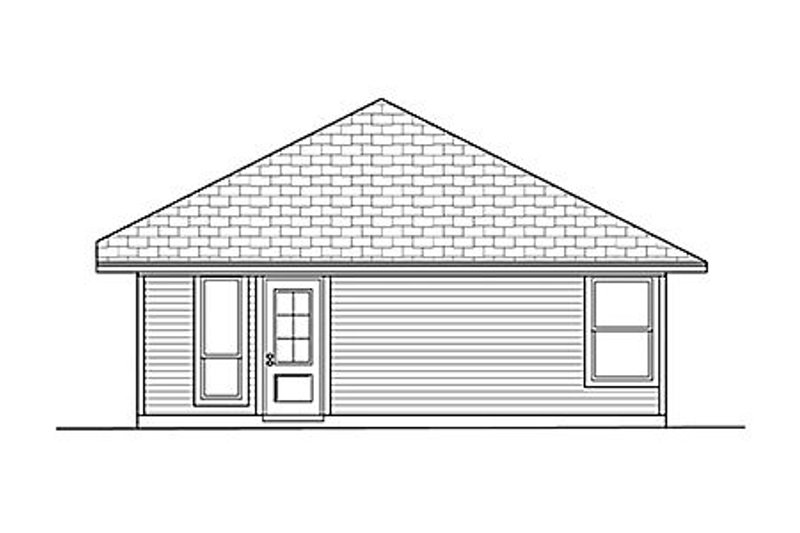

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
