PLAN 54-629
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

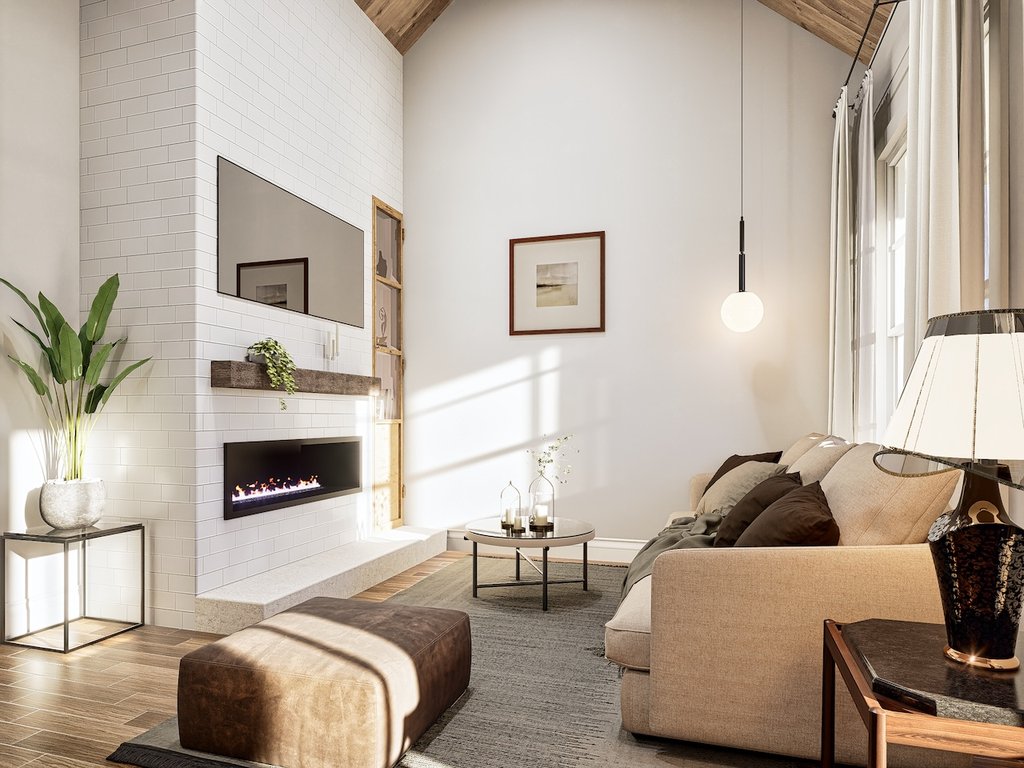

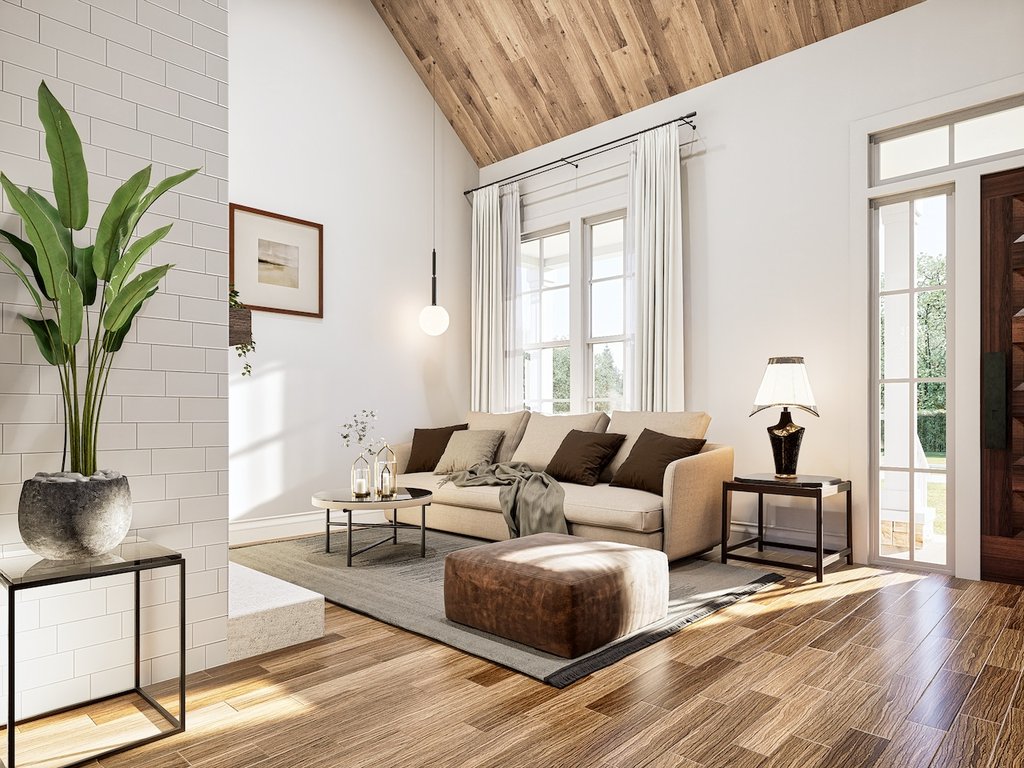

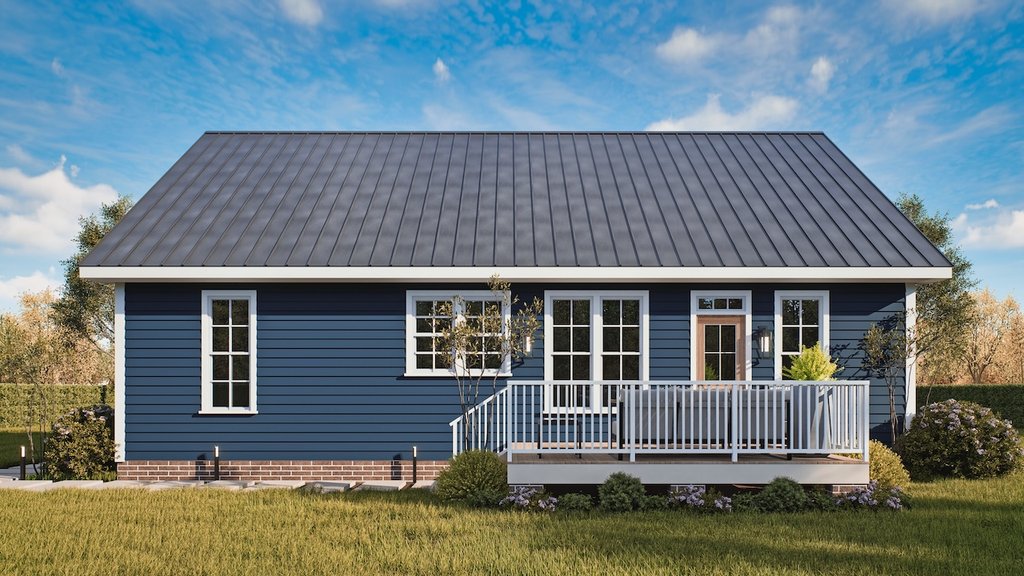

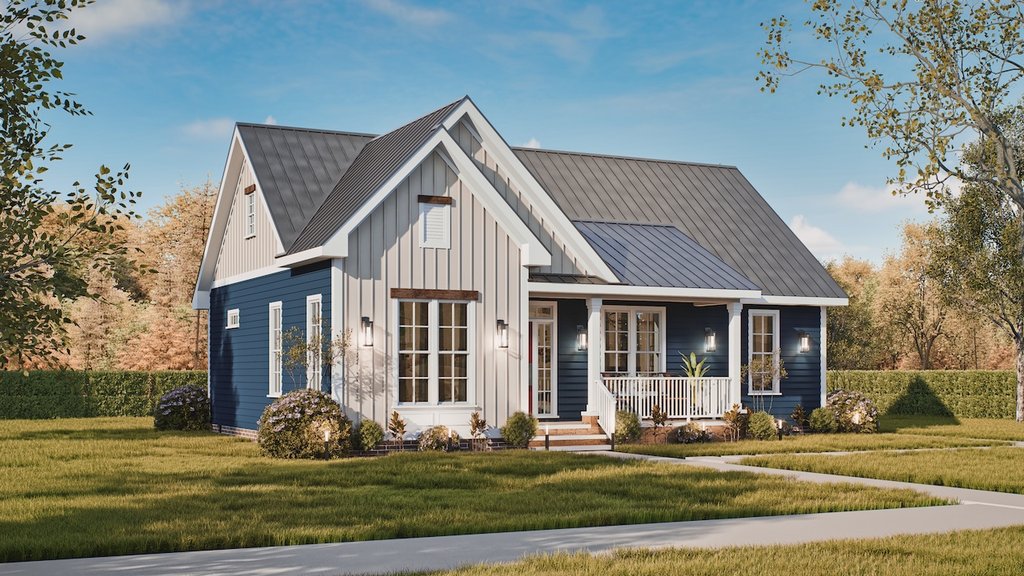

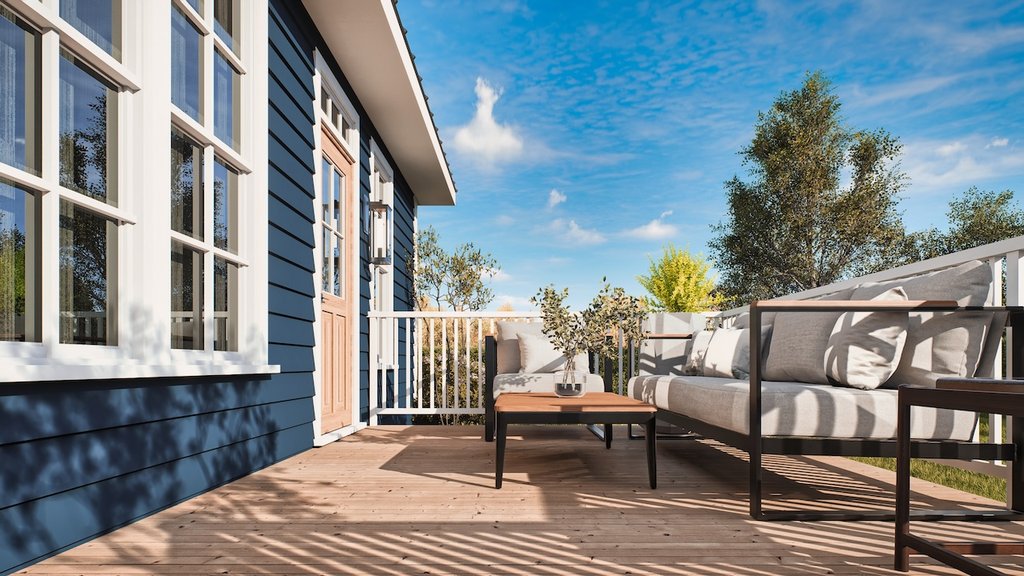

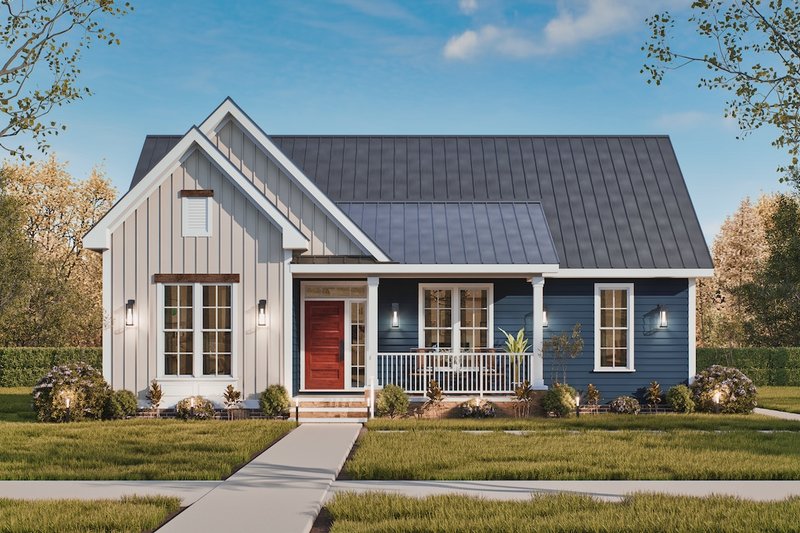

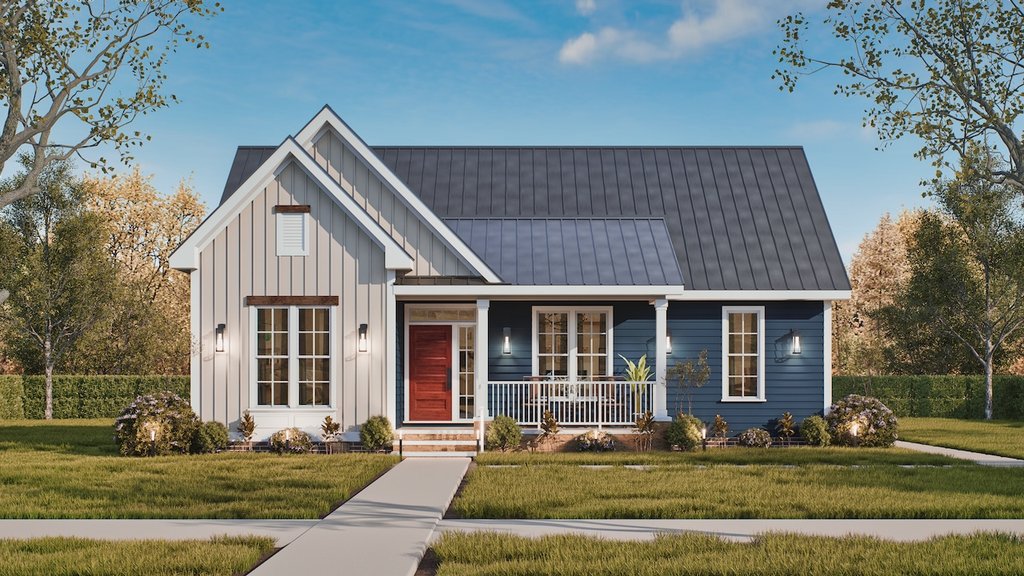

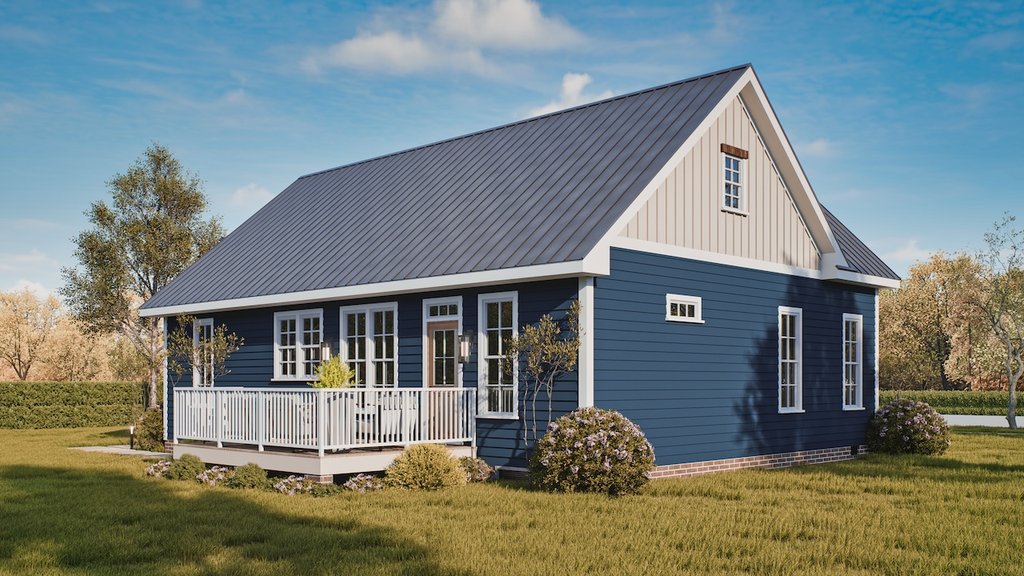

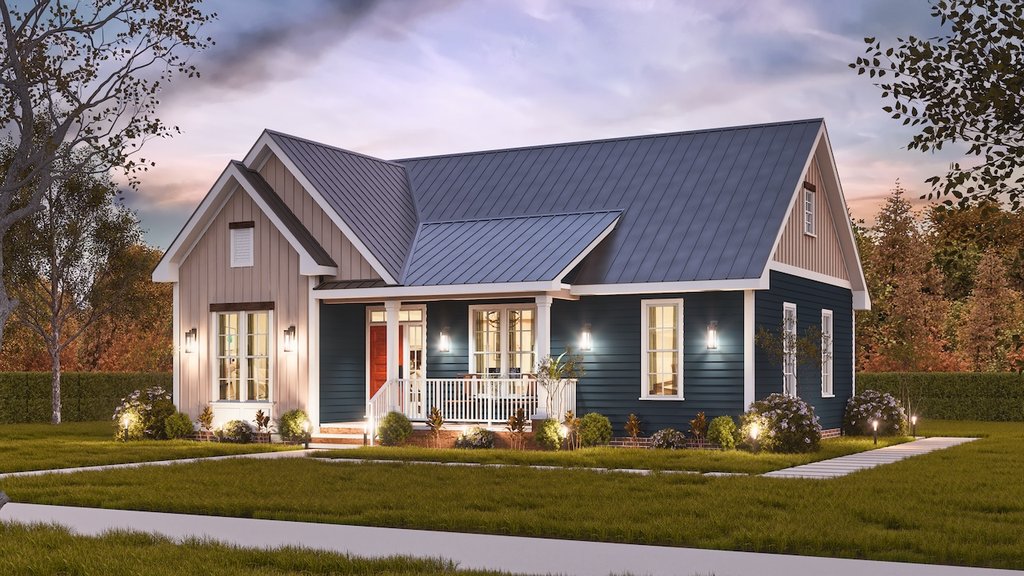

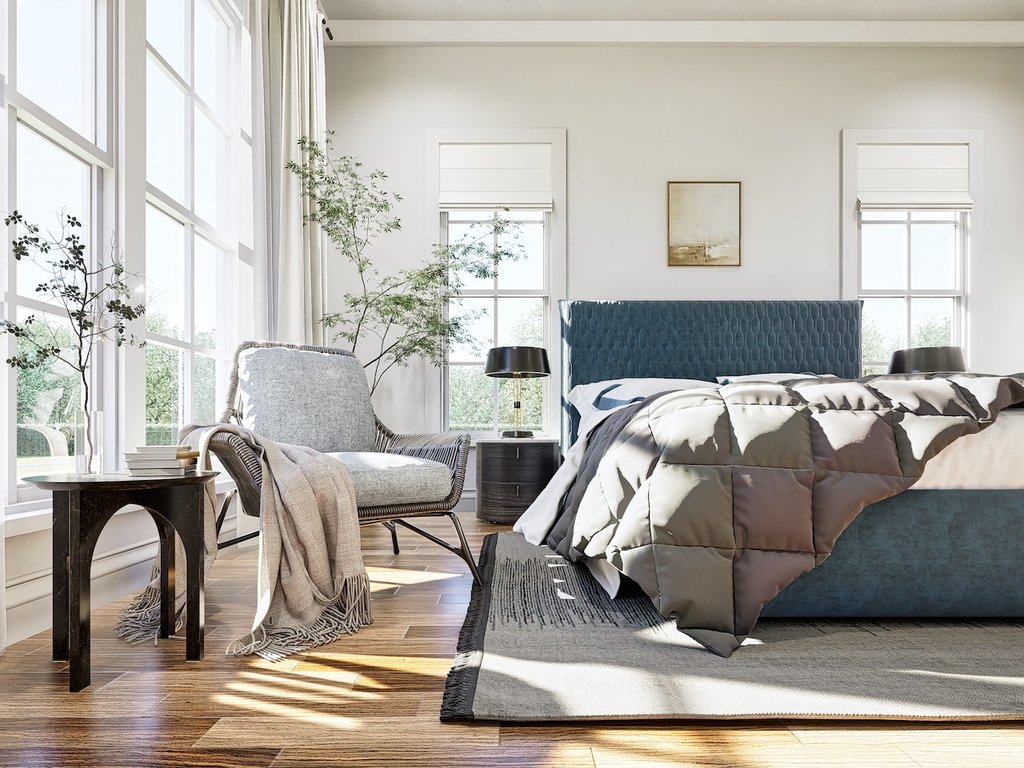

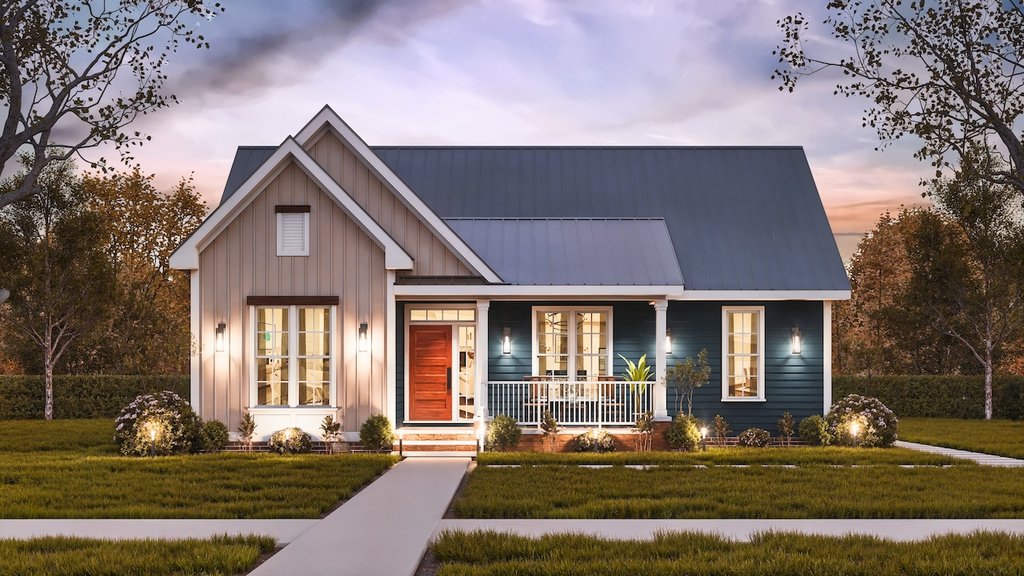

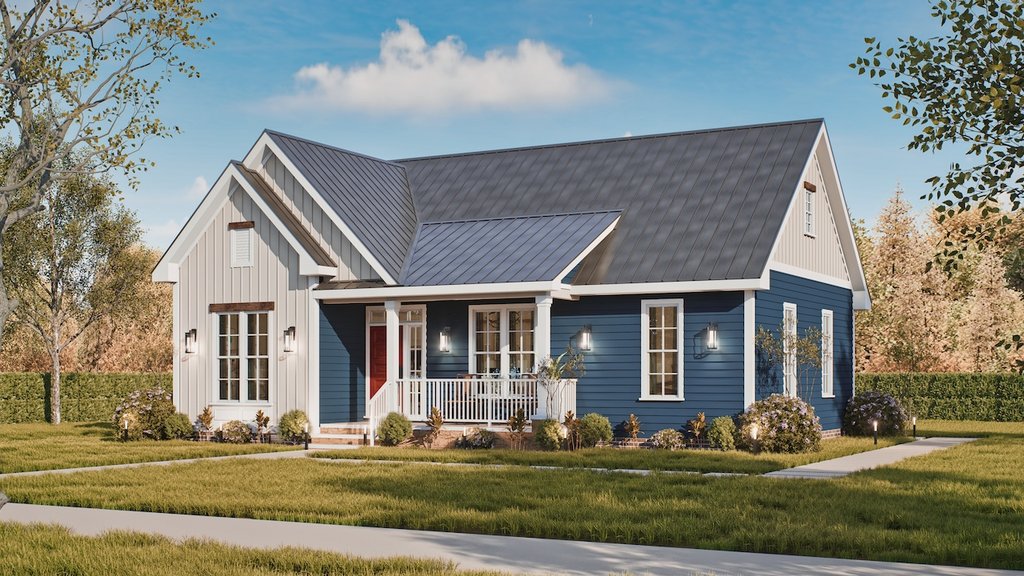

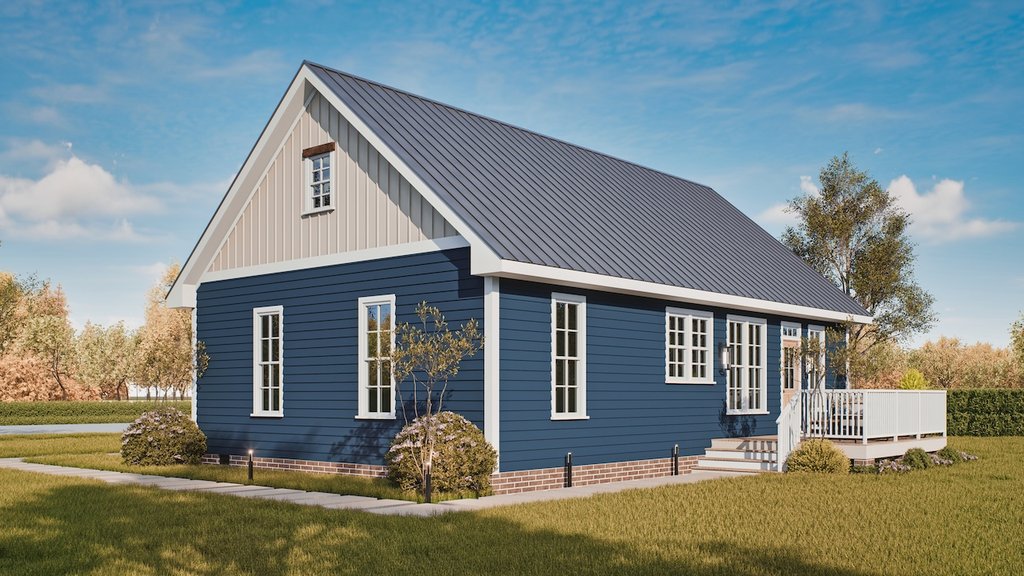

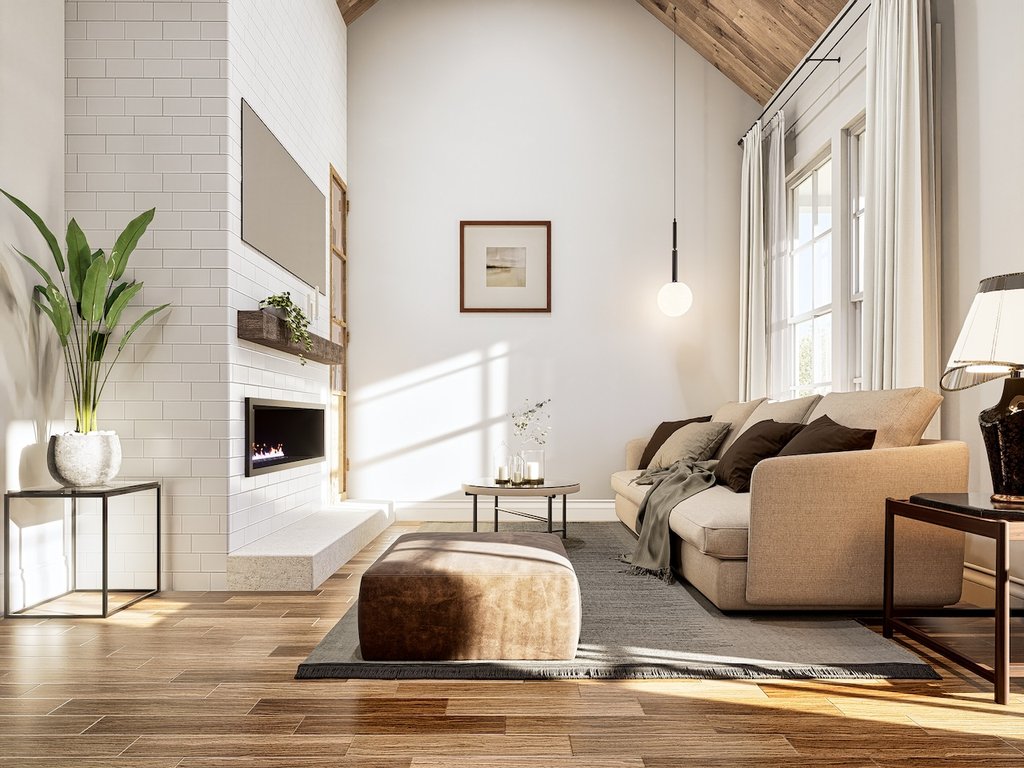

This charming one-story home combines comfort and functionality within its 1,209 sq. ft. of living space. Designed with an open-concept layout, the home features a spacious family room with a fireplace and soaring 15-foot vaulted ceilings, enhancing the sense of space and airiness. The first-floor ceilings stand at 9 feet, with the bedrooms featuring 10-foot ceilings for added comfort. The three-bedroom, two-bathroom layout provides ample room for family living, with the primary suite offering privacy and convenience. A covered front porch and rear deck extend the living space outdoors, perfect for relaxation or entertaining. Built with 2x4 wall framing and stick-framed roofing, this thoughtfully designed home balances efficiency, style, and comfort in a compact yet livable footprint.
Read More
Floor Plans

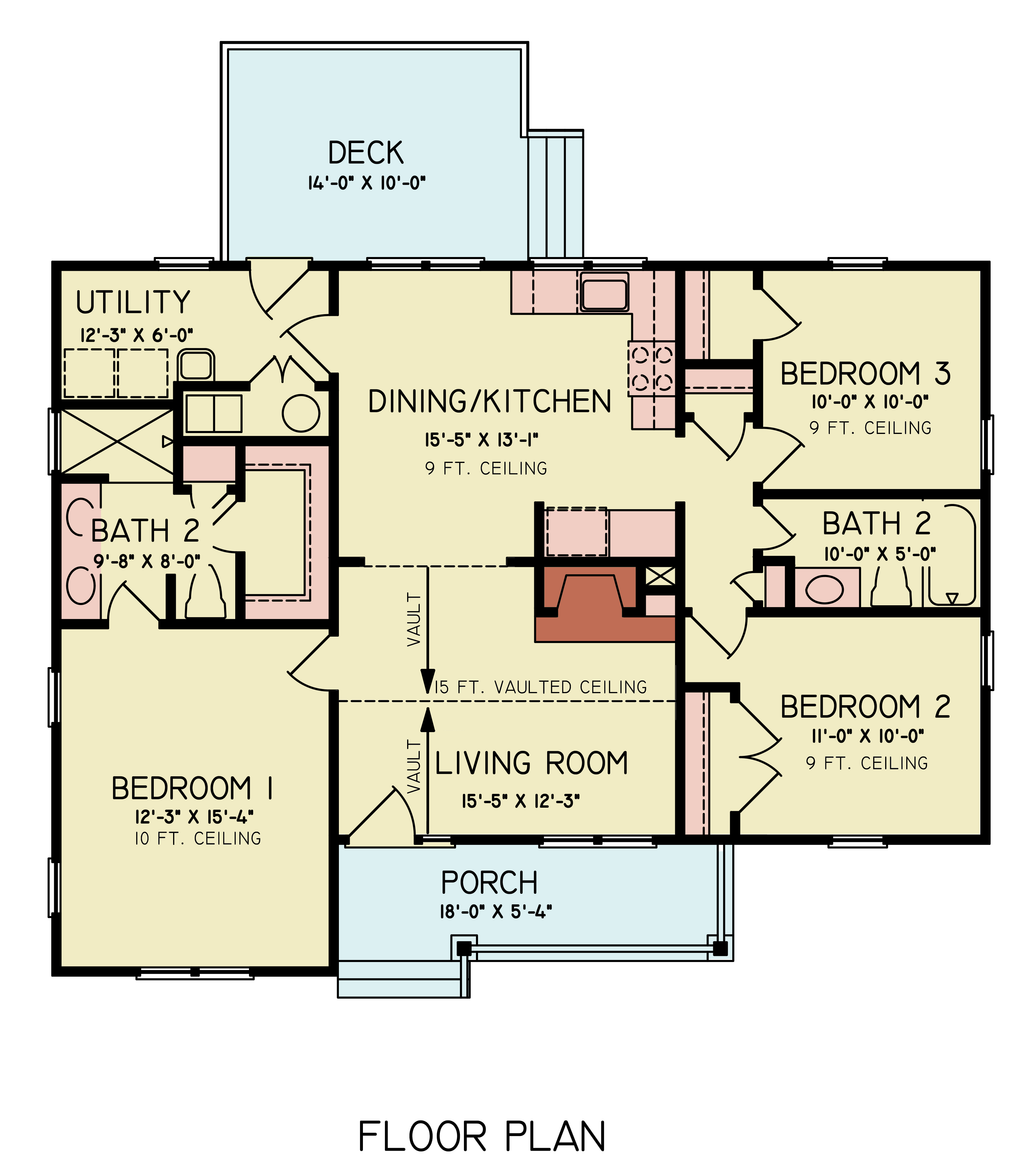

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42' 6"
Height : 21' 5"
Width : 42' 8"
Area
Decks : 140 sq/ft
Main Floor : 1209 sq/ft
Porch : 96 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Stick
Roof Type : Shingles
Exterior Wall Framing
Exterior Wall Finish : Board & Batten, Horizontal Siding
Framing : 2x4
Insulation : PER IRC REQUIREMENTS
Bedroom Features
Main Floor Bedrooms

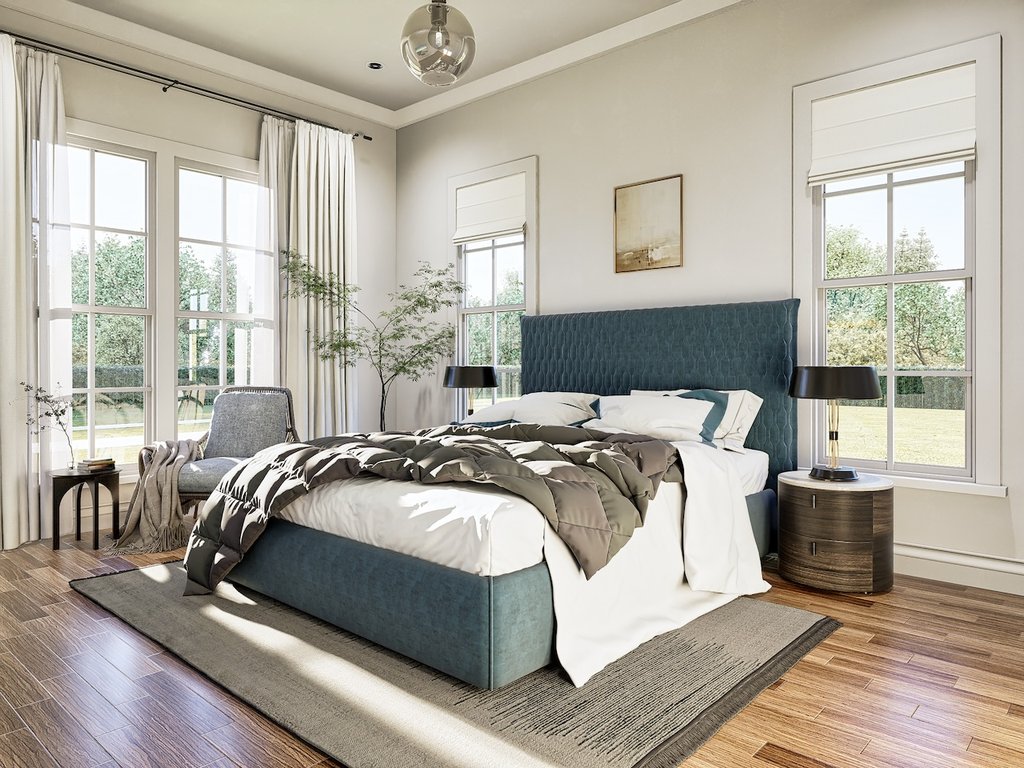

Main Floor Master Bedroom
Walk In Closet
Kitchen Features

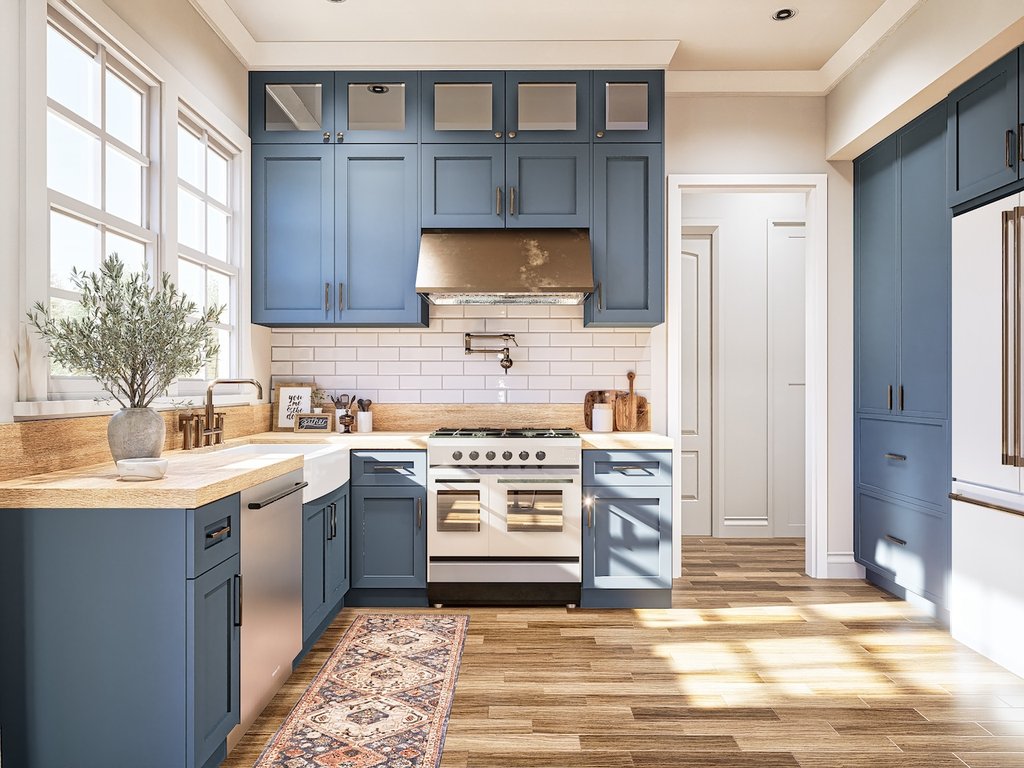

Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room

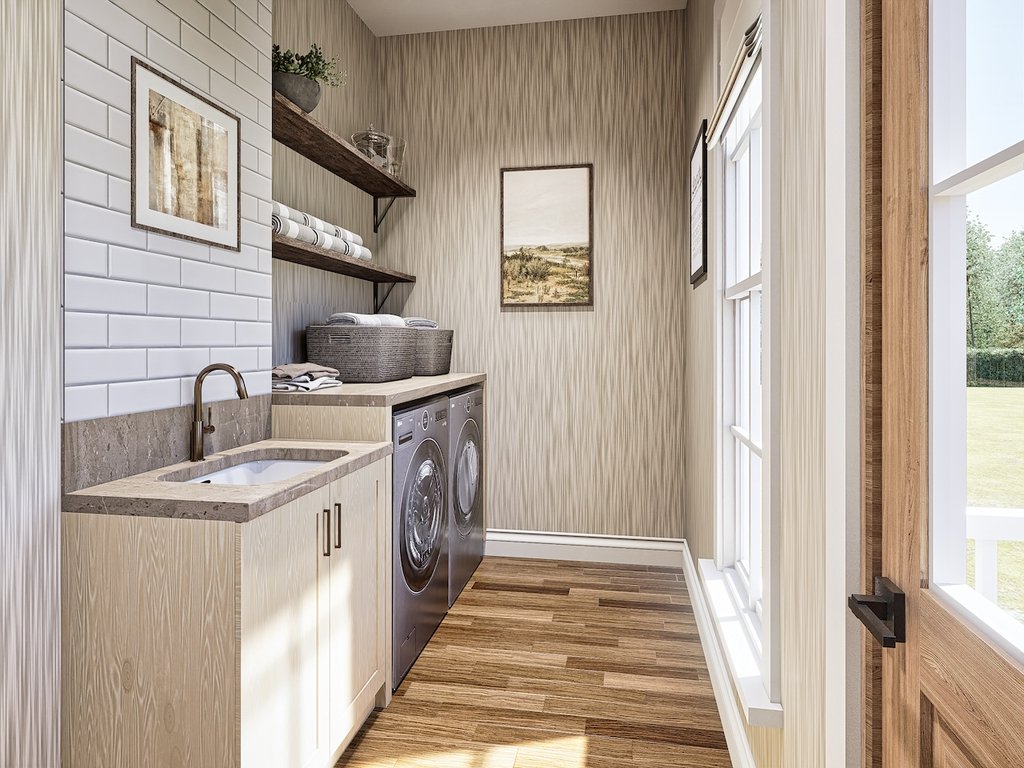

Main Floor Laundry
Outdoor Spaces
Balcony
More
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$973.25
$973.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1695.75
$1695.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$255.00
$255.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$297.50
$297.50
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$191.25
$191.25
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
