PLAN 27-477
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

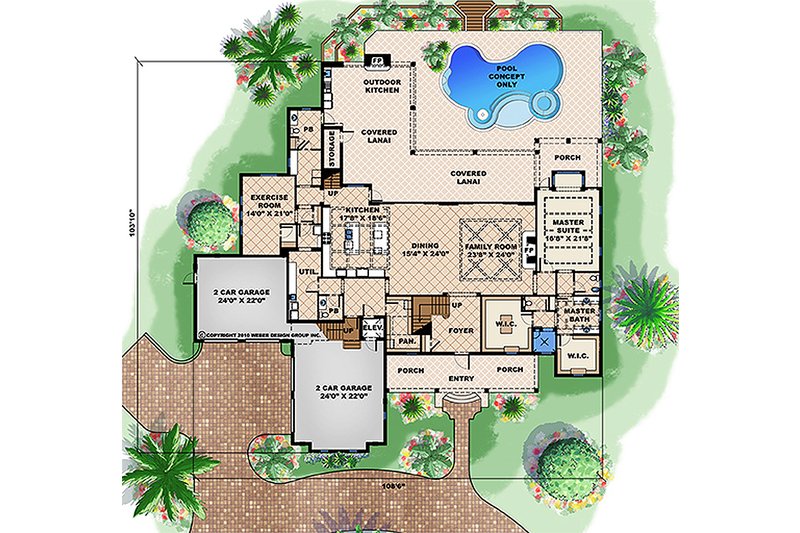

Floor Plan - Main Floor

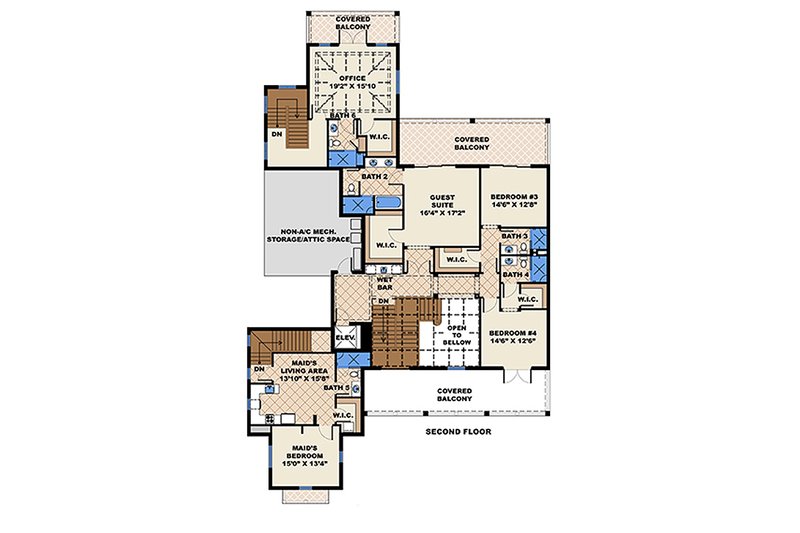

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 103' 10"
Height: 30'
Width: 108' 6"
Area
Decks: 871 sq/ft
Garage: 1398 sq/ft
Main Floor: 3988 sq/ft
Patios: 1488 sq/ft
Upper Floor: 2793 sq/ft
Ceiling
Ceiling Details: Coffer, vault, flat
Garage Ceiling: 10'
Main Ceiling: 12'
Upper Ceiling Ft: 23'
Roof
Primary Pitch: 8:12
Roof Framing: Manufactured Trusses
Roof Type: Metal
Exterior Wall Framing
Exterior Wall Finish: siding
Framing: CMU
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Front Entry Garage
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
- Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
- Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
Plan Set
$5000.00
$5500.00
Foundation
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
