Plan Description
This, two-story family home embraces many unique features.
Stylish front steps lead to a veranda with large double-entry front
doors. As you enter the grand foyer, you are treated to a magnificent
view of the pool area and beyond through the large pocket sliding-glass
doors featured in the living room. A lovely fireplace and built-in
shelves grace one wall of the living room. As you pass through the
arched opening situated next to a walk-in wet-bar, you enter the
over-sized family room with built-in entertainment center, and a second
fireplace. Large pocket-sliders offer access to the sizable covered
lanai and outdoor kitchen area. The spacious master suite includes a
large sitting area, providing a perfect spot for relaxation away from
activities of the rest of the house. The luxurious master bath features
an over-sized tub as the focal point of the room as well as a large
dual-head shower area. Two huge walk-in closets and his-and-her water
closets complete this outstanding bathroom design. The study with
built-in bookshelves, large guest-bedroom suite, powder room, pool bath,
utility room, and two separate two-car garages complete the first floor
of this superb home. Ride the elevator or climb the grand staircase to
the second floor where you will step onto a bridged walkway offering an
outstanding view looking out over the pool and lanai area. A media/game
room and three large bedroom suites, each with their own bath give this
exceptional design unlimited potential.
Floor Plans

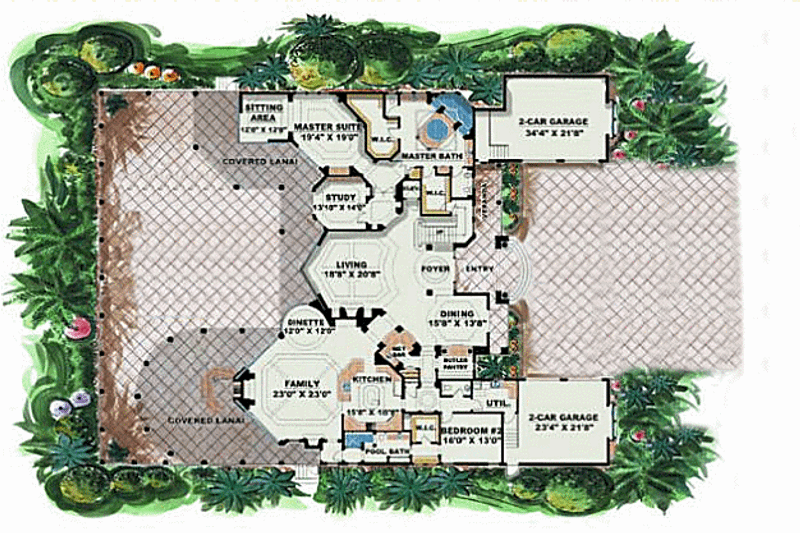

Floor Plan - Main Floor

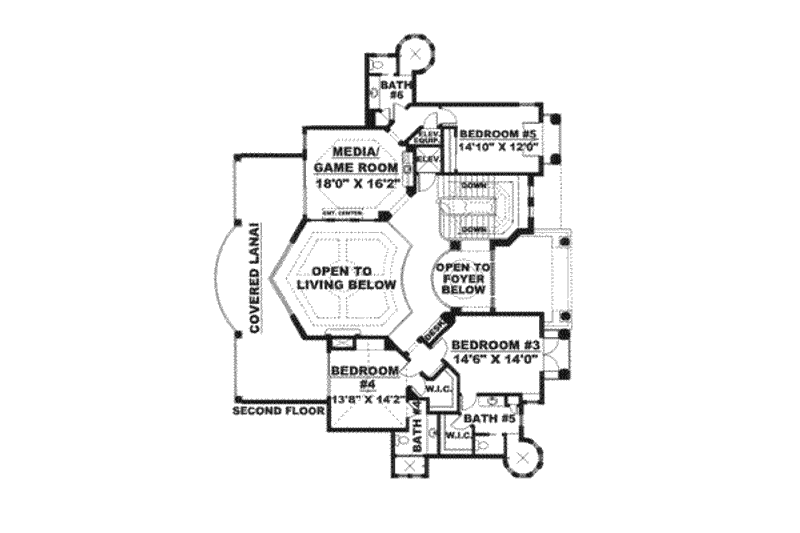

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 134'
Height : 43'
Width : 103'
Area
Main Floor : 5060 sq/ft
Upper Floor : 1720 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Exterior Wall Framing
Framing : Concrete block
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Storage Area
Garage Features
Side Entry Garage
Split Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
- Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
- Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
