Plan Description

This unique estate from the Sater Design Collection won an American Residential Design Award in the Custom Luxury category. Asymmetrical rooflines and stunning stucco walls announce an unrestrained interior that encourages the good life. The entry opens to the grand hall--an open, light-filled retreat defined by massive columns and wide views. The heart of the plan is a living room set off by spectacular views of the veranda and luxurious pool area. The gourmet kitchen overlooks the formal dining room and the vaulted leisure room. The secluded master wing provides a separate sitting room with its own morning kitchen and access to a private area of the veranda. A rambling master bath surrounds a step-up whirlpool tub and offers a garden view. Upstairs, a spacious sitting loft leads outdoors to a wide deck. Each of two spacious guest suites provides a walk-in closet and luxury bath.

Floor Plans

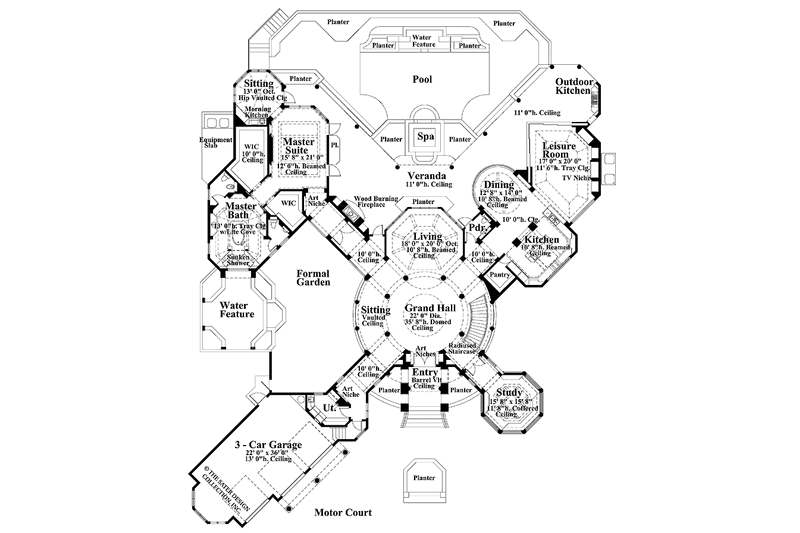

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #930-256

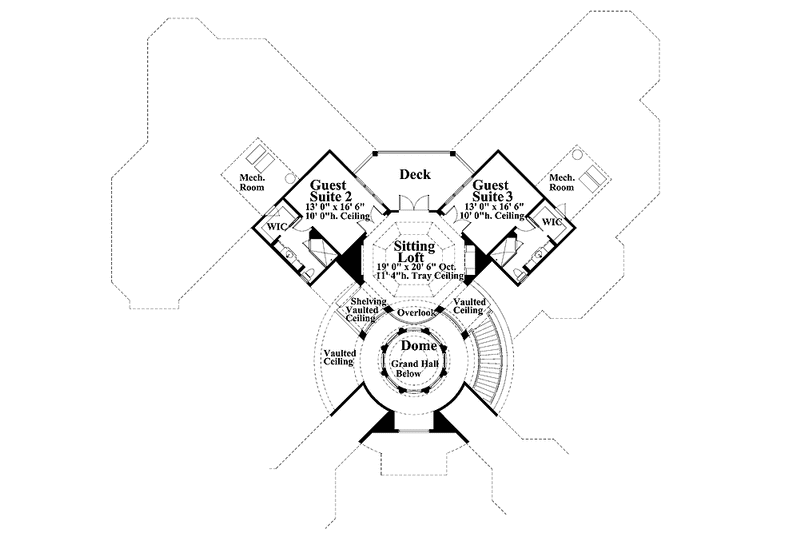

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #930-256

Full Specs & Features

Depth : 131' 7"
Height : 41'
Width : 117' 2"
First Floor: 4715 sq/ft
Second Floor: 1209 sq/ft
Roof Framing : Combination Truss/Conventional
Primary Pitch : 7:12
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Storage Area
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
Screened Porch
Outdoor Fireplace

3rd BR Closet:

37 sq/ft width 4' 8" x depth 8' 1"

Bathroom 2:

88 sq/ft width 8' x depth 11'

Bathroom 3:

88 sq/ft width 8' x depth 11'

Bedroom 2:

214 sq/ft width 13' x depth 16' 6"

Bedroom 2 Closet:

37 sq/ft width 4' 8" x depth 8' 1"

Bedroom 3:

214 sq/ft width 13' x depth 16' 6"

Bedroom 3 Closet:

37 sq/ft width 4' 8" x depth 8' 1"

Bonus Room - Finished:

389 sq/ft width 19' x depth 20' 6"

Dining Room:

177 sq/ft width 12' 8" x depth 14'


71 sq/ft width 9' 4" x depth 7' 8"


792 sq/ft width 22' x depth 36'

Gathering Room:

340 sq/ft width 17' x depth 20'


784 sq/ft width 22' x depth 35' 8"


288 sq/ft width 19' 8" x depth 14' 8"

Living Room:

360 sq/ft width 18' x depth 20'

Master Bathroom:

302 sq/ft width 14' 3" x depth 21' 3"

Master Bedroom:

329 sq/ft width 15' 8" x depth 21'


245 sq/ft width 15' 8" x depth 15' 8"

Utility Room:

71 sq/ft width 6' 6" x depth 11'

What's Included In This Plan Set

Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection.

Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

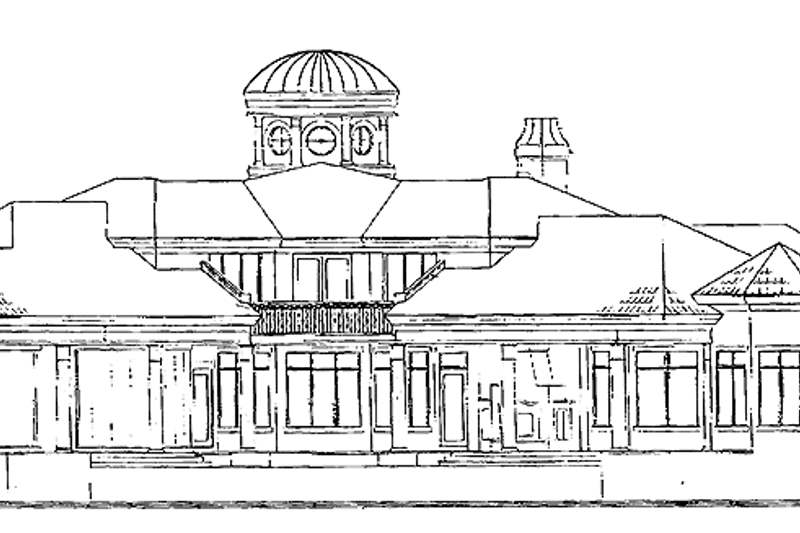

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
