PLAN 930-323
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description

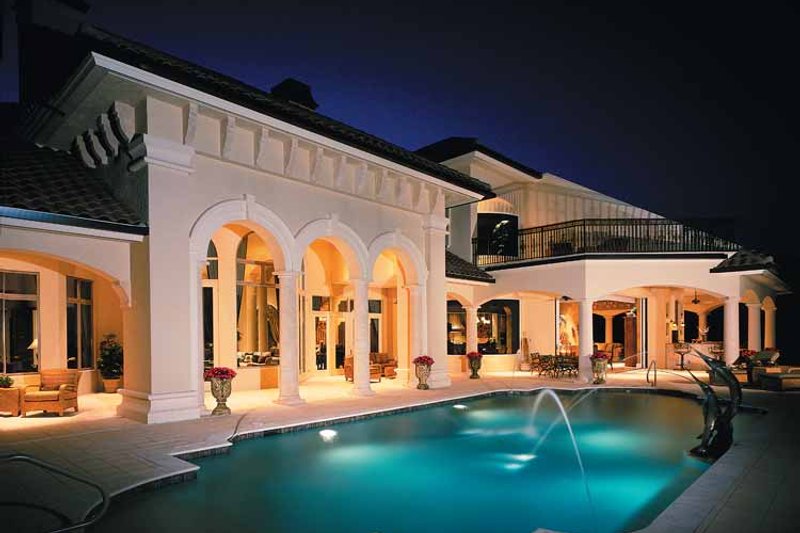

This grand domicile impresses from every angle. Decorative arches complement the design both inside and out. The prominent rear veranda and outdoor kitchen signify the focus on outdoor living. Posh interior amenities include a two-sided fireplace that shares warmth between the living room and study. Well-appointed guest suites pamper visitors. Don't miss the lavish master suite. This home won the Honor Award of Excellence at the 2002 American Residential Design Awards.
Floor Plans

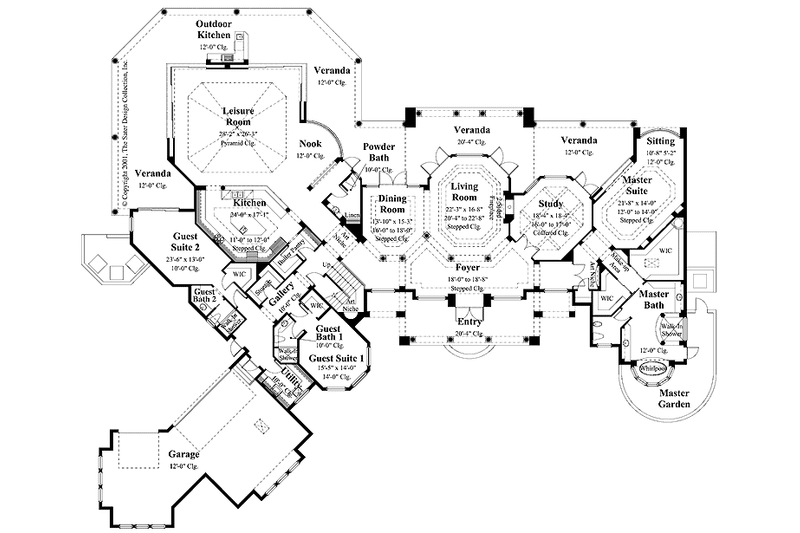

Floor Plan - Main Floor

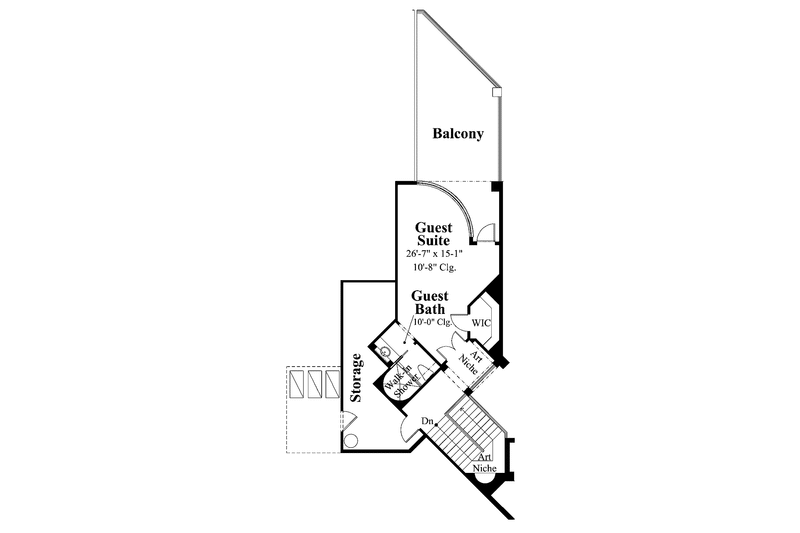

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 117' 3"
Height: 32' 5"
Width: 132' 8"
Area
Deck: 313 sq/ft
First Floor: 5307 sq/ft
Garage: 1002 sq/ft
Porch: 2104 sq/ft
Second Floor: 497 sq/ft
Storage: 198 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch: 7:12
Roof Framing: Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish: Stucco
Framing: Block
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Outdoor Spaces
Courtyard
Rooms
Dining Room:
210 sq/ft width 13' 10" x depth 15' 3"
Guest Suite 1:
228 sq/ft width 15' 5" x depth 14' 10"
Guest Suite 2:
305 sq/ft width 23' 6" x depth 13'
Leisure Room:
739 sq/ft width 28' 2" x depth 26' 3"
Living Room:
370 sq/ft width 22' 3" x depth 16' 8"
Master Bedroom:
303 sq/ft width 21' 8" x depth 14'
Study:
336 sq/ft width 18' 4" x depth 18' 4"
What's Included In This Plan Set
Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.
» See important
information before purchasing.
- Cover Sheet: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference.
- Foundation Plan(s): This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. Important: actual structural information should be obtained by a locally licensed engineer for your specific site location.
- Floor Plan(s): This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.
- Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.
- Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.
- Overhead Roof Plan(s): The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.
- Cross Section(s): This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.
- Electrical Plan(s): This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
- Construction Notes / Detail(s): This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable). Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Framing Detail(s): Homes with a basement or crawlspace will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.
- Other Note(s): Reflected ceiling plan: this designer's most distinguishable feature is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.
- Site Plan(s): The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$4178.70
$4178.70
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$7835.40
$7835.40
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Stem Wall Foundation:
$0.00
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Framing
Block:
$0.00
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)
Wood 2x6:
$517.50
$517.50
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$337.50
$337.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$58.50
$58.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$148.50
$148.50
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$35.10
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
