Plan Description
Welcome to a luxurious and spacious floor plan spanning an impressive 5382 square feet across two stories, offering an exquisite living experience tailored to your every need. With five bedrooms, five and a half bathrooms, and a generous three-car garage, this meticulously designed residence provides ample space for comfort and convenience. As you approach the home, you'll be greeted by its striking exterior, featuring classic architectural details and welcoming covered decks that offer a perfect spot to enjoy the serene surroundings. The main floor boasts an open-concept layout, seamlessly connecting the living room, dining area, and kitchen, creating a spacious and inviting atmosphere ideal for both relaxing with family and entertaining guests. Large windows allow natural light to flood the space, enhancing the bright and airy ambiance. Adjacent to the kitchen, a versatile flex space can be used as a home office, playroom, or formal dining room, depending on your needs and preferences. With its flexible layout, this space offers endless possibilities for customization to suit your lifestyle. Mainfloor, the luxurious primary suite awaits, offering a peaceful retreat with a spacious bedroom with dual walk-in closets. Four additional bedrooms provide comfortable accommodations for family members or guests, each thoughtfully designed with ample closet space and easy access to a shared bathroom. The lower level of the home features additional living space, perfect for use as a recreation room, gym, or sauna, offering endless possibilities for relaxation and enjoyment. Outside, a covered patio provides the perfect spot for outdoor entertaining and relaxation, with plenty of space for al fresco dining, lounging, and enjoying the beautiful surroundings. With its luxurious amenities, thoughtful design, and spacious living areas, this floor plan offers the perfect combination of comfort and style. Welcome home to a life of luxury and relaxation in your own personal oasis.
Floor Plans

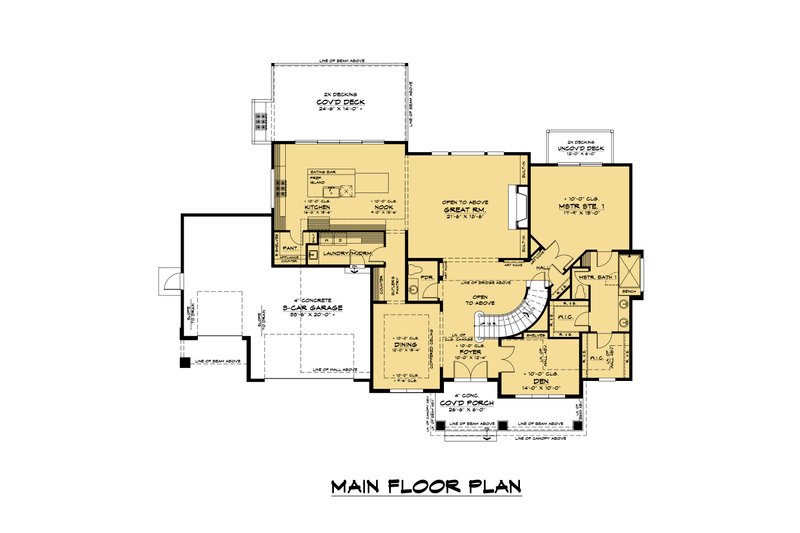

Floor Plan - Main Floor

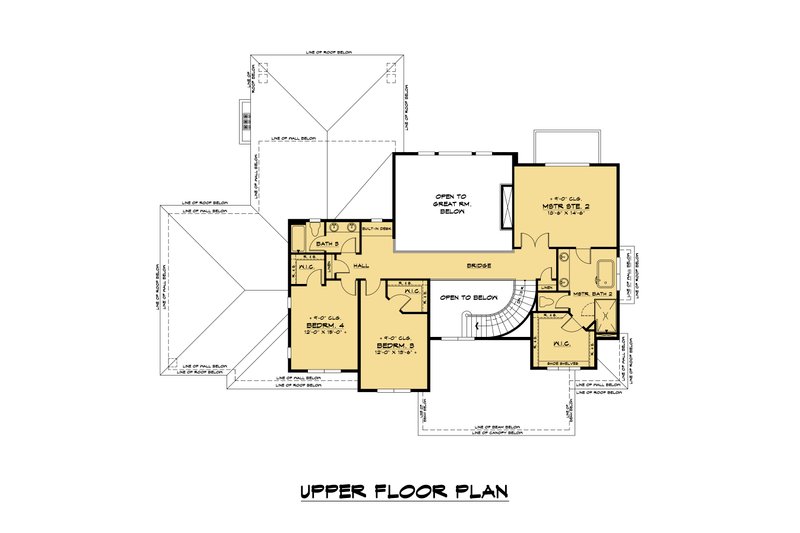

Floor Plan - Upper Floor

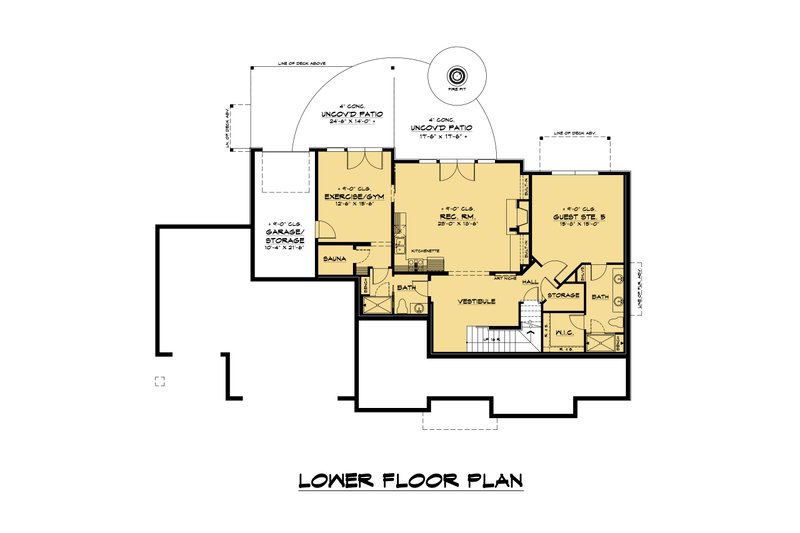

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 83'
Height: 35' 8"
Width: 66'
Area
Decks: 443 sq/ft
Garage: 758 sq/ft
Lower Floor: 1562 sq/ft
Main Floor: 2395 sq/ft
Patios: 558 sq/ft
Porch: 57 sq/ft
Upper Floor: 1425 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details: Great room ceiling is open to above and dining room ceiling is coffered.
Garage Ceiling: 11' 5"
Lower Ceiling: 9'
Main Ceiling: 10'
Upper Ceiling Ft: 9'
Roof
Primary Pitch: 4/12
Roof Framing: Truss
Roof Load: 25
Roof Type: Composition & Metal
Secondary Pitch: 2/12
Exterior Wall Framing
Exterior Wall Finish: Lightweight Brick, Siding, and Hardie Panels
Framing: 2X6
Insulation: R21
Bedroom Features
2 Master Suites
Guest Suite
Lower Level Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Split Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
Not Included
» See important
information before purchasing.
Plans are typically drawn to ¼” scale and include:
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers. 3D Rendering and Project Information.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Architectural or Engineering Stamp: Handled locally when required.
- Site Plans: Handled locally if needed.
- Mechanical / Plumbing Drawings: Designated by your builder, subcontractors, or engineer once systems are chosen and locations for water, power, and waste are determined.
- Electrical Drawings: Available as an add-on for $165.00 with a PDF or CAD order.
- Energy Calculations: Handled locally if required for energy evaluation.
Important: Foundation and framing plans may be shown as reference only. Your builder and/or engineer will determine the specific requirements based on your soils, site conditions, and local codes.
