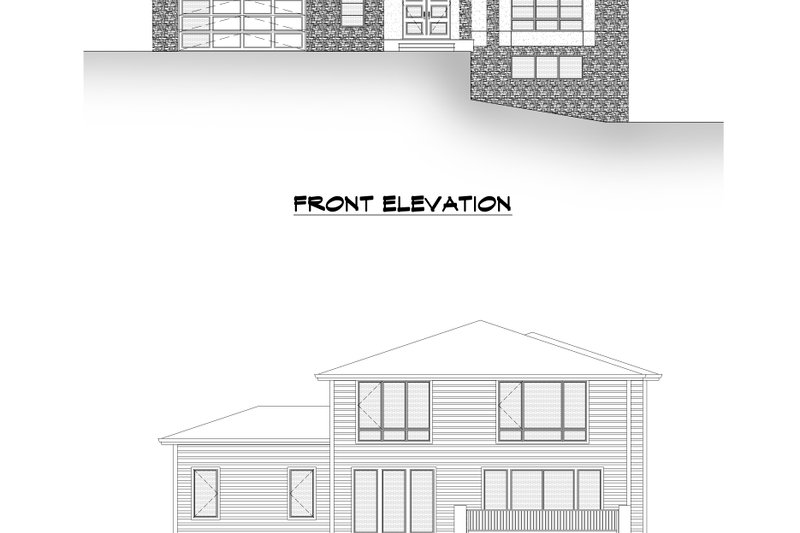

House Plan Design - Exterior - Other Elevation 2 for Contemporary House Plan #1066-117 - 6 bed, 4.5 bath

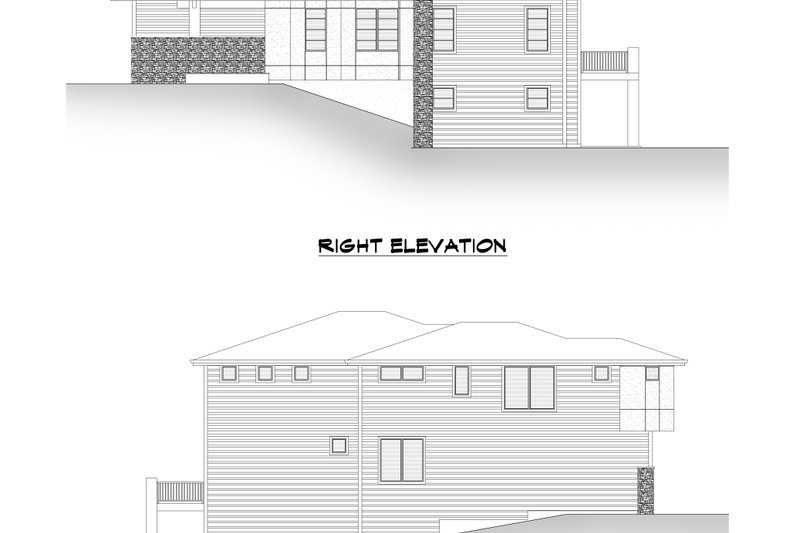

House Plan Design - Exterior - Other Elevation 3 for Contemporary House Plan #1066-117 - 6 bed, 4.5 bath

House Plan Design - Floor Plan - Main Floor for Contemporary House Plan #1066-117 - 6 bed, 4.5 bath

House Plan Design - Floor Plan - Upper Floor for Contemporary House Plan #1066-117 - 6 bed, 4.5 bath

House Plan Design - Floor Plan - Lower Floor for Contemporary House Plan #1066-117 - 6 bed, 4.5 bath

Jump to:
All (9)
Exterior (6)
Floor plans (3)

Get Personalized Help

Home > Style > Contemporary

Key Specs

5200
sq ft

6
Beds

4.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$250.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$495.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$350.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$2600.00

Also order by phone: 1-800-528-8070

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTB2026

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1066-117

Home > Style > Contemporary

Key Specs

5200
sq ft

6
Beds

4.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This contemporary design floor plan is 5200 sq ft and has 6 bedrooms and 4.5 bathrooms.

Floor Plans

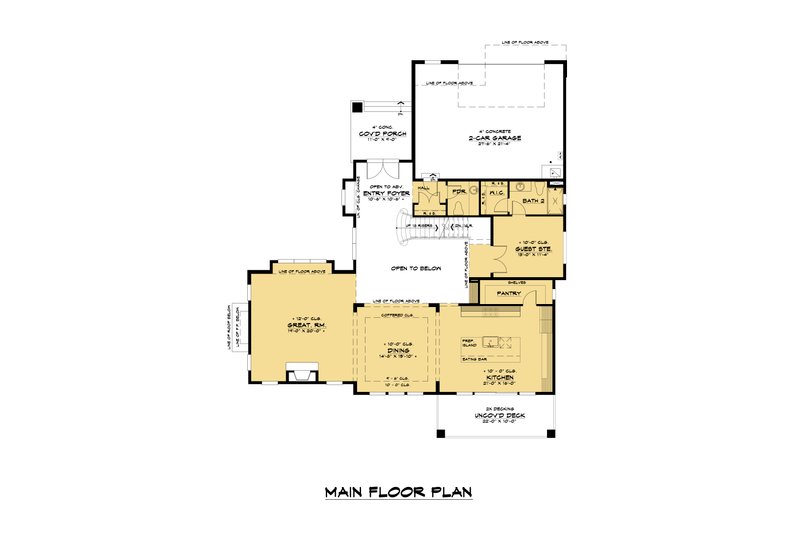

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

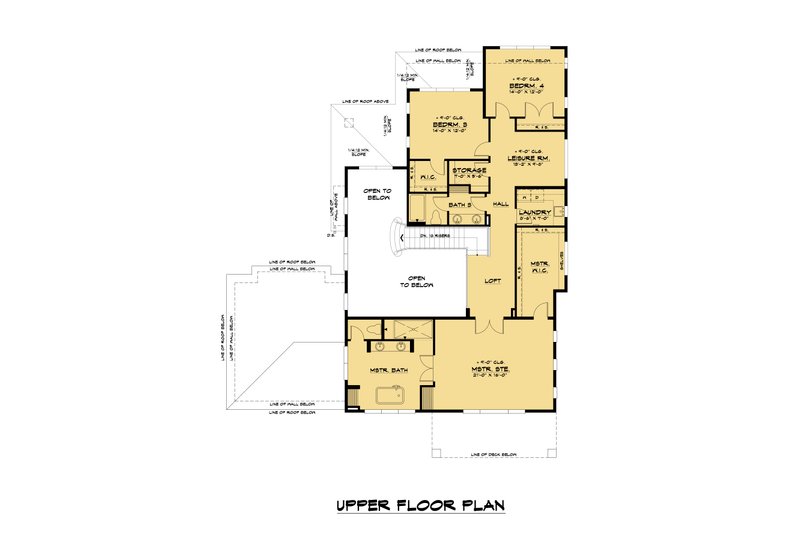

Floor Plan - Upper Floor

Reverse

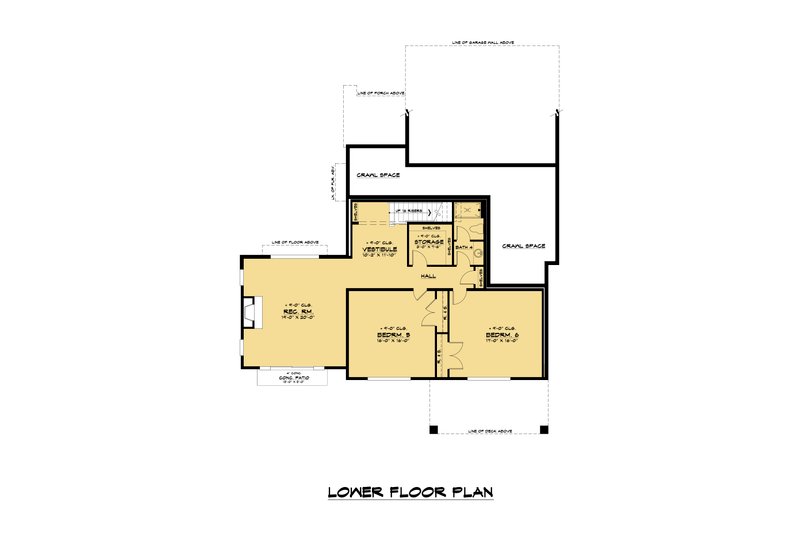

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth: 70'

Height: 37'

Width: 59'

Area

Decks: 176 sq/ft

Garage: 587 sq/ft

Lower Floor: 1462 sq/ft

Main Floor: 2031 sq/ft

Patios: 104 sq/ft

Porch: 109 sq/ft

Upper Floor: 1707 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details: Entry foyer ceiling is open to above.

Garage Ceiling: 11' 6"

Lower Ceiling: 9'

Main Ceiling: 10'

Upper Ceiling Ft: 9'

Roof

Primary Pitch: 4/12

Roof Framing: Trusses

Roof Load: 25 PSF

Roof Type: Composition Shingles

Secondary Pitch: .25/12

Exterior Wall Framing

Exterior Wall Finish: Siding, Stone and Hardie Panels

Framing: 2X6

Insulation: R21

Bedroom Features

Lower Level Bedrooms

Main Floor Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Storage Area

Upstairs Laundry

Garage Features

Front Entry Garage

Oversized Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers. 3D Rendering and Project Information.
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
Door / Window Schedule(s): A list of all the doors and windows needed to construct the house. This can help with estimating materials costs.

*Please note that any structural engineering sheets included with this plan set are for reference only.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$2600.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2900.00

5 printed plan sets mailed to you.

8 Copy Set:
$3050.00

8 printed plan sets mailed to you.

CAD Set:
$4940.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$300.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$300.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$495.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$350.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
