PLAN 71-146
Key Specs
5084
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
PLAN 71-146
Key Specs
5084
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description

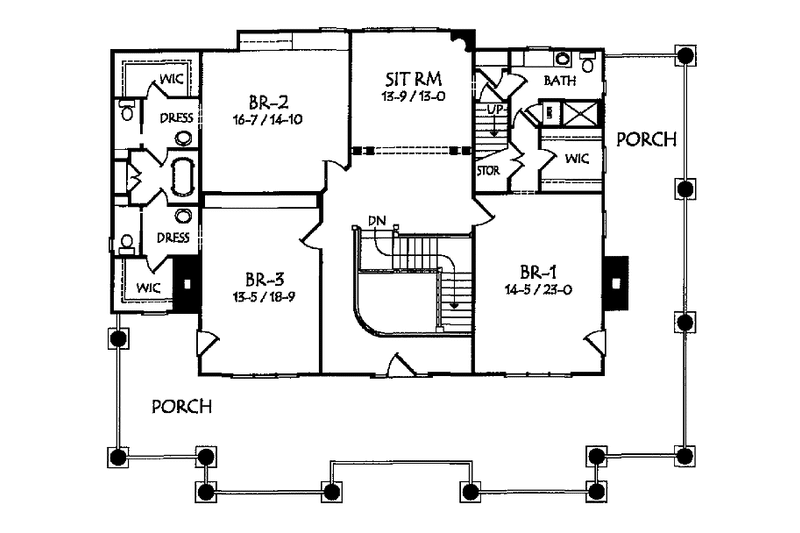

This home boasts a modern floor plan and outdoor views. The wraparound porch extends down the right side of the home on both floors; windows in every room illuminate with natural light. The heart of this home is the gourmet kitchen. Down the hall, a study leads to the side porch, where a byway connects to the carport and garage. Nearby, the master suite boasts a walk-in closet, lavish bath, and access to a screened porch. Upstairs, a sitting room overlooks the backyard, and two spacious bedrooms share a bath; another has its own private bath. All have walk-in closets, and the front two access the second-floor porch.
Full Specs & Features
Height : 38' 10"
Width : 143' 8"
First Floor: 3143 sq/ft
Garage: 720 sq/ft
Second Floor: 1941 sq/ft
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Butler's Pantry
Kitchen Island
Loft
Main Floor Laundry
Storage Area
Sunroom
Unfinished Future Space
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Wrap Around Porch
3rd BR Closet:
48 sq/ft width 9' 8" x depth 5'
Bathroom 2:
56 sq/ft width 10' 5" x depth 5' 5"
Bathroom 3:
170 sq/ft width 9' 8" x depth 17' 8"
Bedroom 2:
291 sq/ft width 14' 5" x depth 20' 3"
Bedroom 2 Closet:
49 sq/ft width 7' x depth 7' 1"
Bedroom 3:
262 sq/ft width 16' 7" x depth 15' 10"
Bedroom 3 Closet:
49 sq/ft width 7' x depth 7' 1"
Bedroom 4:
271 sq/ft width 13' 5" x depth 20' 3"
Bedroom 4 Closet:
40 sq/ft width 6' 9" x depth 6'
Breakfast Room:
127 sq/ft width 9' 10" x depth 13'
Dining Room:
291 sq/ft width 14' 5" x depth 20' 3"
Foyer:
184 sq/ft width 16' 3" x depth 11' 4"
Kitchen:
222 sq/ft width 16' 3" x depth 13' 8"
Laundry Room:
79 sq/ft width 6' 10" x depth 11' 7"
Living Room:
285 sq/ft width 14' 1" x depth 20' 3"
Master Bathroom:
209 sq/ft width 17' 7" x depth 11' 11"
Master Bedroom:
334 sq/ft width 15' 5" x depth 21' 8"
Master Closet:
83 sq/ft width 6' x depth 13' 11"
Porch - Front:
3196 sq/ft width 66' 10" x depth 47' 10"
Powder Room:
21 sq/ft width 3' x depth 7' 2"
Study:
140 sq/ft width 11' 11" x depth 11' 9"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

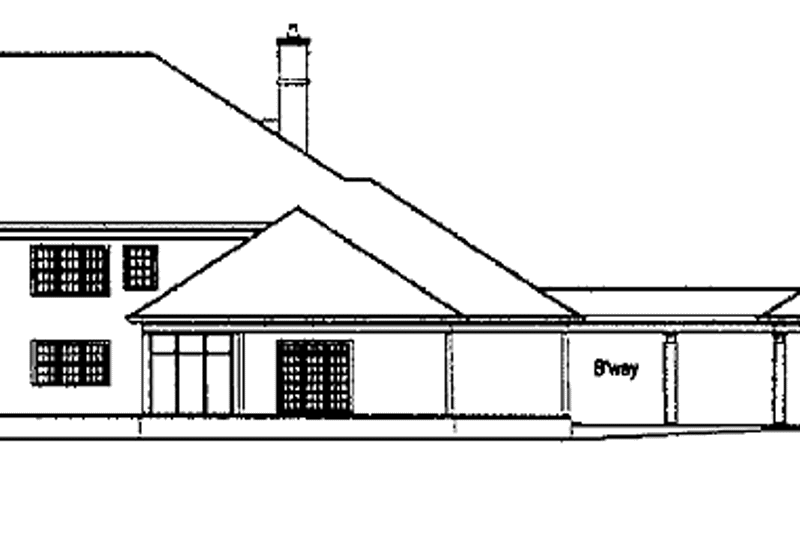

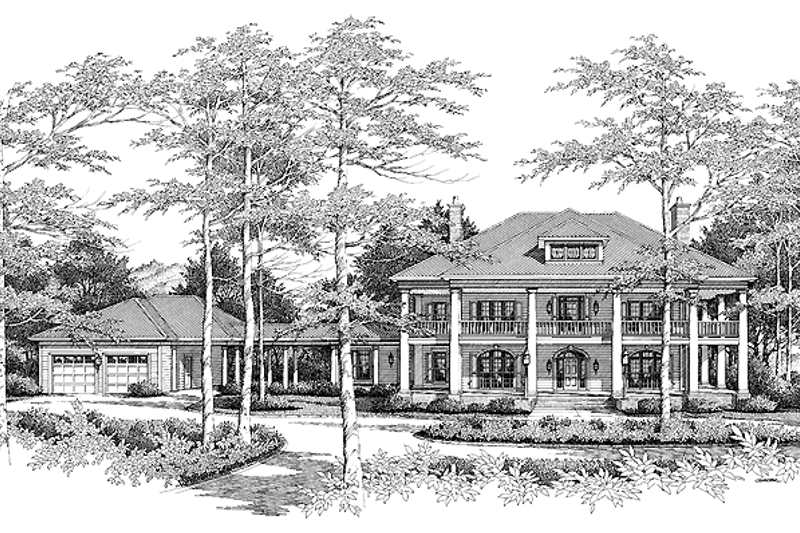

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

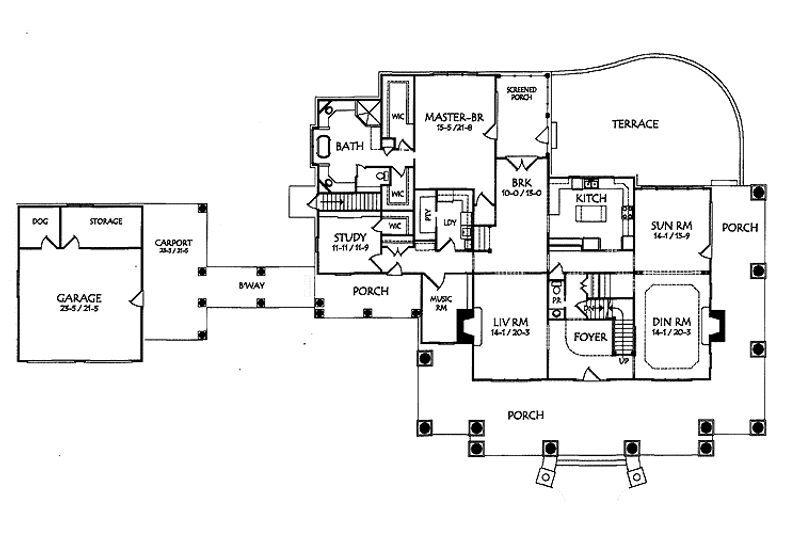

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| 5 Copy Set
: $2542.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $2842.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $3042.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $3042.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $3542.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse
: $50.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $100.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
