PLAN 1057-30

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

5030
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$510.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $2040.00
You save $360.00 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 1057-30

Plan Description


This craftsman design floor plan is 5030 sq ft and has 5 bedrooms and 4.5 bathrooms.

Floor Plans

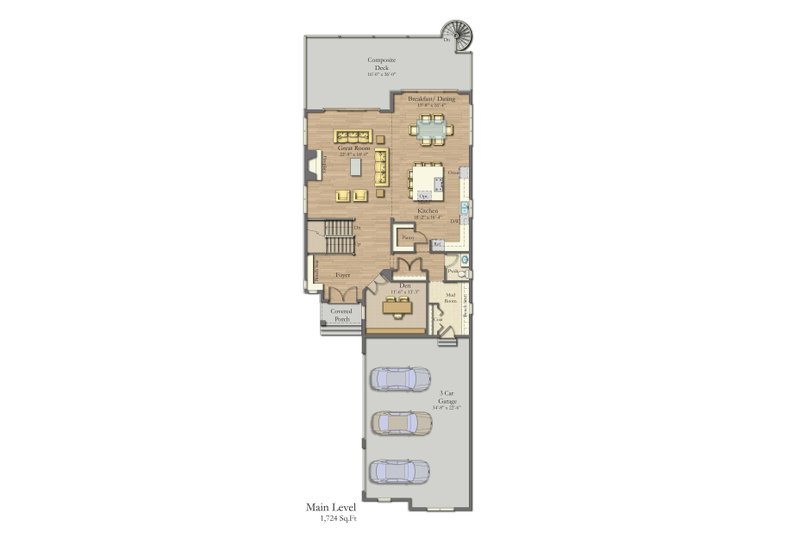

Floor Plan - Main Floor

Reverse
Save

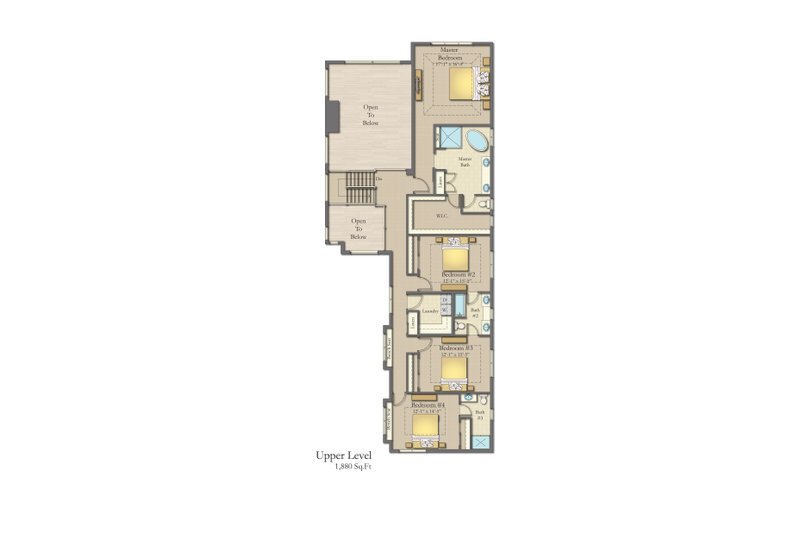

Floor Plan - Upper Floor

Reverse
Save

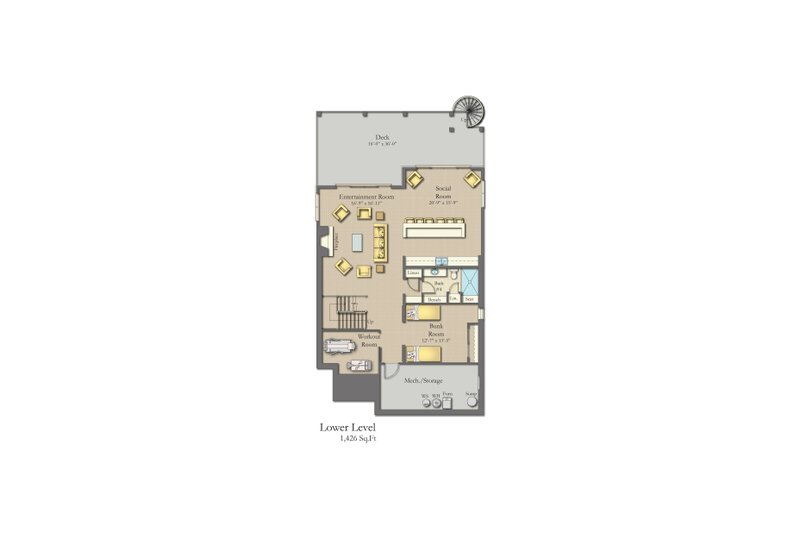

Floor Plan - Lower Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 90' 2"

Height : 35' 10"

Width : 36'

Area

Decks : 525 sq/ft

Garage : 810 sq/ft

Lower Floor : 1426 sq/ft

Main Floor : 1724 sq/ft

Porch : 30 sq/ft

Upper Floor : 1880 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 11' 6"

Lower Ceiling : 8' 8"

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 8:12

Roof Framing : wood

Roof Type : trusses

Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Board and batten, horizontal siding and stone veneer

Framing : 2x6 wood

Insulation : 21

Bedroom Features

Lower Level Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Great Room Living Room

Hobby Rec Room Game Room

Upstairs Laundry

Wet Bar

Lot Characteristics

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

More

Jack & Jill Bath

What's Included


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$2040.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2380.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Walk Out Basement:
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Basement:
$510.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$510.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$510.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
