Plan Description
This colonial design floor plan is 4903 sq ft and has 4 bedrooms and 5 bathrooms.
Floor Plans

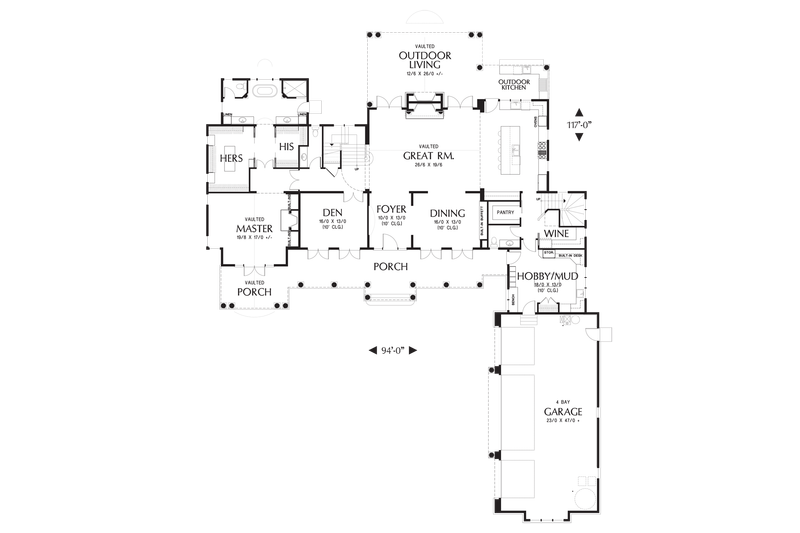

Floor Plan - Main Floor

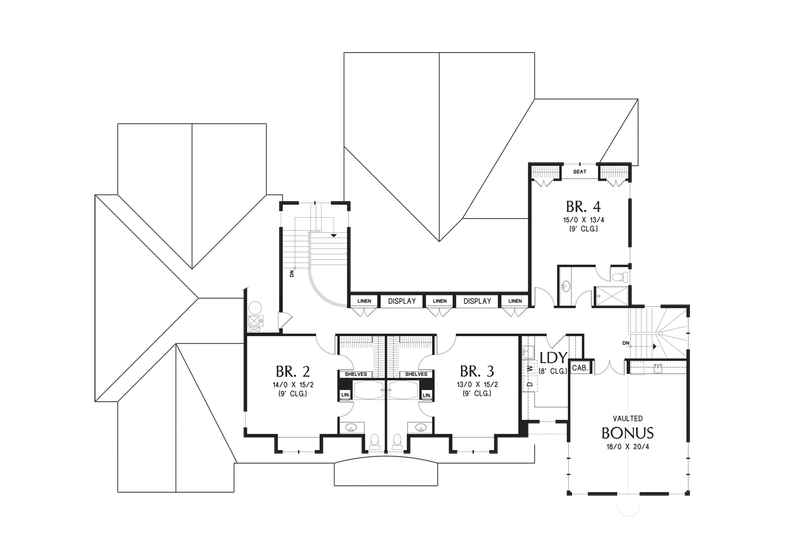

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 117'
Height: 25'
Width: 94'
Area
Bonus: 394 sq/ft
First Floor: 3382 sq/ft
Garage: 1165 sq/ft
Second Floor: 1521 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch: 5:12
Roof Framing: Stick frame
Roof Type: Shake
Exterior Wall Framing
Exterior Wall Finish: Shingle/Stone
Framing: 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Play Flex Room
Upstairs Laundry
Wine Cellar
Garage Features
Side Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Rooms
Bedroom 2:
width 14' x depth 15' 2"
Bedroom 3:
width 13' x depth 15' 2"
Bedroom 4:
width 15' x depth 13' 4"
Bonus:
394 sq/ft width 18' x depth 20' 4"
Den:
width 16' x depth 13'
Dining Room:
width 16' x depth 13'
Foyer:
width 10' x depth 13'
Garage:
1165 sq/ft width 23' x depth 47'
Great Room:
width 26' 6" x depth 19' 6"
Hobby/Mud Room:
width 18' x depth 13'
Kitchen:
width 15' x depth 21' 6"
Master Suite:
width 19' 8" x depth 17'
Rear Porch:
width 12' 6" x depth 26'
What's Included In This Plan Set
