Key Specs


4679
sq ft

5
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description


Recalling the grandeur of its Maryland ancestors, this manor house is replete with exterior details that make it special: keystoned lintels, fluted pilasters, a dormered attic and pedimented doorway. The centerhall floor plan allows formal living and dining areas to the front of the plan. Complementing these are the cozy library and large family room/breakfast room area. A service entrance off the garage holds a laundry room and wash room. Upstairs bedrooms allow more than adequate space. Over the garage is a complete guest apartment with living area, office, bedroom, bath and kitchen.<P/><BR/>

Floor Plans

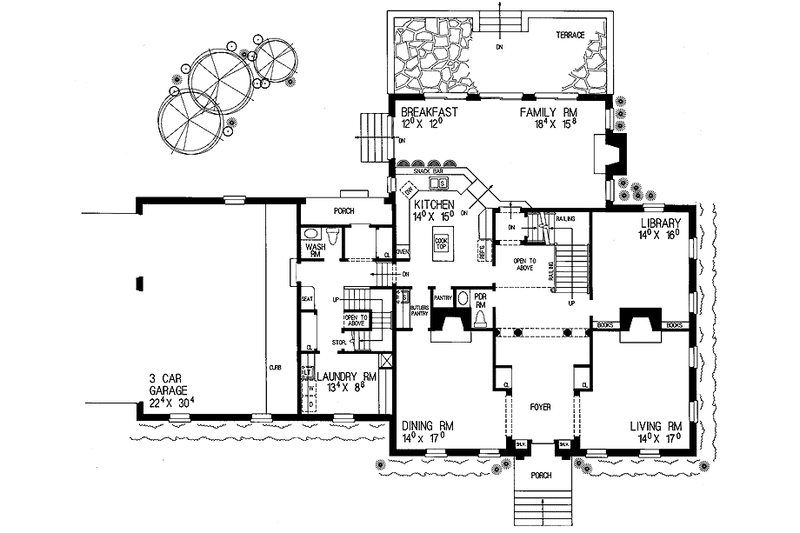

Floor Plan - Main Floor Plan
Classical Floor Plan - Main Floor Plan Plan #72-821

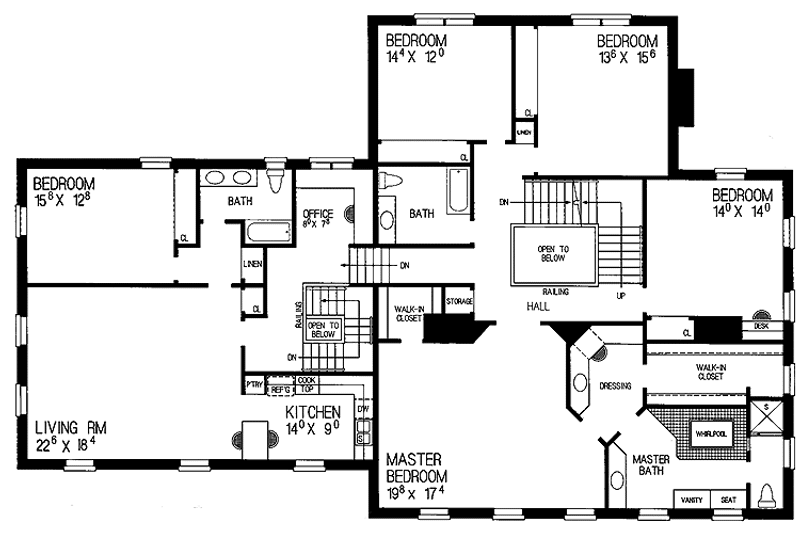

Floor Plan - Upper Floor Plan
Classical Floor Plan - Upper Floor Plan Plan #72-821

Full Specs & Features


Dimension
Depth : 52'
Height : 37'
Width : 80' 8"
Area
First Floor: 2472 sq/ft height 9'
Second Floor: 2207 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms

Attic:

1376 sq/ft width 32' x depth 43'

Basement Foundation:

2576 sq/ft width 46' x depth 56'

Garage:

677 sq/ft width 22' 4" x depth 30' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$960.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1045.50
5 printed plan sets mailed to you.
8 Copy Set :
$1130.50
8 printed plan sets mailed to you.
Reproducible Set :
$1130.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1921.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$233.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$233.75
Ideal for sloping lot, lower level of home partially underground.
Slab:
$233.75
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
85.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
16.96
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
170.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
72.25
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
148.75
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
