PLAN 48-650

Key Specs

4498
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Modify This Plan

Floor Plans

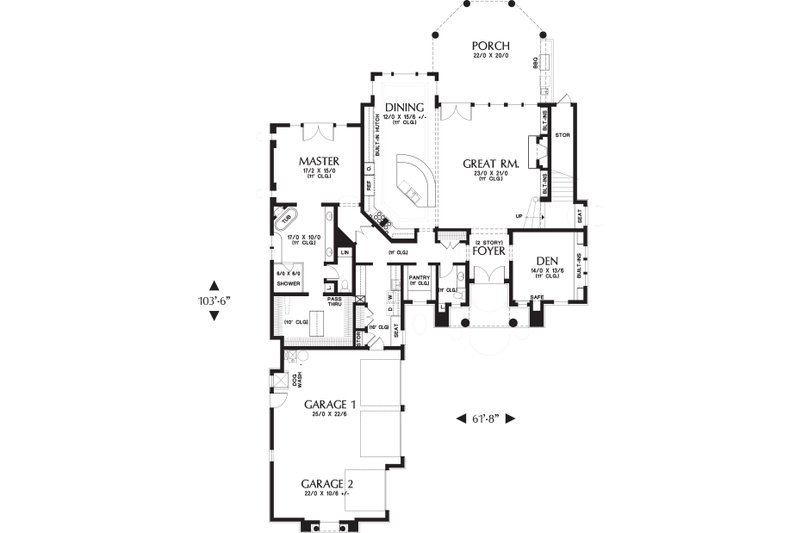

Floor Plan - Main Floor Plan

Reverse

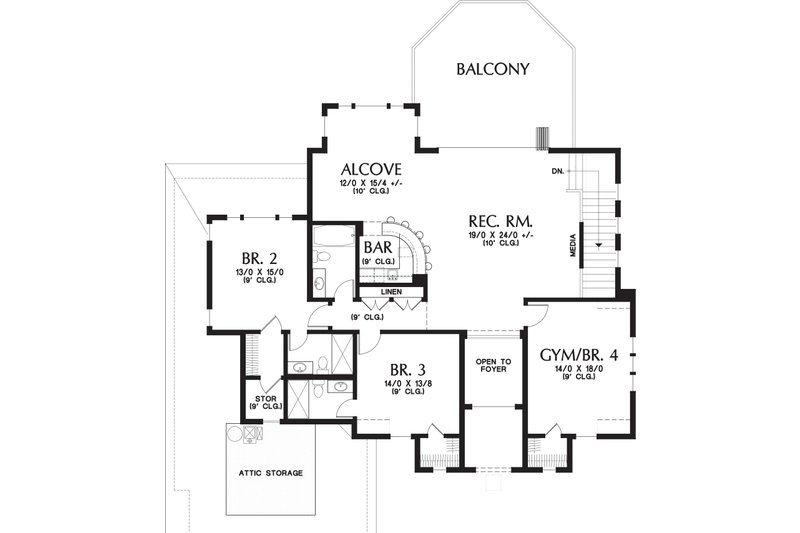

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 103' 6"
Height : 27' 2"
Width : 61' 8"

Area

First Floor: 2594 sq/ft height 11'
Garage: 837 sq/ft
Second Floor: 1904 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Rec. Room and Alcove upstairs have 10' Ceilings.
Main Ceiling : 11'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 25 PSF
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Wet Bar

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

Rooms

Alcove:

184 sq/ft width 12' x depth 15' 4"

Bedroom 2:

195 sq/ft width 13' x depth 15'

Bedroom 3:

191 sq/ft width 14' x depth 13' 8"

Bedroom 4/ Gym:

252 sq/ft width 14' x depth 18'

Covered Rear Porch:

400 sq/ft width 22' x depth 20'

Dining Area:

186 sq/ft width 12' x depth 15' 6"

Garage 1:

587 sq/ft width 25' x depth 22' 6"

Garage 2:

250 sq/ft width 22' x depth 10' 6"

Great Room:

483 sq/ft width 21' x depth 23'

Master Bath:

170 sq/ft width 10' x depth 17'

Master Bedroom:

258 sq/ft width 17' 2" x depth 15'

Rec Room:

456 sq/ft width 19' x depth 24'

Study:

189 sq/ft width 14' x depth 13' 6"
