Plan Description

Spacious single family home with 1000 SF ADU within and a rec room on the third floor.

Floor Plans

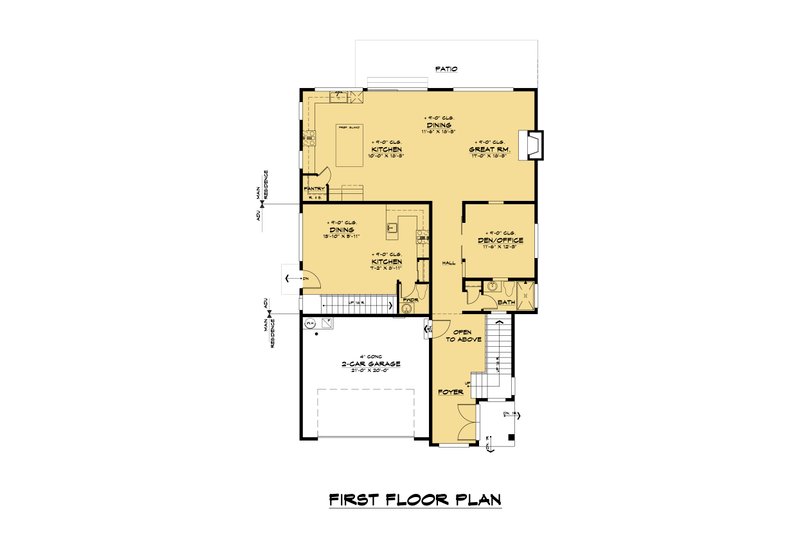

Floor Plan - Main Floor

Reverse

House Plan Design - Contemporary Floor Plan - Main Floor Plan #1066-113

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

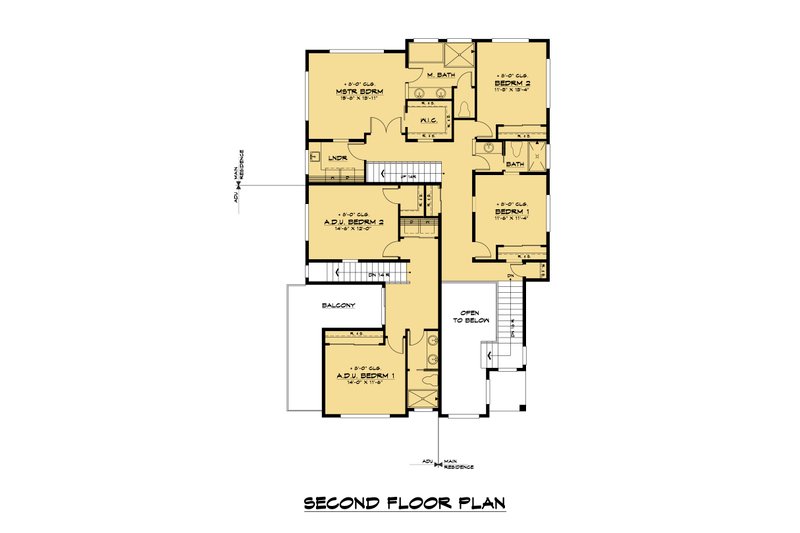

Floor Plan - Upper Floor

Reverse

House Plan Design - Contemporary Floor Plan - Upper Floor Plan #1066-113

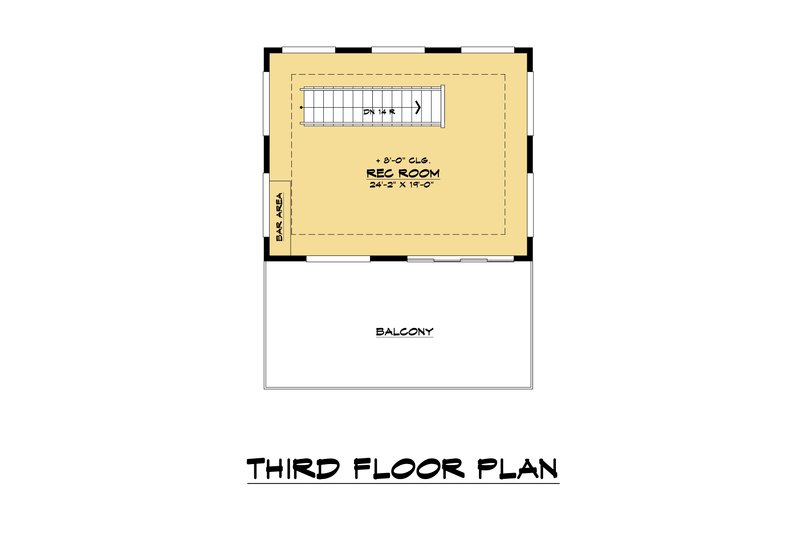

Floor Plan - Other Floor

Reverse

House Plan Design - Contemporary Floor Plan - Other Floor Plan #1066-113

Full Specs & Features

Dimension

Depth : 59' 6"

Height : 28' 10"

Width : 40' 6"

Area

Decks : 178 sq/ft

Garage : 420 sq/ft

Main Floor : 1722 sq/ft

Porch : 38 sq/ft

Third Floor : 819 sq/ft

Upper Floor : 1788 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Ceiling Details : Entry foyer ceiling is open to above.

Garage Ceiling : 9'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : .25/12

Roof Framing : Raftors

Roof Load : 25

Roof Type : TPO

Exterior Wall Framing

Exterior Wall Finish : Hardie Panels and Stone

Framing : 2X6

Insulation : R21

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Upstairs Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

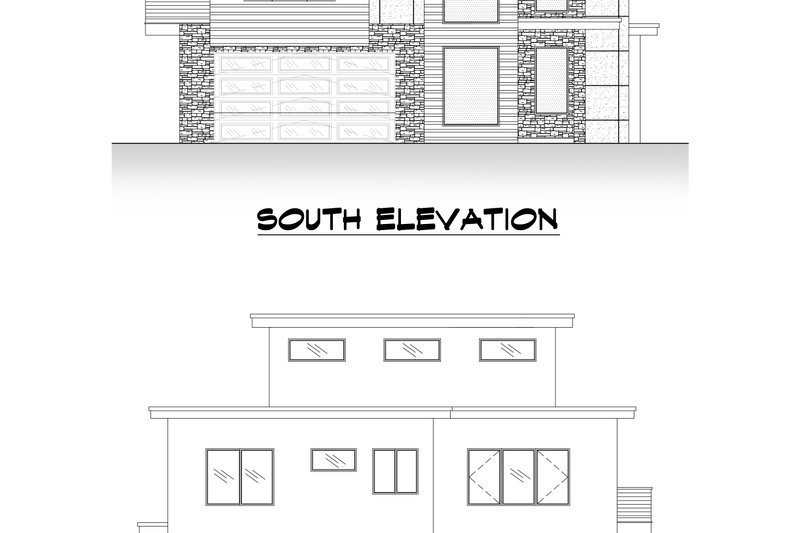

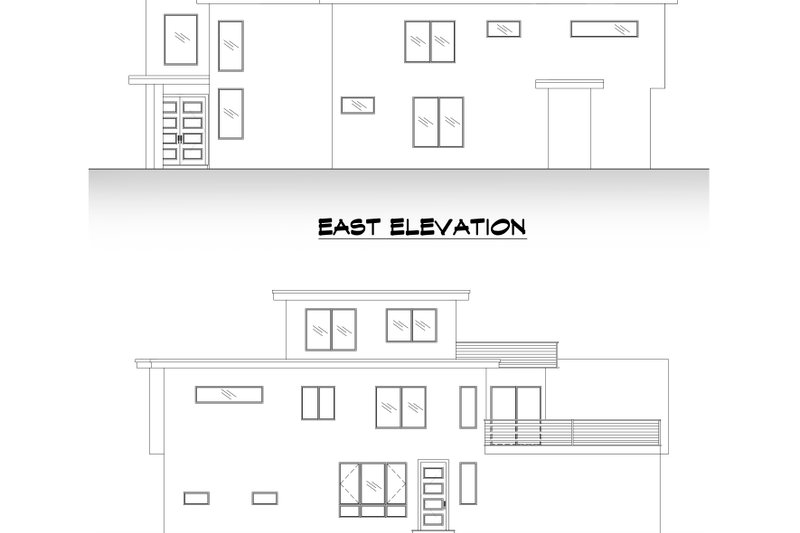

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
