PLAN 27-213
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
4128
sq ft
4
Beds
5
Baths
2
Floors
3
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 27-213
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

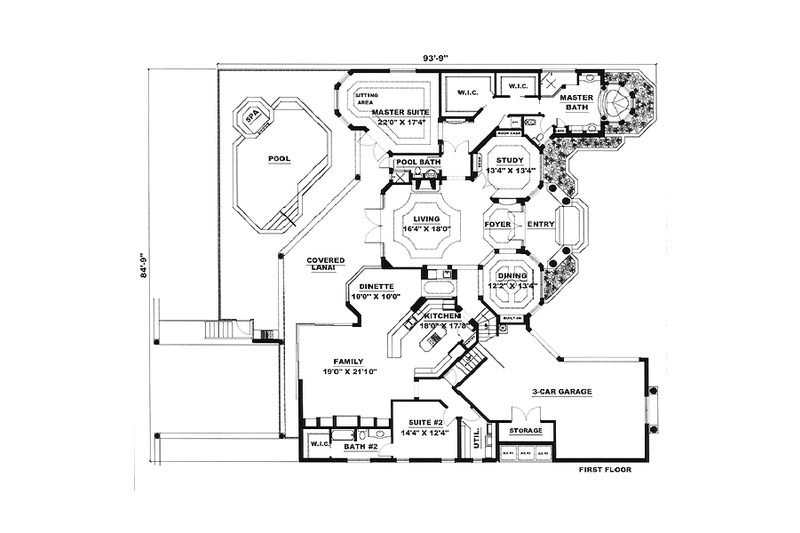

Floor Plan - Main Floor

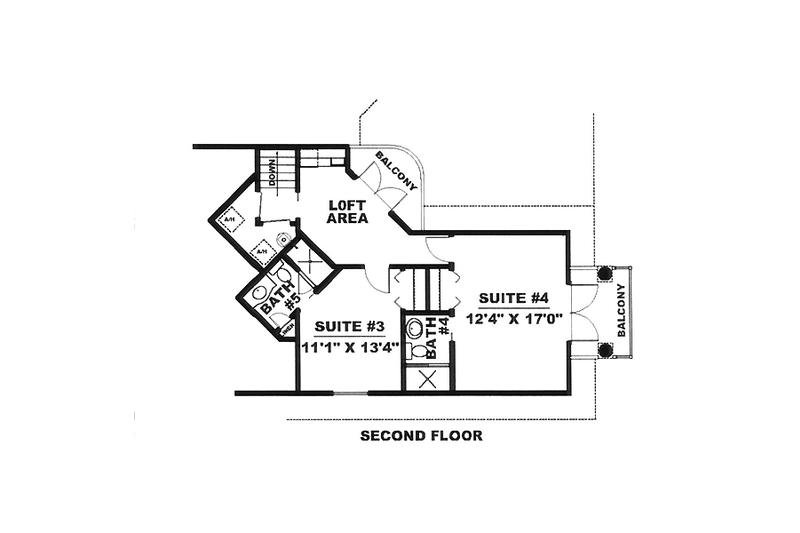

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 94'
Height: 32'
Width: 85'
Area
Main Floor: 3409 sq/ft
Upper Floor: 719 sq/ft
Exterior Wall Framing
Framing: Concrete block
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Rear Porch
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
- Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
- Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
Plan Set
$1600.00
$2100.00
Foundation
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
