PLAN #413-820

Key Specs


4048
sq ft

5
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans

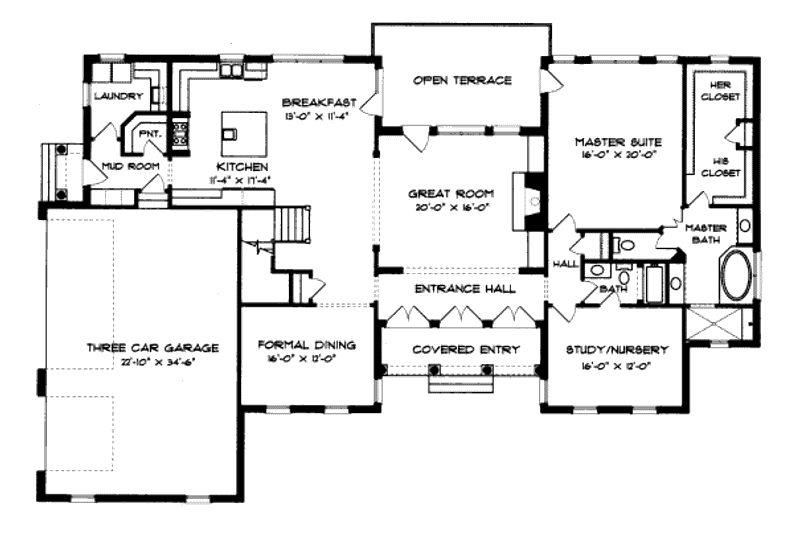

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #413-820

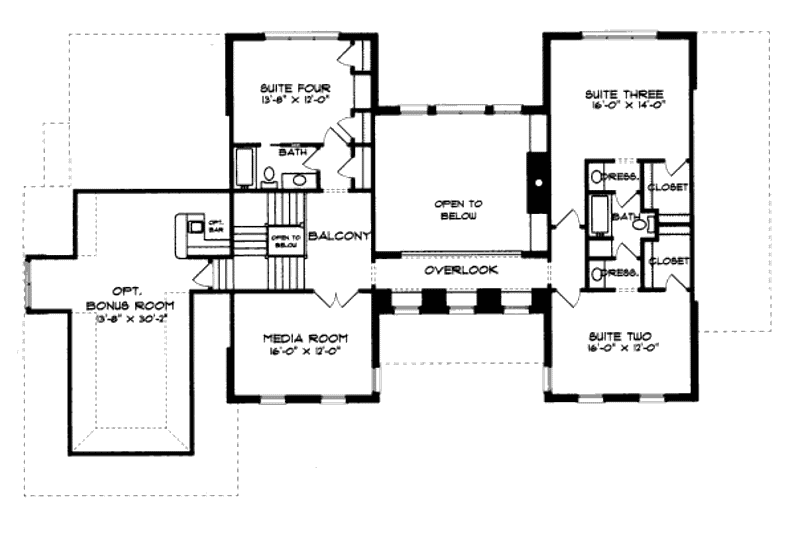

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #413-820

Full Specs & Features


Dimension
Depth : 57' 3"
Height : 34' 5"
Width : 85'
Area
First Floor: 2563 sq/ft height 10'
Garage: 856 sq/ft
Second Floor: 1485 sq/ft height 9'
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Stucco
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Media Room
Play Flex Room
Storage Area
Unfinished Future Space
Loft
Garage Features
Oversized Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Balcony
More
Jack & Jill Bath
Rooms

Bedroom 2:

192 sq/ft width 16' x depth 12'

Bedroom 3:

224 sq/ft width 16' x depth 14'

Bedroom 4:

164 sq/ft width 13' 8" x depth 12'

Breakfast Room:

147 sq/ft width 13' x depth 11' 4"

Dining Room:

192 sq/ft width 16' x depth 12'

Great Room:

320 sq/ft width 20' x depth 16'

Kitchen:

196 sq/ft width 11' 4" x depth 17' 4"

Study:

192 sq/ft width 16' x depth 12'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

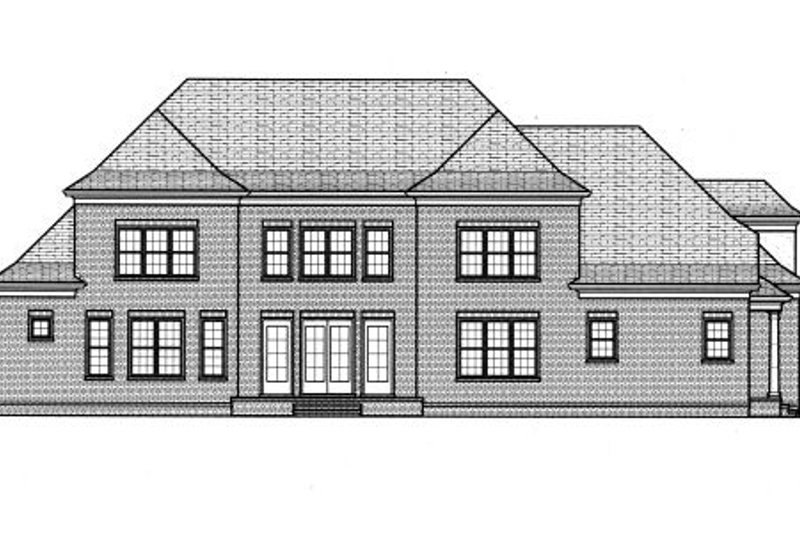

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$1980.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$2808.00
5 printed plan sets mailed to you.
CAD Set :
$2808.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$180.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$360.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$540.00
Ideal for sloping lot, lower level of home partially underground.
Additional Options
Additional Construction Sets :
90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
