Plan Description
This colonial design floor plan is 3978 sq ft and has 4 bedrooms and 3 bathrooms.
Floor Plans

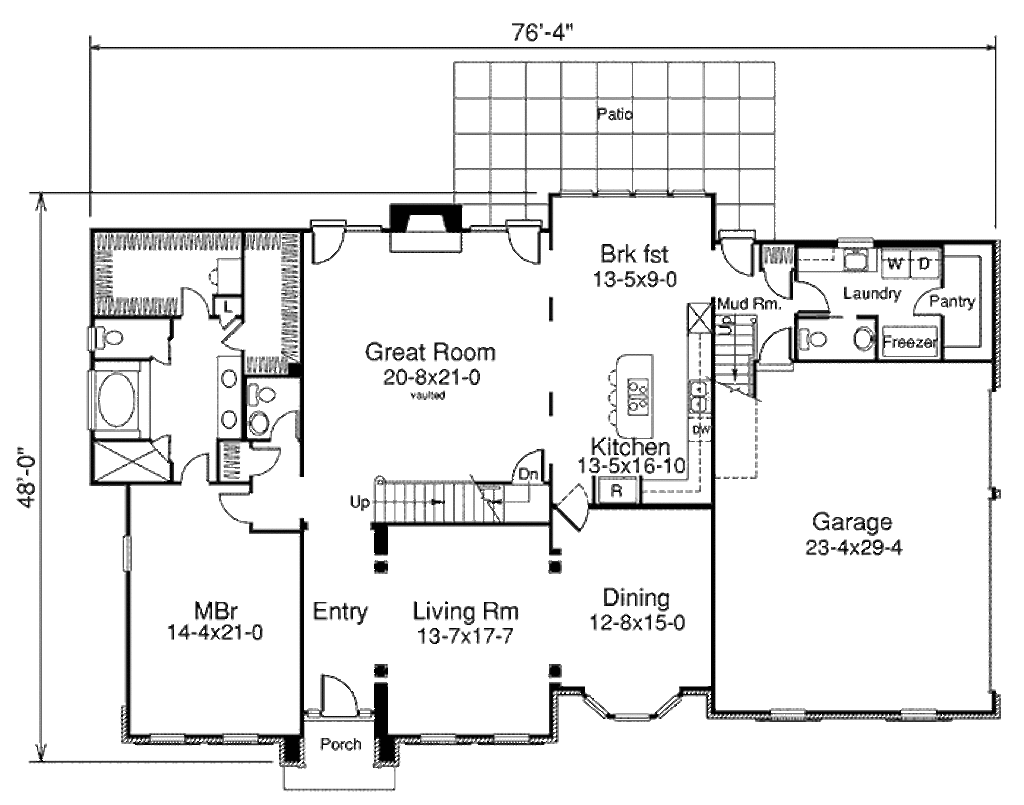

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 48'
Width : 76'
Area
Basement : 2437 sq/ft
Garage : 650 sq/ft
Main Floor : 2437 sq/ft
Upper Floor : 1541 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 40
Roof Type : shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : brick veneer/siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
More
Jack & Jill Bath
