Plan Description

Victorian influences are celebrated in this design. The turret-capped gazebo offers a charming sitting area. Inside, the first floor is characterized by spacious room sizes, decorative ceilings, and abundant natural light. The second floor houses the sleeping quarters, including a pampering master suite, a well-appointed guest suite, two family bedrooms, and a flexible bonus room.

Floor Plans

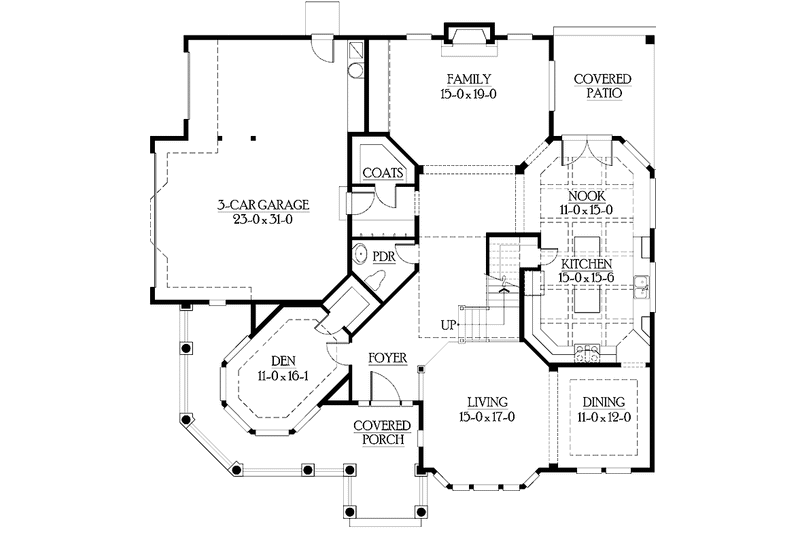

Floor Plan - Main Floor

Reverse

House Plan Design - Victorian Floor Plan - Main Floor Plan #132-472

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

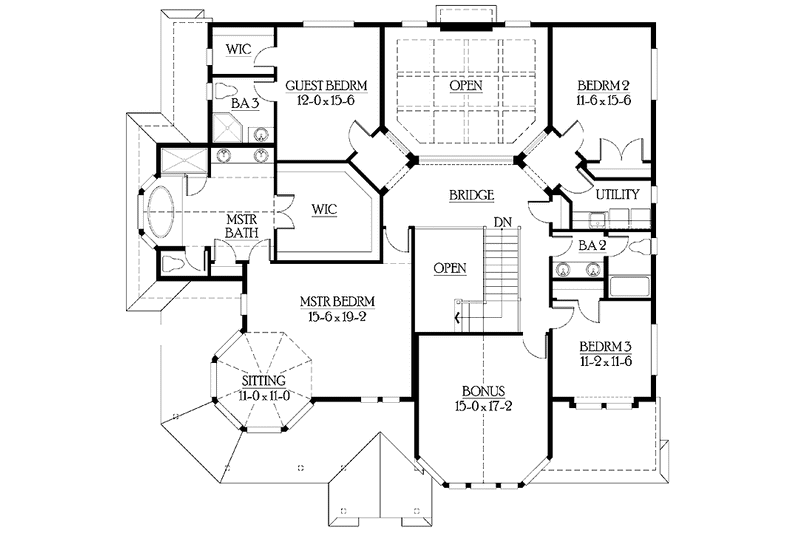

Floor Plan - Upper Floor

Reverse

House Plan Design - Victorian Floor Plan - Upper Floor Plan #132-472

Full Specs & Features

Dimension

Depth : 58'

Height : 37' 9"

Width : 60'

Area

First Floor: 1850 sq/ft height 9' 1"

Garage: 735 sq/ft

Porch: 445 sq/ft

Second Floor: 2115 sq/ft height 9' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Mud Room

Storage Area

Unfinished Future Space

Upstairs Laundry

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

178 sq/ft width 11' 6" x depth 15' 6"

Bedroom 3:

128 sq/ft width 11' 2" x depth 11' 6"

Bonus Room - Finished:

257 sq/ft width 15' x depth 17' 2"

Den:

176 sq/ft width 11' x depth 16' 1"

Dining Room:

132 sq/ft width 11' x depth 12'

Family Room:

285 sq/ft width 15' x depth 19'

Garage:

713 sq/ft width 23' x depth 31'

Guest Bedroom:

186 sq/ft width 12' x depth 15' 6"

Kitchen:

232 sq/ft width 15' x depth 15' 6"

Living Room:

255 sq/ft width 15' x depth 17'

Master Bedroom:

297 sq/ft width 15' 6" x depth 19' 2"

Master Sitting Room:

121 sq/ft width 11' x depth 11'

Nook:

165 sq/ft width 11' x depth 15'

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.

This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
