Key Specs

3807
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Modify This Plan

Floor Plans

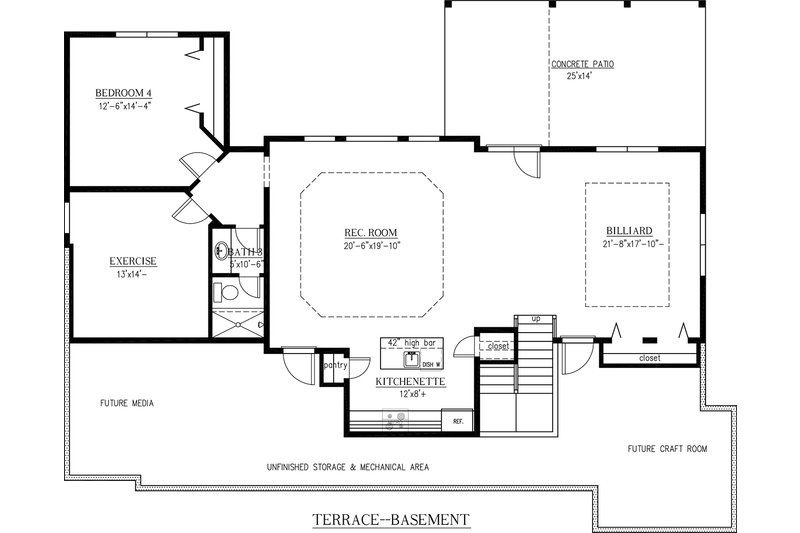

Floor Plan - Lower Floor Plan

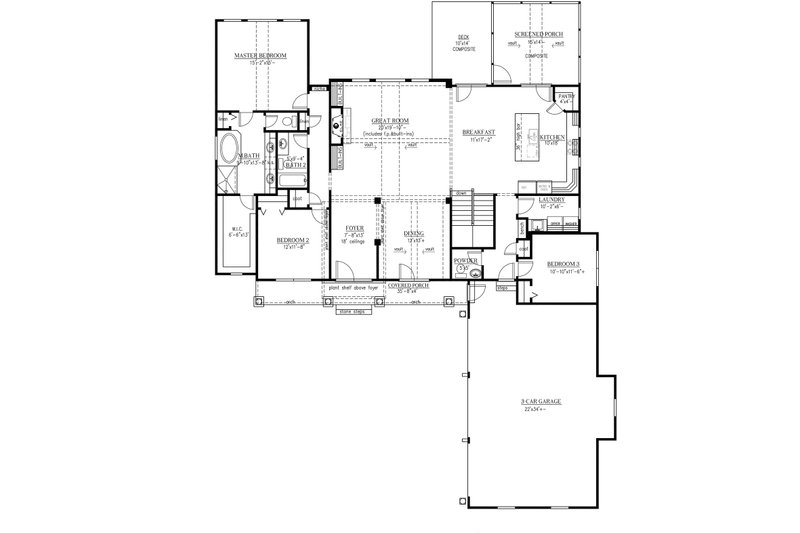

Floor Plan - Main Floor Plan

Full Specs & Features

Dimension

Depth : 85' 4"
Height : 29' 2"
Width : 67' 6"

Area

Basement Unfinished: 2297 sq/ft height 11'
First Floor: 2297 sq/ft height 10'
Garage: 821 sq/ft

Roof

Roof Framing : Truss
Primary Pitch : 12:12
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Wet Bar
Sunroom

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch

Rooms

Bath 2:

47 sq/ft width 5' x depth 9' 4"

Bedroom 2:

140 sq/ft width 12' x depth 11' 8"

Bedroom 3:

125 sq/ft width 10' 10" x depth 11' 6"

Breakfast:

189 sq/ft width 11' x depth 17' 2"

Covered Front Porch:

143 sq/ft width 35' 8" x depth 4'

Covered Rear Patio:

350 sq/ft width 25' x depth 14'

Deck:

140 sq/ft width 10' x depth 14'

Dining Room:

156 sq/ft width 12' x depth 13'

Foyer:

100 sq/ft width 7' 8" x depth 13'

Garage:

821 sq/ft width 22' x depth 34'

Great Room:

397 sq/ft width 20' x depth 19' 10"

Kitchen:

180 sq/ft width 10' x depth 18'

Laundry:

61 sq/ft width 10' 2" x depth 6'

Master Closet:

85 sq/ft width 6' 6" x depth 13'

Master Bath:

134 sq/ft width 9' 10" x depth 13' 8"

Master Bedroom:

228 sq/ft width 15' 2" x depth 15'

Pantry:

16 sq/ft width 4' x depth 4'

Powder Room:

25 sq/ft width 5' x depth 5'

Screened Porch:

210 sq/ft width 15' x depth 14'

What's Included In This Plan Set

Exterior Elevations

Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

Floor Plan(s)

Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

Foundation Plan and Footings

The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

Roof Plan

Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

Building Sections & Details

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

Notes and Details Page(s)

The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.

» See important information before purchasing.

Plan Set

PDF Set : $1350.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1550.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement: $0.00	Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse : 200.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Construction Engineering Guide : 39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : 19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : 200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design : 100.00	Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an "unlimited" plan set or a multi-use license you may only build one home plan from a set of plans. Plans cannot be re-sold.
