Plan Description
This modern design floor plan is 3782 sq ft and has 4 bedrooms and 4.5 bathrooms.
Floor Plans

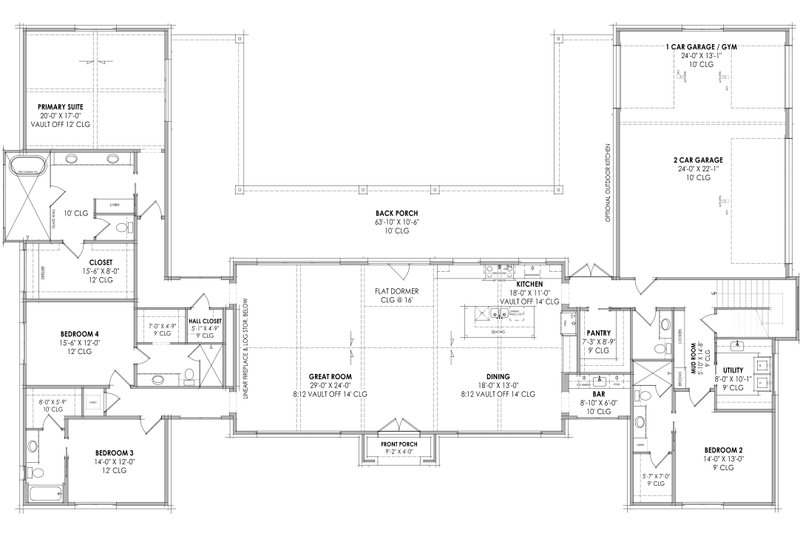

Floor Plan - Main Floor

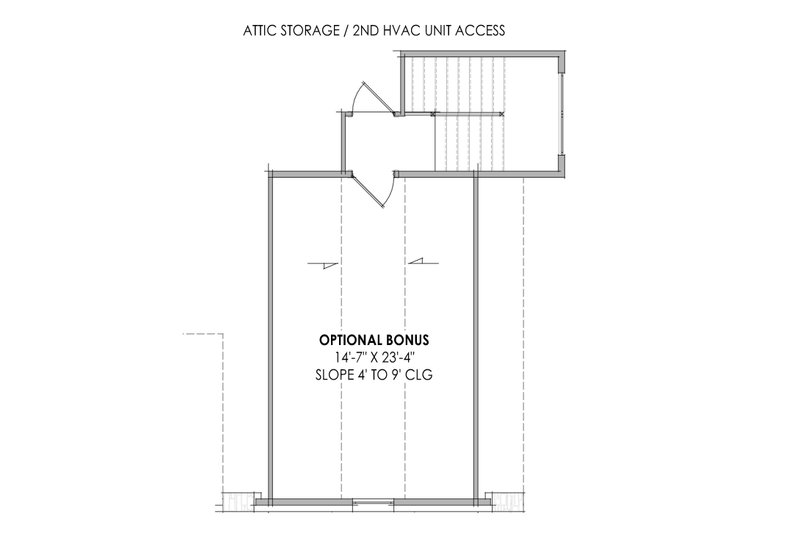

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 69' 10"
Height : 29' 6"
Width : 114' 11"
Area
Garage : 897 sq/ft
Main Floor : 3782 sq/ft
Optional Bonus Room : 399 sq/ft
Porch : 1157 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 9'
Garage Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Type : stick
Secondary Pitch : 2:12
Exterior Wall Framing
Exterior Wall Finish : Stone and Siding
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space
Wet Bar
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Modeling: A 3D perspective view of the home design
- Main / Upper-Level Floor Plans: Typically drawn to 1/4" scale with all dimensions and notes, plus a Window and Door Schedule showing all door and window types, quantities, and descriptions.
- Electrical Details and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and upper-level floor plans.
- Exterior Elevations: All elevations are noted, and an aerial view of the roof is provided, showing all hips, valleys, and ridges.
- Siding Notes and Details: Siding installation page and wall sheathing / portal wall framing page.
- General Notes and Area Details: Shows square footage details for foundation, porches, patios, garage, and floor plans, plus general contractor notes.
- Foundation Plan: Dimensioned foundation plan with notes and generic beam details. Basic plumbing plan that shows distances from the edge of the slab on grade to each fixture. Slab foundations are standard for most plans, Alternate foundations are available for a fee.
- Typical floor joist and roof truss diagram: Shows placement and directions of floor joists, suggested placement and direction of roof trusses.
- Wall Section(s): Detail of wall materials and assembly, plate heights, fireplace detail
- Note: Interior elevations are not typically included but can be added for a fee. Please call for details.
