Key Specs


3508
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans

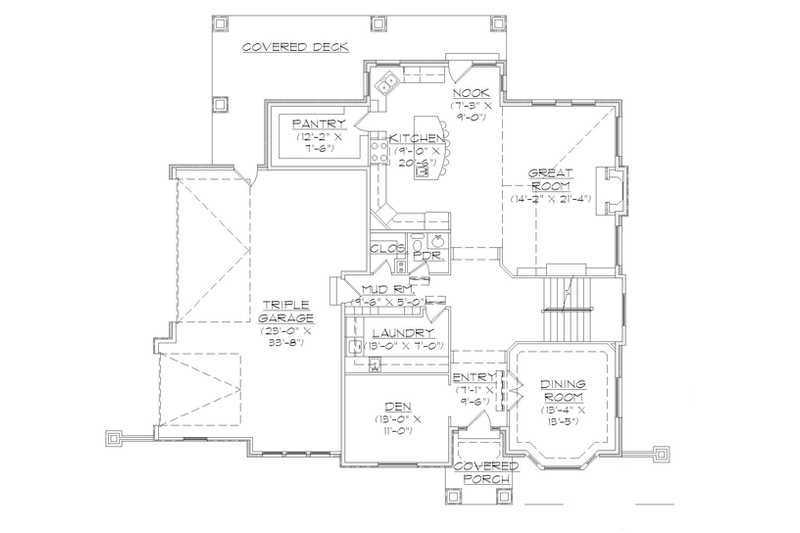

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #945-137

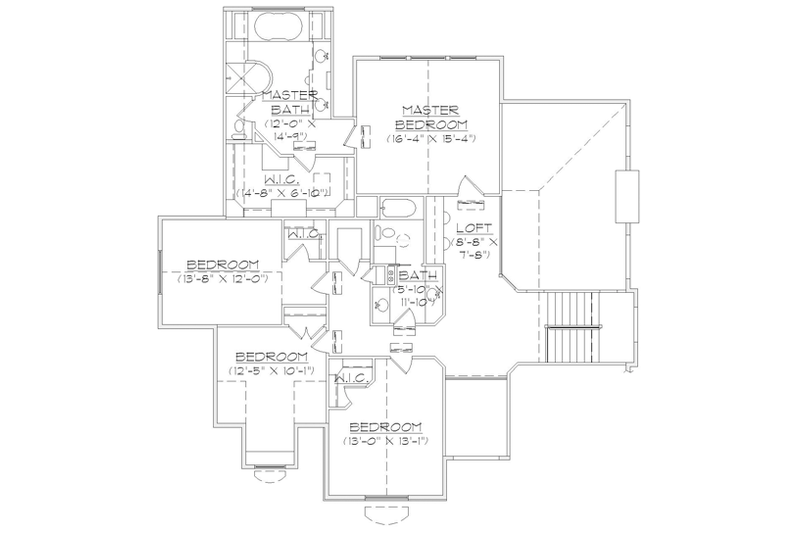

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #945-137

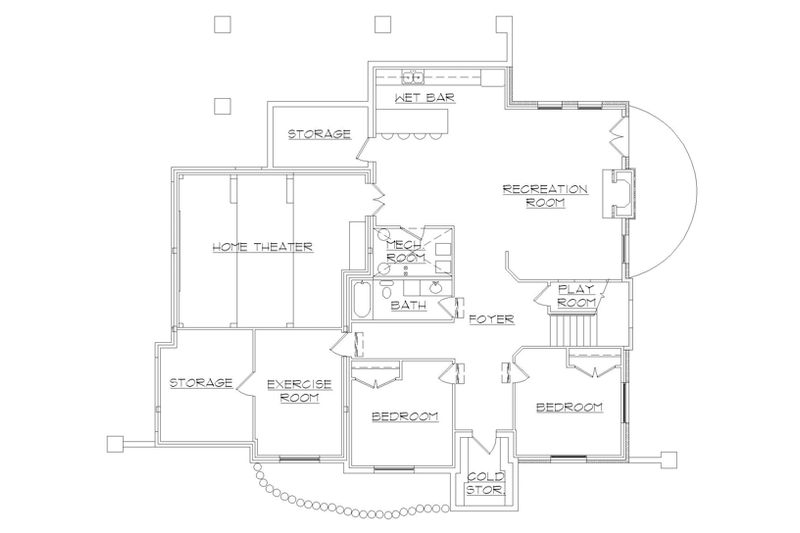

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #945-137

Full Specs & Features


Dimension
Depth : 56'
Height : 34' 10"
Width : 59'
Area
Basement Unfinished: 2554 sq/ft
Deck: 357 sq/ft
First Floor: 1745 sq/ft
Garage: 844 sq/ft
Porch: 68 sq/ft
Second Floor: 1763 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 34:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Media Room
Loft
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
Deck
Rooms

Bedroom 2:

width 13' 8" x depth 12'

Bedroom 3:

width 12' 5" x depth 10' 1"

Bedroom 4:

width 13' x depth 13' 1"

Den:

width 15' x depth 11'

Dining Room:

width 13' 4" x depth 15' 5"

Entry:

width 7' 1" x depth 9' 6"

Great Room:

width 14' 2" x depth 21' 4"

Kitchen:

width 9' x depth 20' 6"

Laundry:

width 15' x depth 7'

Loft:

width 8' 8" x depth 7' 8"

Master Bath:

width 12' x depth 14' 9"

Master Bedroom:

width 16' 4" x depth 15' 4"

Mud Room:

width 92' 6" x depth 5'

Nook:

width 7' 3" x depth 9'

Pantry:

width 12' 2" x depth 7' 6"

Walk In Closet:

width 14' 8" x depth 6' 10"
