Plan Description

This colonial design floor plan is 3503 sq ft and has 5 bedrooms and 3.5 bathrooms.

Floor Plans

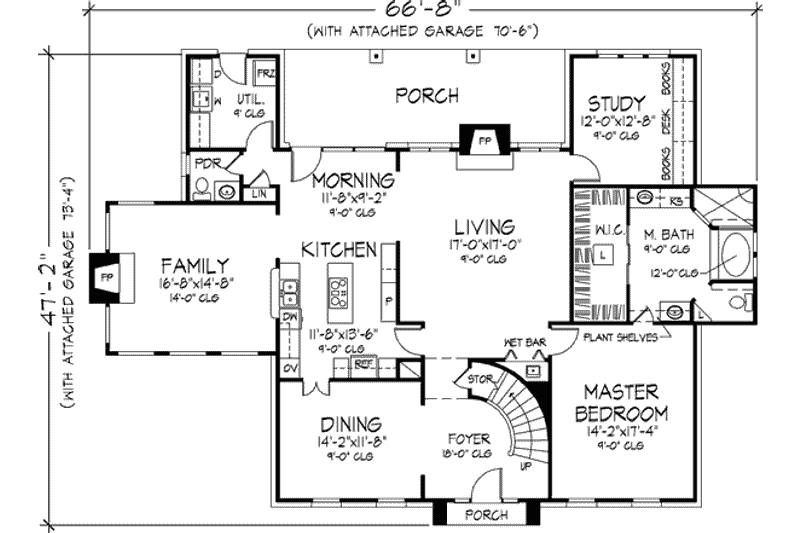

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

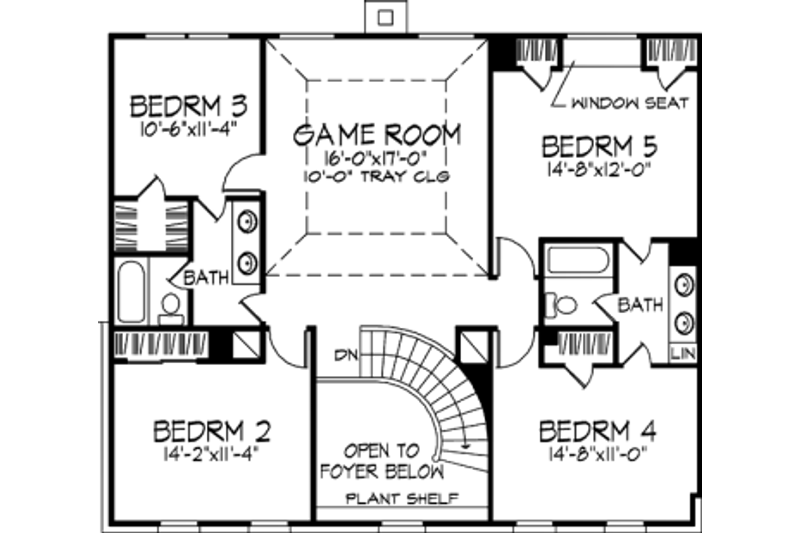

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 48'

Height : 32'

Width : 67'

Area

First Floor: 2157 sq/ft height 9'

Second Floor: 1346 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

160 sq/ft width 14' 2" x depth 11' 4"

Bedroom 3:

118 sq/ft width 10' 6" x depth 11' 4"

Bedroom 4:

161 sq/ft width 14' 8" x depth 11'

Bedroom 5:

176 sq/ft width 14' 8" x depth 12'

Dining Room:

165 sq/ft width 14' 2" x depth 11' 8"

Family Room:

273 sq/ft width 18' 8" x depth 14' 8"

Game Room:

272 sq/ft width 16' x depth 17'

Kitchen:

157 sq/ft width 11' 8" x depth 13' 6"

Living Room:

289 sq/ft width 17' x depth 17'

Master Bedroom:

245 sq/ft width 14' 2" x depth 17' 4"

Morning Room:

106 sq/ft width 11' 8" x depth 9' 2"

Study:

152 sq/ft width 12' x depth 12' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1137.30

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Study Set:
$568.65

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$51.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
