PLAN 1114-63
Photographs may show modified designs.
- Jump to:
- All (12)
- Floor plans (2)
Get Personalized Help
Key Specs
3450
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTB2026
Use Code CTB2026
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1114-63
3450
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This barndominium design floor plan is 3450 sq ft and has 4 bedrooms and 3.5 bathrooms.
Floor Plans
Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 68'
Height : 34' 3"
Width : 52'
Area
Decks : 413 sq/ft
Garage : 833 sq/ft
Main Floor : 1343 sq/ft
Porch : 475 sq/ft
Upper Floor : 2107 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 9/12
Roof Framing : Truss
Roof Load : n/a
Roof Type : Standing seam metal
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Vertical Siding
Framing : 2x6
Insulation : Batt insulation
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Outdoor Spaces
Grill Deck Sundeck
More
Jack & Jill Bath
What's Included In This Plan Set
- Foundation Plan: Footing sizes, slab thickness, floor framing sizes/layout, etc.
- Floor Plan(s): Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
- Roof Plan: Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

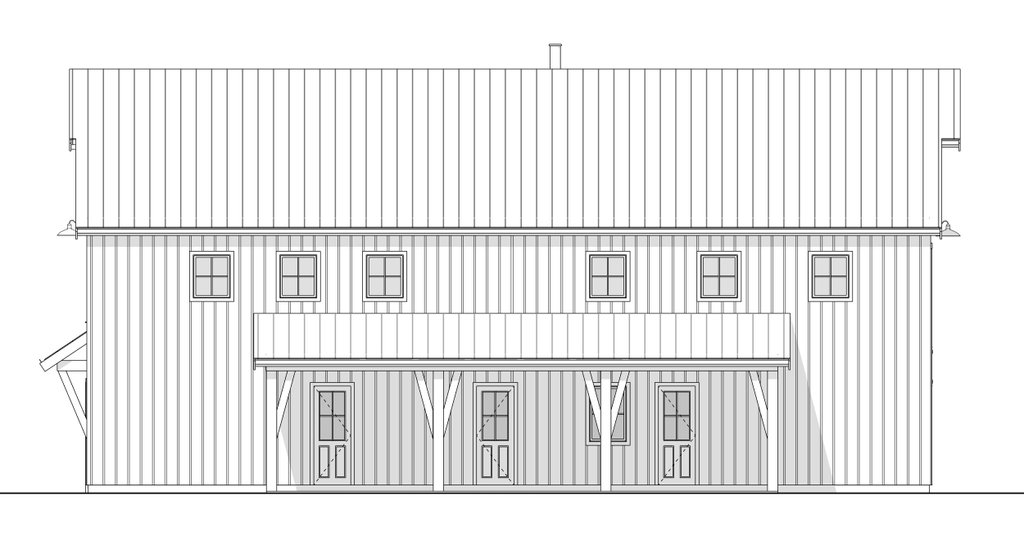

- Exterior Elevations: Views of the front, rear, and sides of the home detailing exterior finish work.
- Building Sections: Vertical slices of the home showing ceiling heights, floor level changes, and roof profiles.
- Construction Details: Detailed drawings of foundation/footings, floor framing, door and window framing, roof framing, roof venting, etc.
What is NOT INCLUDED in the plans:
- Architectural or Engineering Stamp: If required, stamps and seals must be obtained through a local architect or engineer. PDF and CAD plan licenses allow you to work with independent sources for compliance. Check with your builder to ensure they can work with you.
- Site Plan: Site plans are handled locally, if required. Someone needs to walk the property and take measurements.
- Plumbing Plans: Your contractor or utility subcontractor will prepare details for water and waste systems according to your property and local codes.
- Electrical Plans: Not included but can be prepared by request for an additional fee.
- Mechanical Drawings: Location of heating and air equipment and ductwork is to be provided by the builder, subcontractor, or engineer.
- Framing Layouts: Beam sizes and locations are not calculated since requirements vary by region.
- Material Lists: Can be purchased as an add-on. Please allow 5–7 business days for delivery.
- Renderings, Photography, or Marketing Imagery: All images are copyrighted by the plan designer and used on the website with permission.
- Energy Calculations: Title 24, ResCheck, and other energy code calculations are handled locally if required.
- Building Codes: Because of varying local requirements, the plans may not include all information needed by your building department. If needed, we recommend hiring a local design professional or engineer to bring the plans into compliance.
- Engineering: Some states require a licensed architect or engineer to review and stamp the plans. If this applies where you’re building, a local professional will assist with your permit plans.
Please call or send us a message to verify what is / is not included with this set of plans.
