PLAN 1066-166

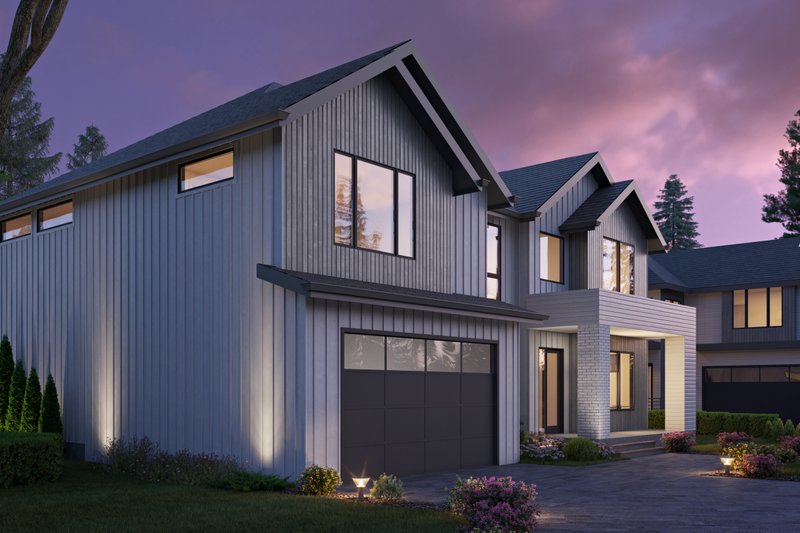

Photographs may show modified designs.

Save
Home  >  Style  >  Contemporary

Key Specs


Plan Sq Ft

3433
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

4
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$1717.00
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 1066-166

Plan Description


This contemporary design floor plan is 3433 sq ft and has 5 bedrooms and 4 bathrooms.

Floor Plans

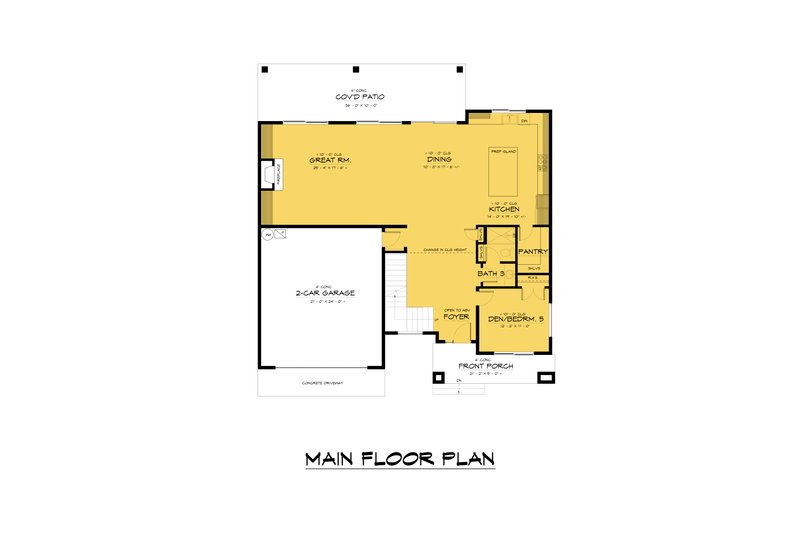

Floor Plan - Main Floor

Reverse
Save

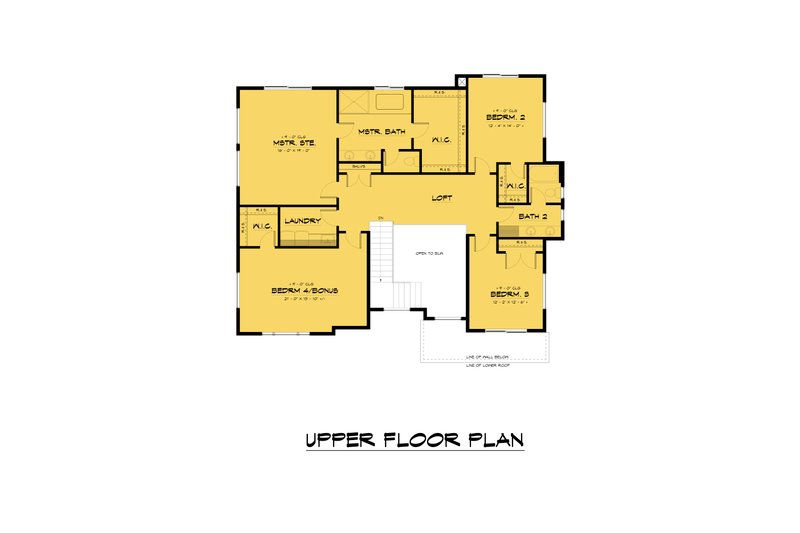

Floor Plan - Upper Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 45'

Height : 34' 3"

Width : 51'

Area

Garage : 530 sq/ft

Main Floor : 1576 sq/ft

Patios : 360 sq/ft

Porch : 121 sq/ft

Upper Floor : 1857 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 11' 6"

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

What's Included


All plans are drawn at ¼” scale or larger and include :

  • Cover Sheet: 3D Rendering and Project Information.
  • General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
  • Floor Plans (lower, main, upper, etc.) showing all doors and windows.

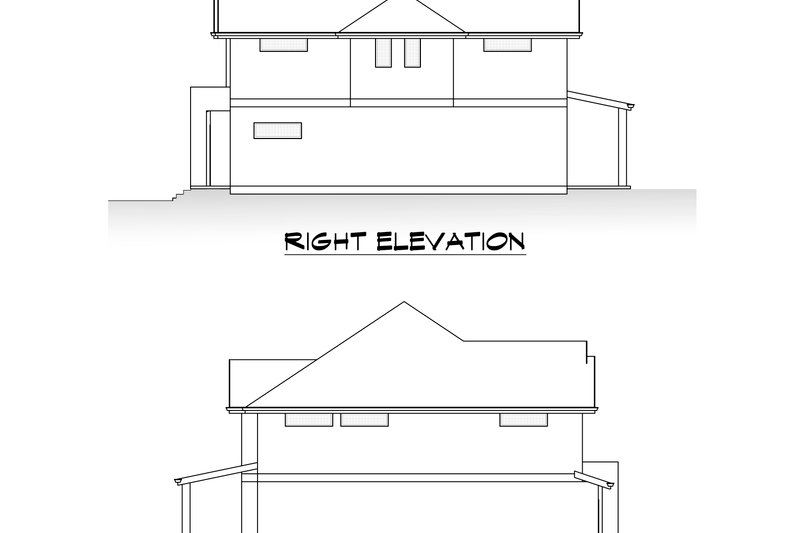

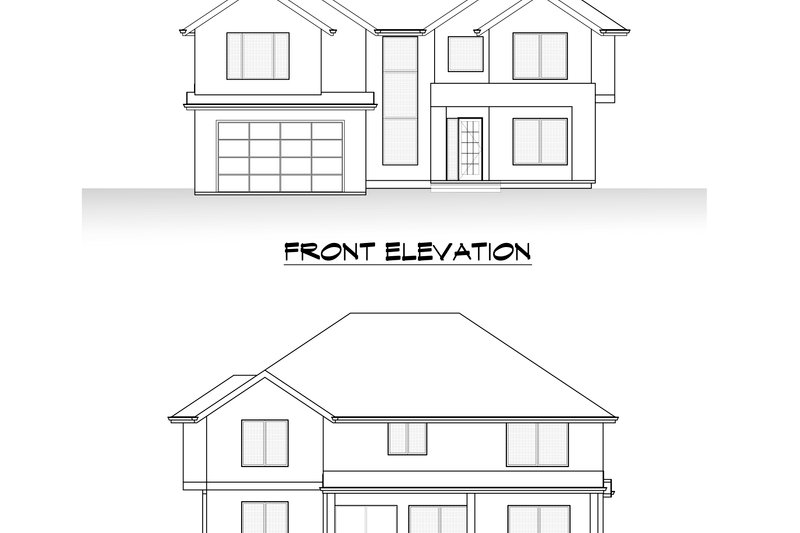

  • Elevations from all four sides showing material callouts.
  • Wall framing and sectional detail sheets.
  • Building Cross Sections showing stair and ceiling height details.
  • Window and Door schedule.
  • Overhead roof plan showing peaks, valleys, and pitch.
  • Foundation Plan showing perimeter and footing details.
  • Wall and Roof framing details
  • Misc. notes and details.
  • *Please note that any structural engineering sheets included with this plan set are for reference only.

» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$1717.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$2017.00
5 printed plan sets mailed to you.
8 Copy Set:
$2167.00
8 printed plan sets mailed to you.
CAD Set:
$3261.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$300.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
