Key Specs


Plan Sq Ft

3426
sq ft

Plan Bedrooms

7
Beds

Plan Bathrooms

6.5
Baths

Plan Floors

3
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$2950.00
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 901-167

Plan Description


Abaco is a luxurious coastal vacation home featuring 7 bedrooms, 6.5 bathrooms, a bunkroom, and a main floor primary suite with a conveniently located main floor laundry. Its open concept, covered porches, outdoor kitchen, and elevator make it ideal for entertaining. It also features private guest suites and a beach house feel, perfect for relaxing.

Floor Plans

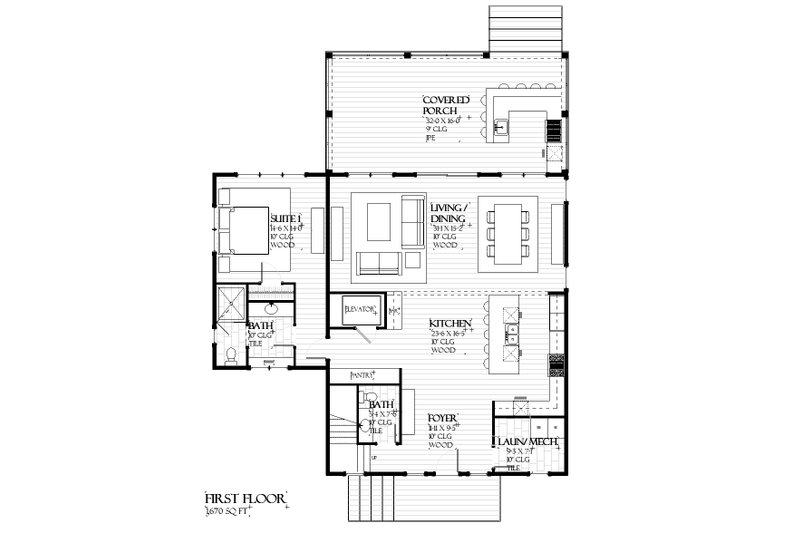

Floor Plan - Main Floor

Reverse
Save

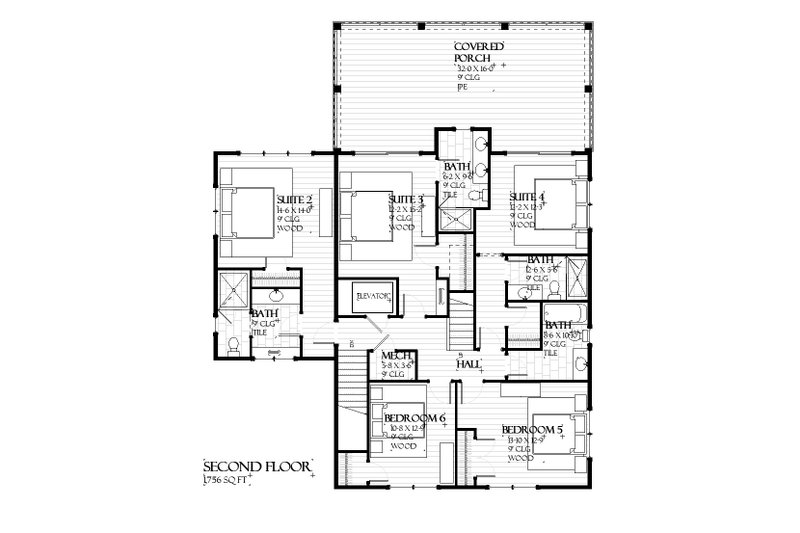

Floor Plan - Upper Floor

Reverse
Save

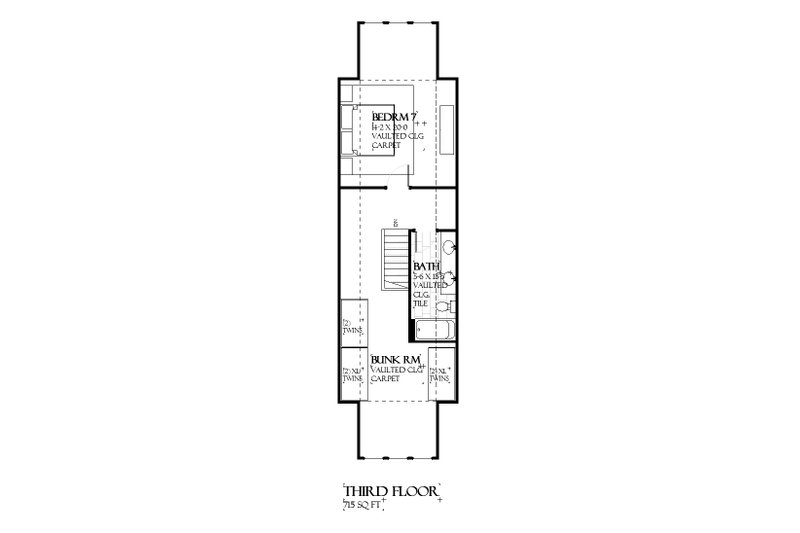

Floor Plan - Other Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 68' 2"

Height : 37' 9"

Width : 47'

Area

Main Floor : 1670 sq/ft

Third Floor : 715 sq/ft

Upper Floor : 1756 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10/12

Exterior Wall Framing

Framing : 2x6

Bedroom Features

2 Master Suites

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Rear Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

More

Elevator

Suited For Vacation Home

What's Included


  • Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.
  • Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

5 Copy Set:
$2950.00
5 printed plan sets mailed to you.
PDF Set:
$2950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$3982.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Lighting Design:
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
