Plan Description


The subtle bucolic appeal of this two-story home garners appreciation. The unique interior design is equally impressive. A see-through fireplace separates the family and keeping rooms. The covered porch off the breakfast nook is ideal for alfresco meals. The first-floor master suite is an indulgent retreat for the homeowner. Upstairs, three additional bedrooms share two full baths.


Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

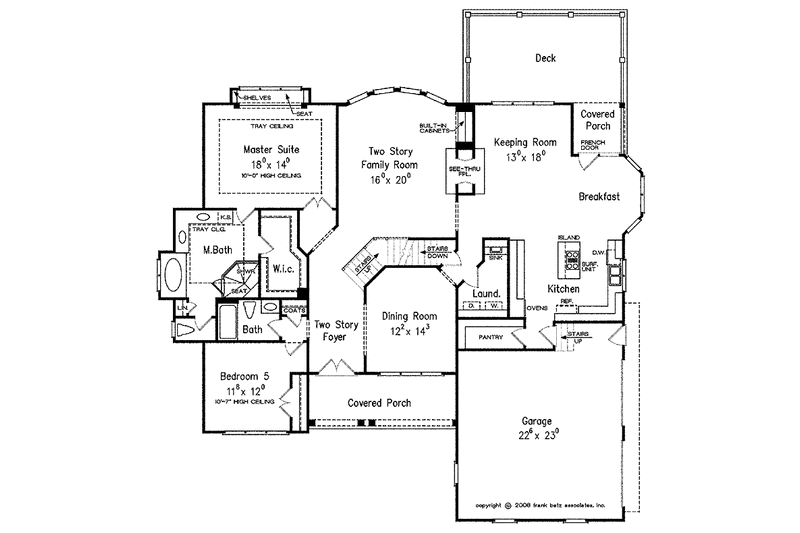

Floor Plan - Main Floor

Reverse
Save

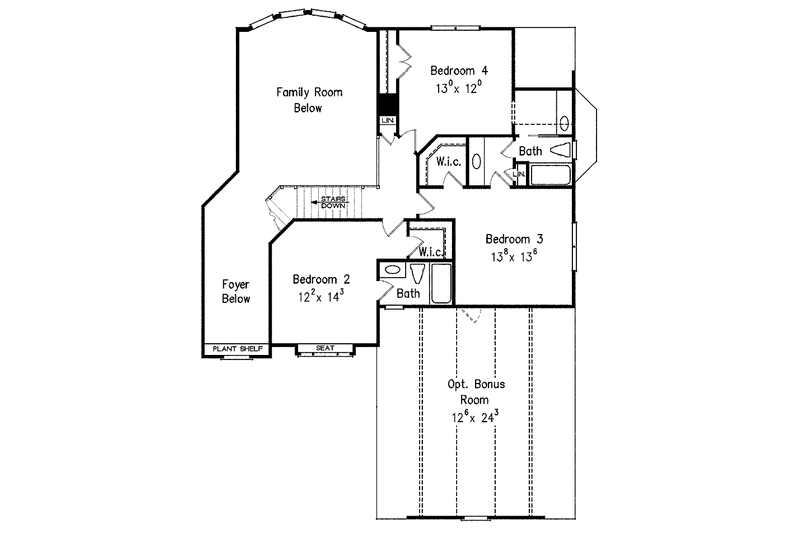

Floor Plan - Upper Floor

Reverse
Save

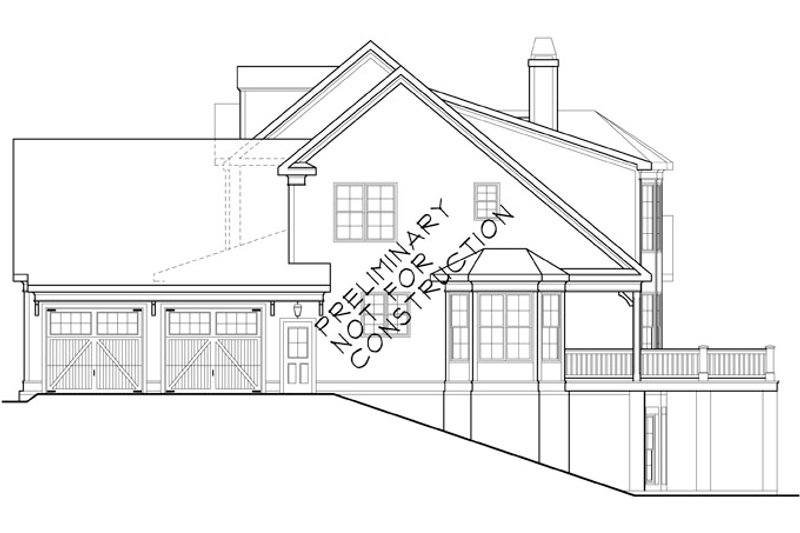

Floor Plan - Other Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 59'

Height : 32'

Width : 66'

Area

Basement Unfinished: 2233 sq/ft

Bonus: 319 sq/ft

First Floor: 2233 sq/ft height 9'

Garage: 569 sq/ft

Second Floor: 902 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Shingle

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Rooms

Bedroom 2:

173 sq/ft width 12' 2" x depth 14' 3"

Bedroom 3:

184 sq/ft width 13' 8" x depth 13' 6"

Bedroom 4:

156 sq/ft width 13' x depth 12'

Bedroom 5:

140 sq/ft width 11' 8" x depth 12'

Bonus Room - Finished:

303 sq/ft width 12' 6" x depth 24' 3"

Breakfast:

110 sq/ft width 9' 6" x depth 11' 8"

Dining Room:

173 sq/ft width 12' 2" x depth 14' 3"

Family Room:

320 sq/ft width 16' x depth 20'

Foyer:

105 sq/ft width 7' 6" x depth 14'

Garage:

517 sq/ft width 22' 6" x depth 23'

Keeping Room:

234 sq/ft width 13' x depth 18'

Kitchen:

171 sq/ft width 15' 3" x depth 11' 3"

Laundry Room:

57 sq/ft width 6' 9" x depth 8' 6"

Master bath:

width 13' 4" x depth 11' 10"

Master Bedroom:

252 sq/ft width 18' x depth 14'

Master Closet:

75 sq/ft width 6' 3" x depth 12'

Master shower:

width 4' 8" x depth 4' 8"

Pantry:

width 8' 10" x depth 4'

What's Included


    All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
» See important information before purchasing.
