PLAN #119-293

Photographs may show modified designs.

Save

Select Plan Set Options

What's included?
Additional Construction Sets
$165.00/each
Subtotal
$1575.00
Also order by phone: 1-800-528-8070
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #119-293

Key Specs


3128
sq ft

4
Beds

3.5
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Floor Plans

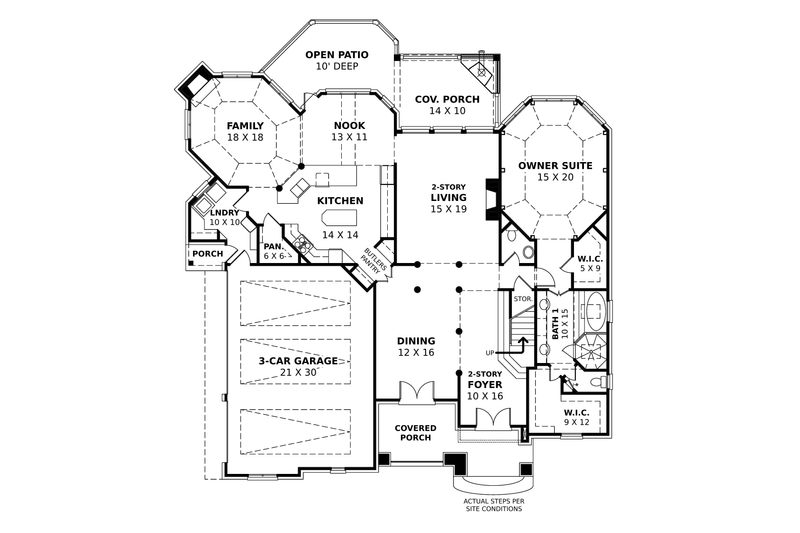

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #119-293

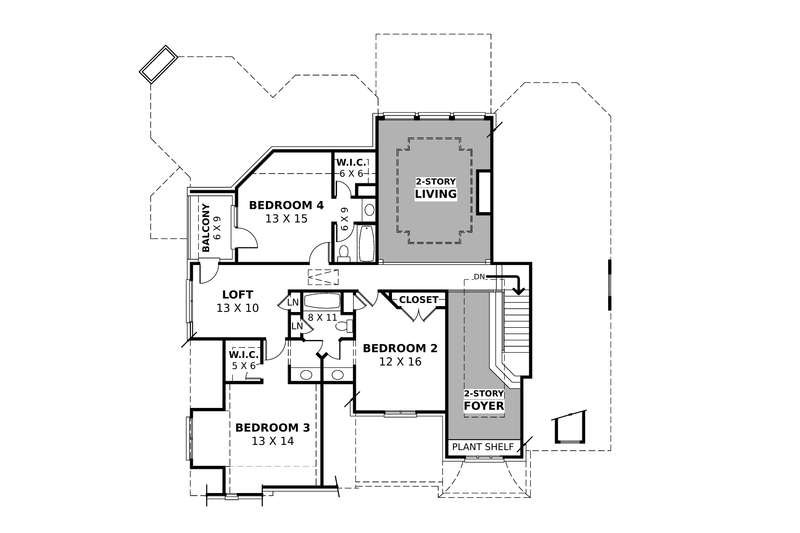

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #119-293

Full Specs & Features


Dimension
Depth : 62' 6"
Height : 36' 3"
Width : 56'
Area
First Floor: 2098 sq/ft height 9'
Second Floor: 1030 sq/ft height 8'
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Rooms

3rd BR Closet:

15 sq/ft width 7' 9" x depth 2'

Bathroom 2:

58 sq/ft width 5' 8" x depth 10' 3"

Bedroom 2:

171 sq/ft width 12' 8" x depth 13' 6"

Bedroom 2 Closet:

26 sq/ft width 4' 9" x depth 5' 7"

Bedroom 3:

162 sq/ft width 12' x depth 13' 6"

Bedroom 3 Closet:

26 sq/ft width 4' 9" x depth 5' 7"

Bedroom 4:

182 sq/ft width 12' 6" x depth 14' 7"

Bedroom 4 Closet:

23 sq/ft width 5' 7" x depth 4' 3"

Breakfast Room:

139 sq/ft width 13' 4" x depth 10' 6"

Dining Room:

188 sq/ft width 12' x depth 15' 8"

Foyer:

152 sq/ft width 9' 8" x depth 15' 9"

Garage:

627 sq/ft width 21' 4" x depth 29' 5"

Gathering Room:

285 sq/ft width 15' x depth 19'

Hall Bathroom:

58 sq/ft width 6' 9" x depth 8' 8"

Kitchen:

199 sq/ft width 14' x depth 14' 3"

Master Bathroom:

120 sq/ft width 10' 6" x depth 11' 6"

Master Bedroom:

306 sq/ft width 15' 4" x depth 20'

Master Closet:

48 sq/ft width 11' 5" x depth 4' 3"

Porch - Front:

88 sq/ft width 22' x depth 4'

Powder Room:

28 sq/ft width 4' 10" x depth 6'

Utility Room:

43 sq/ft width 8' 1" x depth 5' 5"

What's Included In This Plan Set


  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.

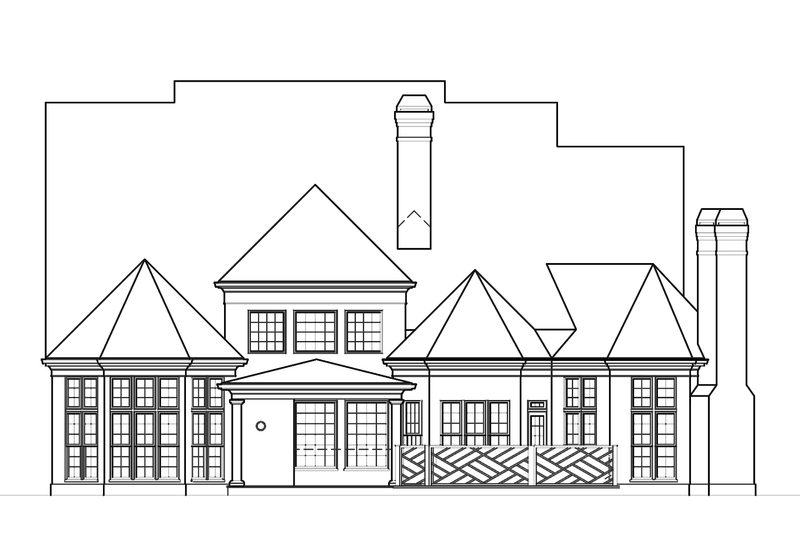

  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

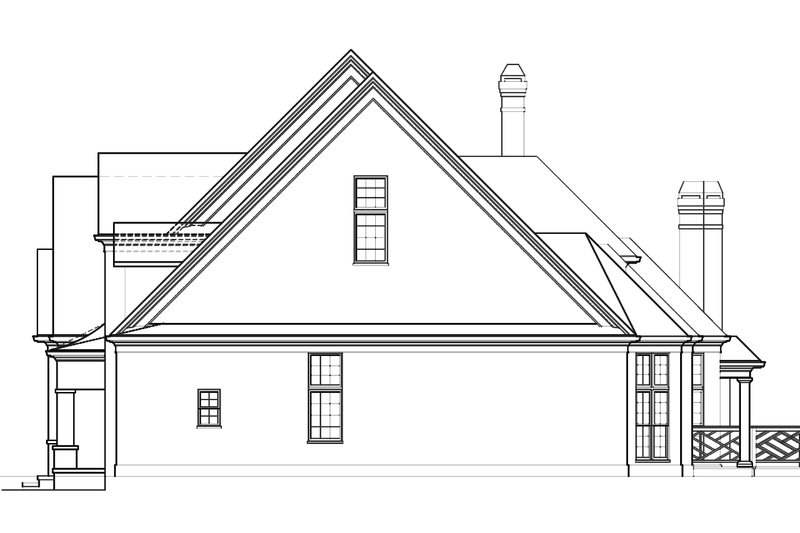

  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
» See important information before purchasing.
Plan Set
PDF Set :
$1575.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1675.00
5 printed plan sets mailed to you.
CAD Set :
$2265.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$1135.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
165.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
