PLAN #124-758

Key Specs


3112
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Plan Description


Craftsman details add nostalgic charm to a cottage that's at once traditional and contemporary. Inside, the bright and spacious gathering spaces are totally modern. The dining room flows seamlessly into a large, bright living room linked to a kitchen and nook. Kitchen amenities include a long eating bar and a work island with a prep sink.

Floor Plans


Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #124-758

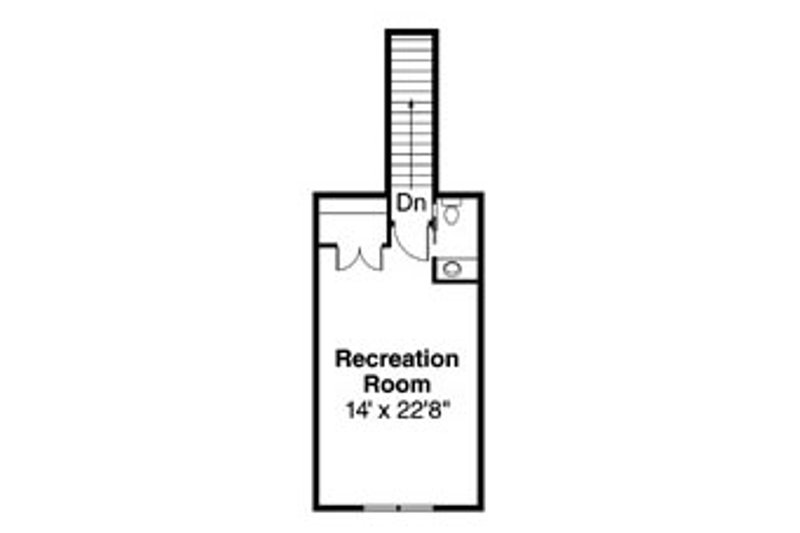

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #124-758

Full Specs & Features


Dimension
Depth : 69'
Height : 26' 6"
Width : 82'
Area
First Floor: 2689 sq/ft height 9'
Garage: 987 sq/ft height 9'
Second Floor: 423 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : 2x6
Roof Load : 25
Primary Pitch : 10:12
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Rooms

Bedroom 2:

175 sq/ft width 15' x depth 11' 8"

Bedroom 3:

136 sq/ft width 10' 8" x depth 12' 10"

Den:

159 sq/ft width 11' 6" x depth 13' 10"

Dining Room:

183 sq/ft width 12' x depth 15' 4"

Garage:

874 sq/ft width 38' x depth 23'

Living Room:

450 sq/ft width 22' 6" x depth 20'

Master Suite:

280 sq/ft width 16' 6" x depth 17'

Nook:

205 sq/ft width 14' 2" x depth 14' 6"

Patio:

242 sq/ft width 22' x depth 11'

Patio:

150 sq/ft width 15' x depth 10'

Recreation Room:

317 sq/ft width 14' x depth 22' 8"

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
