PLAN 1060-120
Photographs may show modified designs.
- Jump to:
- All (12)
- Floor plans (1)
Get Personalized Help
Key Specs
3000
sq ft
0
Beds
1
Baths
1
Floors
8
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-528-8070
Phone: 1-800-528-8070
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-120
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This traditional design floor plan is 3000 sq ft and has 0 bedrooms and 1 bathrooms.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth: 68'
Height: 27' 2"
Width: 50'
Area
Garage: 3000 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling: 16'
Main Ceiling: 16'
Roof
Primary Pitch: 5/12
Roof Framing: Truss
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: 2 X 6
Additional Room Features
Storage Area
Workshop
Garage Features
Front Entry Garage
RV Garage
Side Entry Garage
Outdoor Spaces
Wrap Around Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.

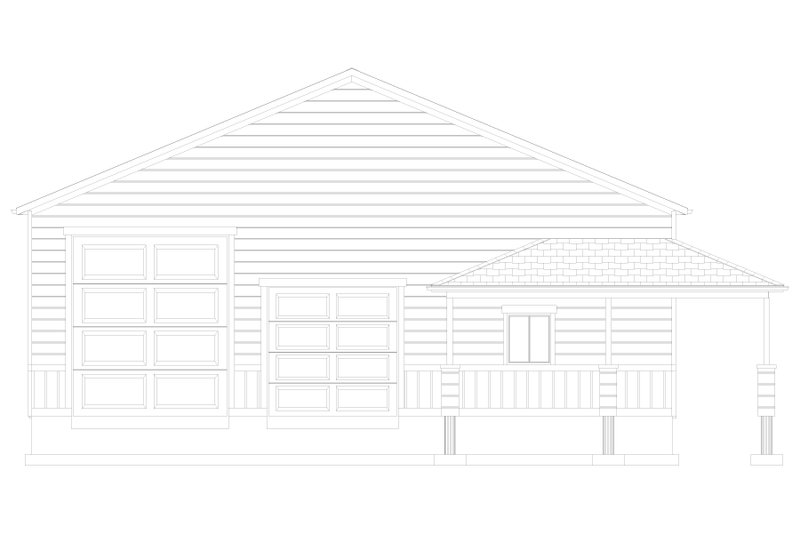

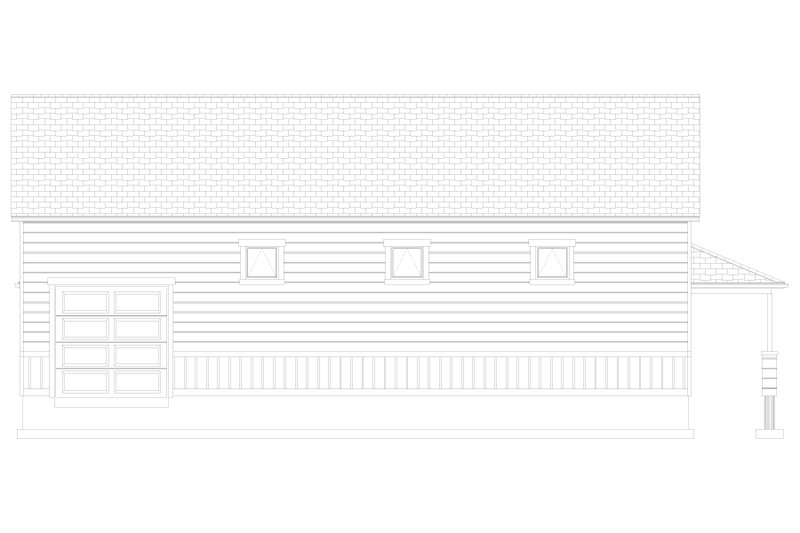

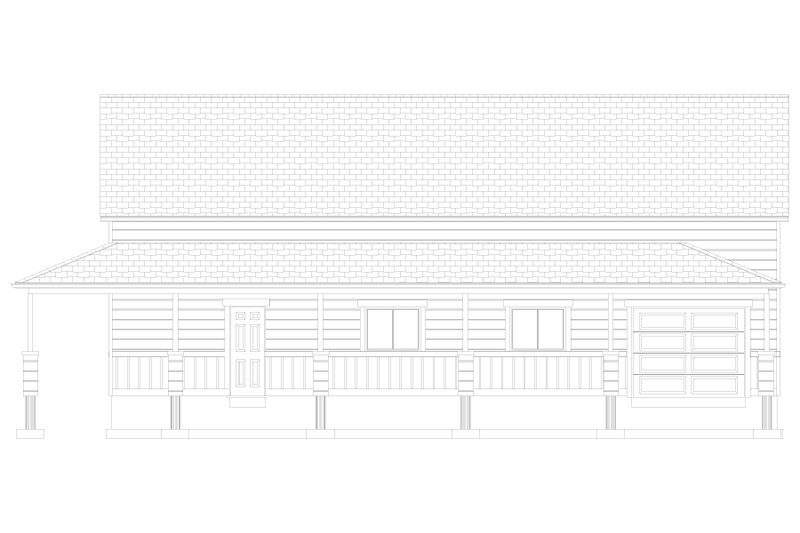

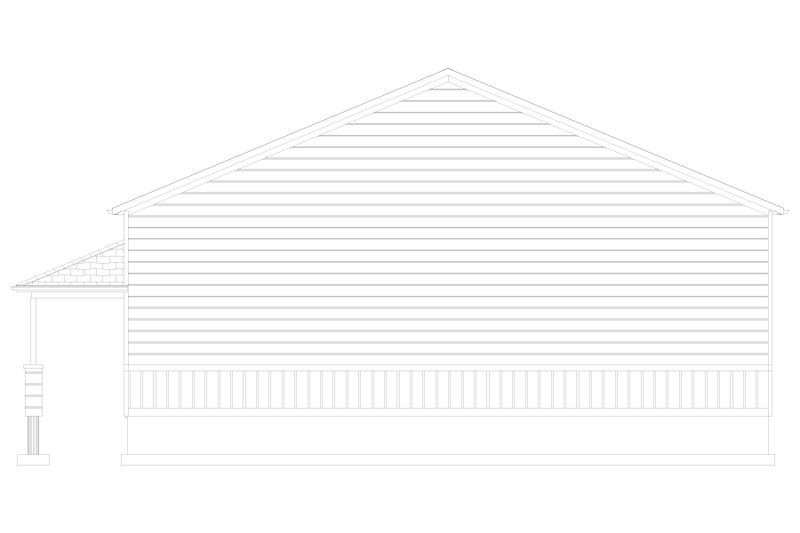

- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
