PLAN 430-37
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Personalized Help
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
PLAN 430-37
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.Plan Description
Full Specs & Features
Height : 26' 10"
Width : 76' 2"
First Floor: 2900 sq/ft height 9'
Garage: 767 sq/ft
Storage: 102 sq/ft
Ceiling Details : 11'-0" ceilings in Great Rm., Breakfast, Kitchen,Foyer,Bed 2/Study; Trayed ceilings in Master Bed and Dining
Garage Ceiling : 9'
Main Ceiling : 9'
Roof Framing : stick
Roof Type : shingles
Secondary Pitch : 4:12
Framing : 2"x4"
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Eating Bar
Walk In Pantry Cabinet Pantry
Great Room Living Room
Main Floor Laundry
Play Flex Room
Storage Area
Rear Garage
Side Entry Garage
Covered Rear Porch
Bedroom 2/ Study:
160 sq/ft width 12' 10" x depth 12' 6"
Bedroom 3:
150 sq/ft width 11' 6" x depth 13'
Bedroom 4:
150 sq/ft width 11' 6" x depth 13'
Breakfast:
154 sq/ft width 12' 10" x depth 12'
Covered Front Porch:
272 sq/ft width 34' x depth 8'
Covered Rear Porch:
413 sq/ft width 34' 2" x depth 14' 6"
Dining Room:
152 sq/ft width 12' 6" x depth 12' 2"
Foyer:
85 sq/ft width 7' x depth 12' 2"
Garage:
767 sq/ft width 25' 8" x depth 27' 6"
Great Room:
410 sq/ft width 20' 2" x depth 20' 4"
Jack & Jill Sink Area:
65 sq/ft width 5' 2" x depth 12' 8"
Kitchen:
220 sq/ft width 11' x depth 14' 6"
Master Closet:
106 sq/ft width 9' 6" x depth 11' 2"
Master Bath:
133 sq/ft width 9' 6" x depth 14'
Master Bedroom:
245 sq/ft width 15' 10" x depth 15' 6"
Office:
64 sq/ft width 9' 2" x depth 7'

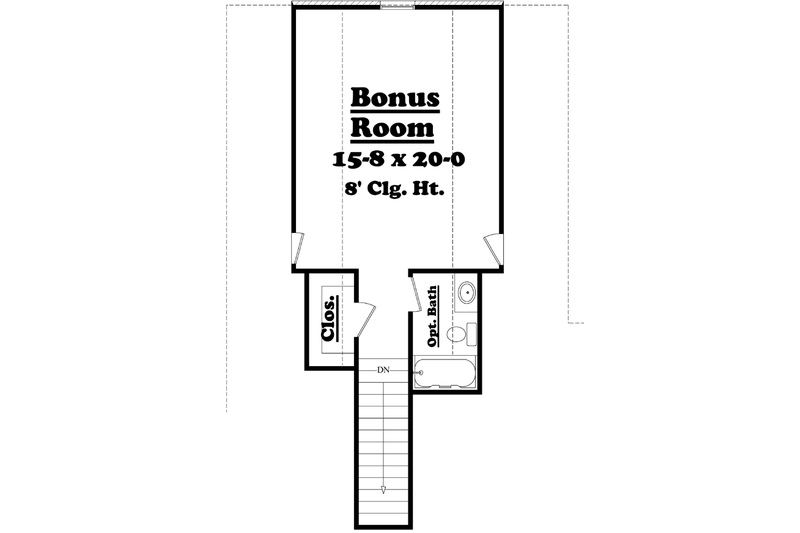

Optional Bonus Room:
472 sq/ft width 15' 8" x depth 20'
Storage:
102 sq/ft
Utility Room:
103 sq/ft width 9' 4" x depth 11'
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license.
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.
- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
- Wall Section(s) – Detail of wall materials and assembly.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
- Cabinet Elevations – Displays interior kitchen cabinet views.
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.
________________________
Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls. » See important information before purchasing.
| PDF Set : $1058.25 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set : $1270.75 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Unlimited Build : $1653.25 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Five Copy and PDF Set Unlimited Build : $1865.75 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Unlimited Build : $1908.25 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $335.75 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $276.25 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $191.25 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $85.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $420.75 |
Additional Use License. |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Material List : $191.25 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
