PLAN 119-115
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (2)
Get Personalized Help
Key Specs
2870
sq ft
3
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-800-528-8070
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 119-115
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
Floor Plans

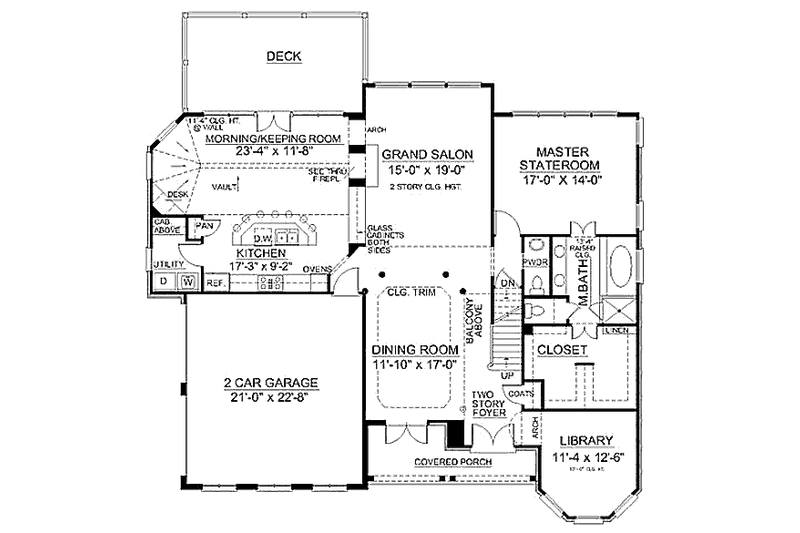

Floor Plan - Main Floor

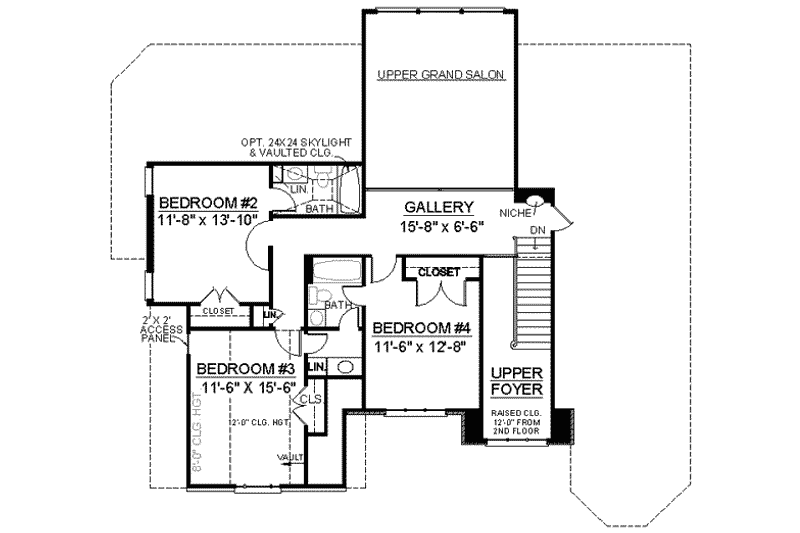

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 51' 6"
Height : 35'
Width : 58'
Area
First Floor: 1963 sq/ft
Second Floor: 907 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Loft
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
12 sq/ft width 6' x depth 2'
Basement Foundation:
2987 sq/ft width 58' x depth 51' 6"
Bathroom 2:
72 sq/ft width 12' x depth 6'
Bedroom 2:
161 sq/ft width 11' 8" x depth 13' 10"
Bedroom 2 Closet:
12 sq/ft width 6' x depth 2'
Bedroom 3:
178 sq/ft width 11' 6" x depth 15' 6"
Bedroom 3 Closet:
12 sq/ft width 6' x depth 2'
Bedroom 4:
145 sq/ft width 11' 6" x depth 12' 8"
Bedroom 4 Closet:
16 sq/ft width 8' x depth 2'
Breakfast Room:
136 sq/ft width 11' 8" x depth 11' 8"
Deck:
264 sq/ft width 22' x depth 12'
Den/Office or Bedroom 1:
124 sq/ft width 11' 4" x depth 11'
Dining Room:
189 sq/ft width 11' 2" x depth 17'
Foyer:
70 sq/ft width 7' x depth 10'
Garage:
476 sq/ft width 21' x depth 22' 8"
Gathering Room:
285 sq/ft width 15' x depth 19'
Hall Bathroom:
40 sq/ft width 8' x depth 5'
Kitchen:
172 sq/ft width 15' x depth 11' 6"
Master Bathroom:
110 sq/ft width 10' x depth 11'
Master Bedroom:
238 sq/ft width 17' x depth 14'
Master Closet:
140 sq/ft width 14' x depth 10'
Porch - Front:
140 sq/ft width 20' x depth 7'
Powder Room:
21 sq/ft width 3' x depth 7'
Utility Room:
48 sq/ft width 6' x depth 8'
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.

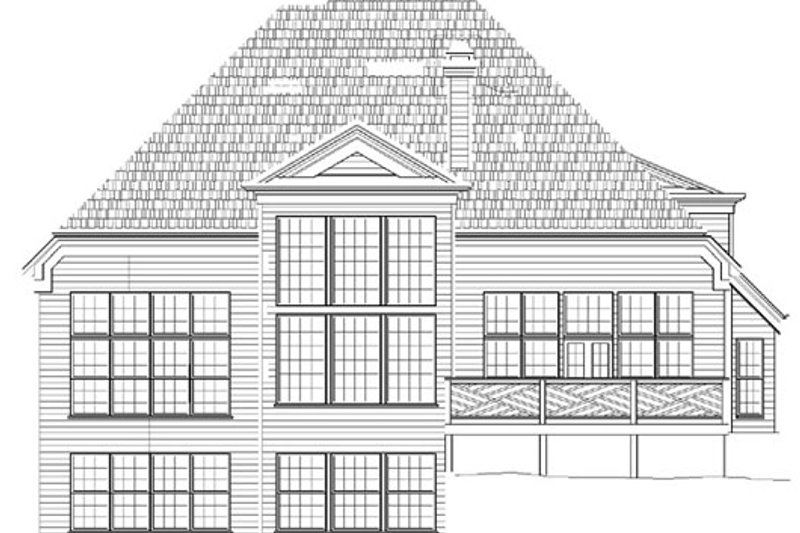

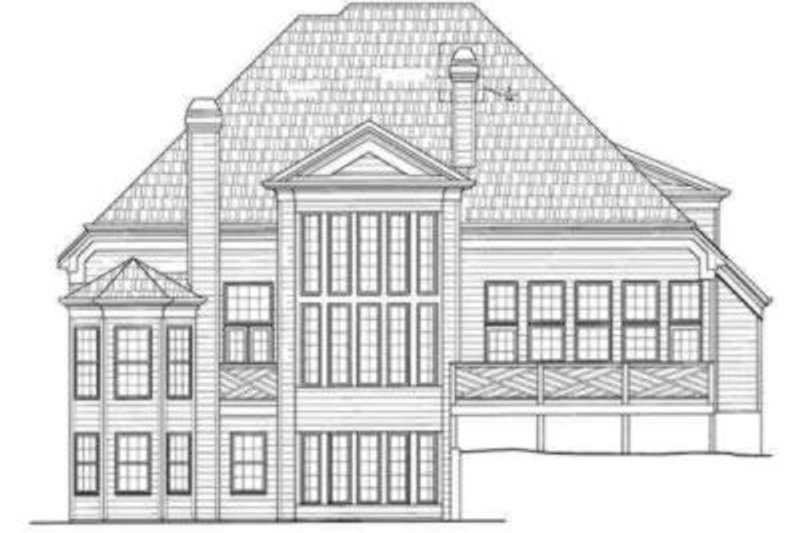

- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
Plan Set
$1295.00
$1725.00
$1825.00
$2095.00
Foundation
$0.00
Additional Options
$200.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
