Key Specs


Plan Sq Ft

2804
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$250.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $2545.75
You save $449.25 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-528-8070

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 927-1032

Plan Description


A great place for conversation and rest is the classic front porch. The porch provides protection from the elements as well as defines the entry point. The Colchester Farmhouse features exactly the kind of porch everyone desires. The use of fieldstone, painted brick and vertical siding as the materials of choice blend masterfully to present a charming elevation. Dark accents on the window sashes and the timber elements complete the design. The main floor is bright and airy with large window groupings and a wide sliding door. The open-concept design features a kitchen, dining and living area that is one huge integrated space. The owners' suite is on the main level as well as a flex room than can be a guest bedroom or home office. A convenient side entrance lives just off the driveway. The upper level contains two additional sleeping rooms along with an optional bonus room. The bonus room could add a fifth bedroom if the bath and closet are finished along with the remainder of the space.

Floor Plans

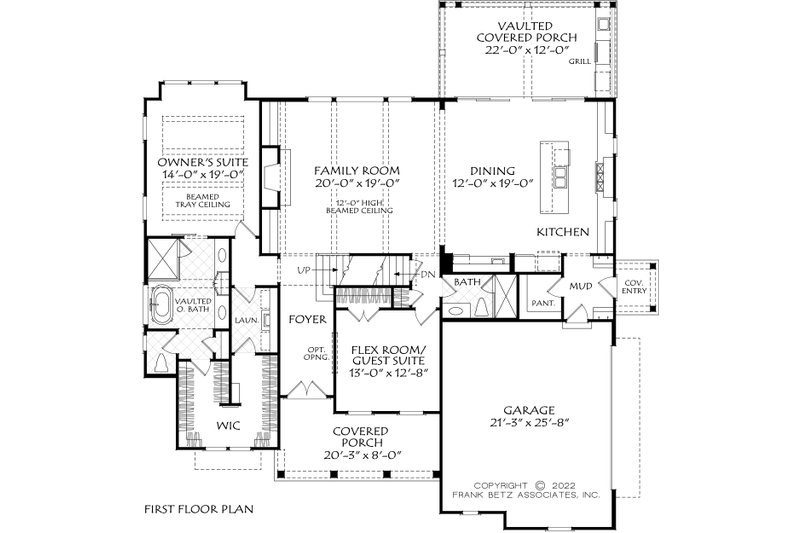

Floor Plan - Main Floor

Reverse
Save

Floor Plan - Upper Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 66'

Height : 30' 6"

Width : 64'

Area

Basement : 2130 sq/ft

Bonus : 460 sq/ft

Garage : 553 sq/ft

Main Floor : 2130 sq/ft

Upper Floor : 674 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10:12

Roof Framing : conventional

Roof Load : 20 lb live load

Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : brick/stone/siding

Framing : 2x4 wood

Bedroom Features

Guest Suite

Lower Level Bedrooms

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Mud Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

More

Jack & Jill Bath

What's Included


    All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
» See important information before purchasing.
Questions? Call 1-800-528-8070

Plan Set

PDF Set:
$2545.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$2715.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$2843.25
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Five Copy and PDF Set Unlimited Build:
$3013.25
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$3905.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
