PLAN 1111-5
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.
Plan Description
This ranch design floor plan is 2717 sq ft and has 4 bedrooms and 2.5 bathrooms.
Floor Plans

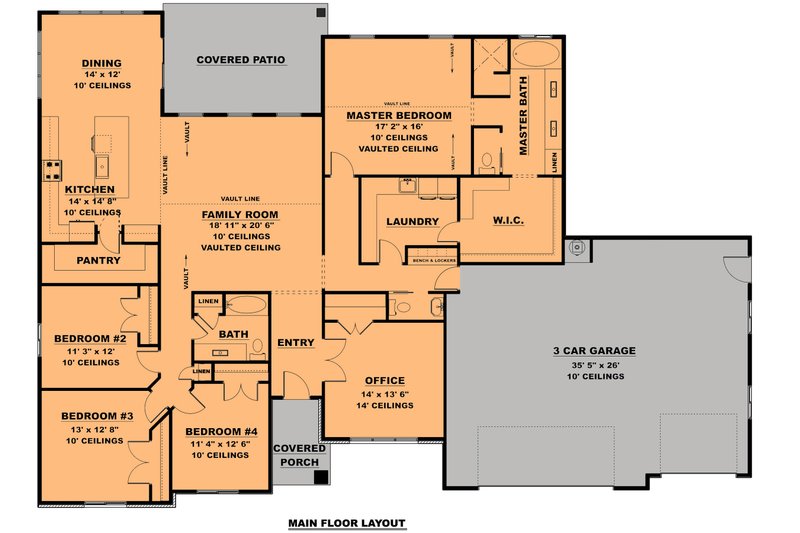

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 57' 9"
Height : 25' 1"
Width : 83' 6"
Area
Garage : 999 sq/ft
Main Floor : 2717 sq/ft
Patios : 260 sq/ft
Porch : 75 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 8/12
Roof Framing : Wood
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick, Board & Batten, Siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Mud Room
Garage Features
Front Entry Garage
Oversized Garage
More
Additional Half Bath
What's Included In This Plan Set
- All plans are drawn at ¼” scale or larger and include :
-
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches. Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing. Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required. Birds Eye View: Shows the hips, valleys, pitch, and gables of the roof as if you were looking down upon the home. Electrical Plans: Drawn to 1/4" scale. Index Page Notes Page Detail Pages
Questions? Call 1-800-528-8070
Plan Set
PDF Set:
$1595.00
$1595.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$459.00
$459.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$459.00
$459.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$459.00
$459.00
Ideal for sloping lot, lower level of home partially underground.
Walk Out Basement:
$459.00
$459.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$150.00
$150.00
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$150.00
$150.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
