PLAN 84-617

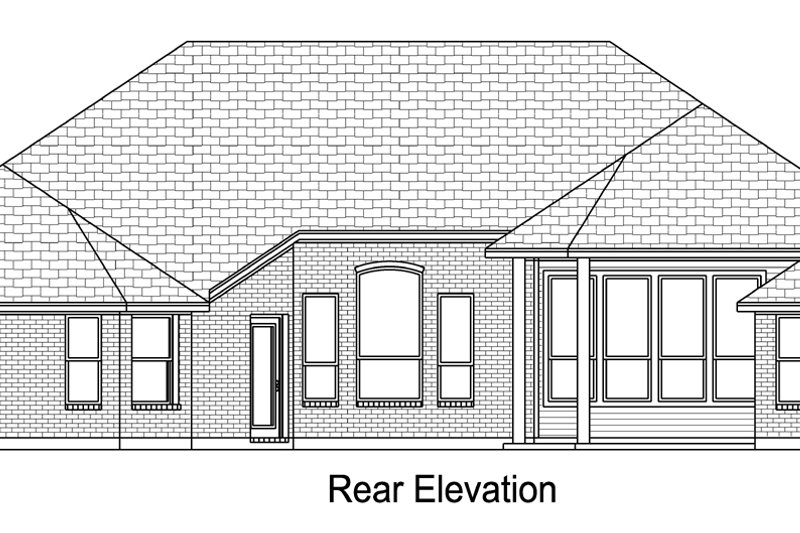

European Exterior - Rear Elevation Plan #84-617

European Floor Plan - Main Floor Plan Plan #84-617

Key Specs

2715
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $157.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $54.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $54.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $796.50

You save $88.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-528-8070

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-528-8070

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-528-8070

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 84-617

Key Specs

2715
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-528-8070 for assistance.

Modify This Plan

Plan Description

This 4 bedroom plan is perfect for a growing family. The large kitchen has all the ammenities with an island, walk-in pantry, eat-at bar & is open to the family area & dining nook. Enjoy cozing up to the fire on a chilly night in front of the Pass through gas fireplace between the family and living areas. Master Suite has views to the backyard & enjoy the luxurious bath which boasts a cathedral ceiling & hidden cedar footage in the large closet. The 4th bedroom is perfect to utilize as a guest bedroom or home office. Garage is located in the front of the house with a swing entry, but the plans also show the garage door can be placed on the side of the house making it perfect for a corner lot.

Floor Plans

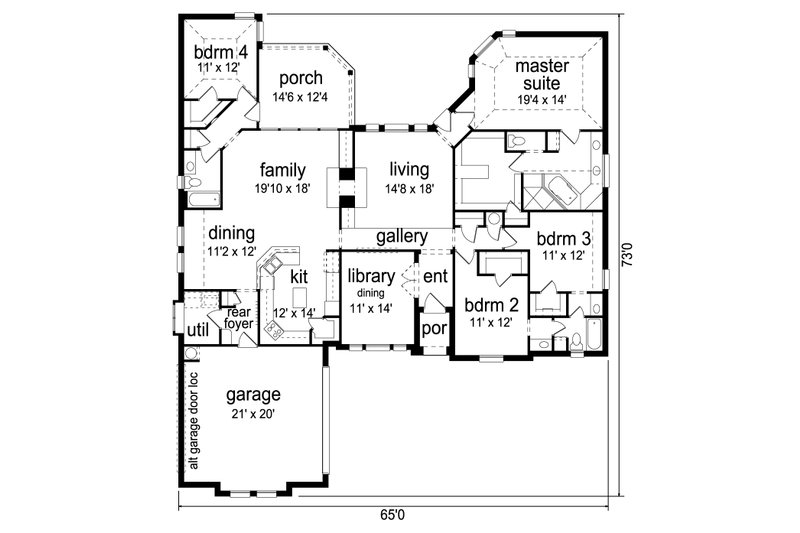

Floor Plan - Main Floor Plan

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 73'
Height : 22'
Width : 65'

Area

First Floor: 2715 sq/ft
Garage: 500 sq/ft height 8'
Porch: 172 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 10' vault in master 10' vault in bdrm4
Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Gables
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick, stone
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Side Entry Garage

Entryway

Friend S Entry

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 11' x depth 12'

Bedroom 3:

width 11' x depth 12'

Bedroom 4:

width 11' x depth 12'

Dining Area:

width 11' 2" x depth 12'

Family Room:

width 19' 10" x depth 18'

Front Porch:

30 sq/ft

Garage:

500 sq/ft width 21' x depth 20'

Kitchen:

width 12' x depth 14'

Library:

width 11' x depth 14'

Living Room:

width 14' 8" x depth 18'

Master Bedroom:

width 19' 4" x depth 14'

Rear Porch:

172 sq/ft width 14' 6" x depth 12' 4"

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.

» See important information before purchasing.

Questions? Call 1-800-528-8070

Plan Set

5 Copy Set : $796.50	5 printed plan sets mailed to you.
8 Copy Set : $864.00	8 printed plan sets mailed to you.
PDF Set : $967.50	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1017.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1678.50	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set : $742.50	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse : $157.50	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $54.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $54.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
