PLAN #48-780

Key Specs

2707
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

Need a quote fast? Call us at 1-800-528-8070.

Modify This Plan

Plan Description

Inside and out, this home is packed with delightful details. The entry captivates with its diamond shape, curved stairwell and awesome height. The angled pantry will fit everything you need and living spaces are spiced up with columns set on slants. The family room features a corner entertainment center and the master suite boasts a tub that juts out from the bath. Two second-floor family bedrooms share a hall bath with the bonus room, which is perfect for a home office or playroom.

Floor Plans

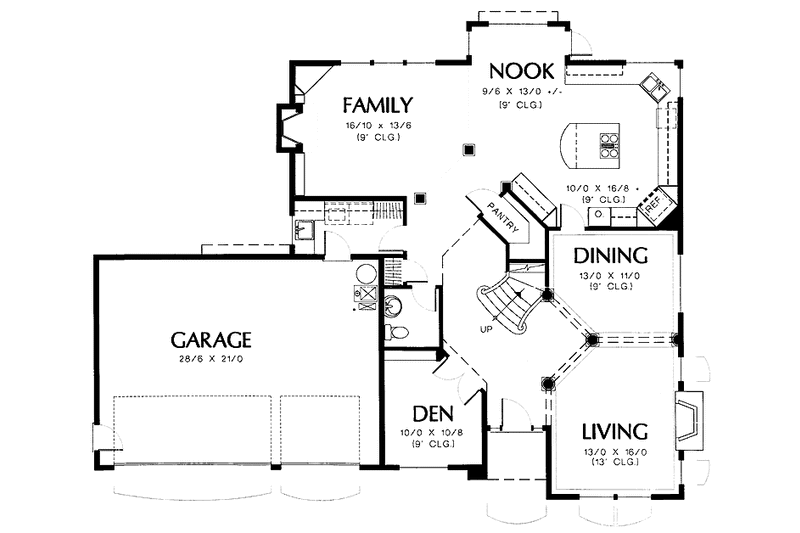

Floor Plan - Main Floor Plan

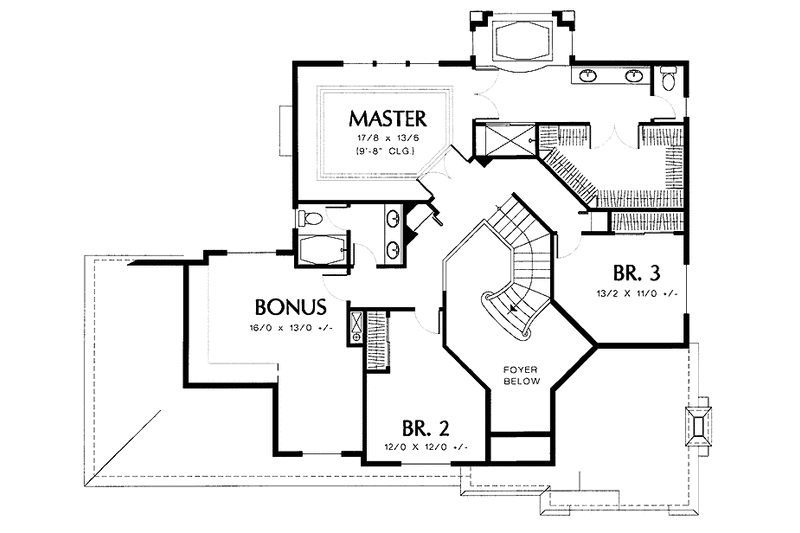

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 50'
Height : 34'
Width : 60'

Area

Bonus: 288 sq/ft
First Floor: 1547 sq/ft height 9'
Second Floor: 1160 sq/ft

Roof

Roof Framing : Conventional
Primary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 13' 2" x depth 11'

Bonus Room - Finished:

208 sq/ft width 16' x depth 13'

Den:

106 sq/ft width 10' x depth 10' 8"

Dining Room:

143 sq/ft width 13' x depth 11'

Family Room:

227 sq/ft width 16' 10" x depth 13' 6"

Garage:

556 sq/ft width 26' 6" x depth 21'

Kitchen:

165 sq/ft width 10' x depth 16' 6"

Living Room:

208 sq/ft width 13' x depth 16'

Master Bedroom:

238 sq/ft width 17' 8" x depth 13' 6"

Nook:

123 sq/ft width 9' 6" x depth 13'

What's Included In This Plan Set

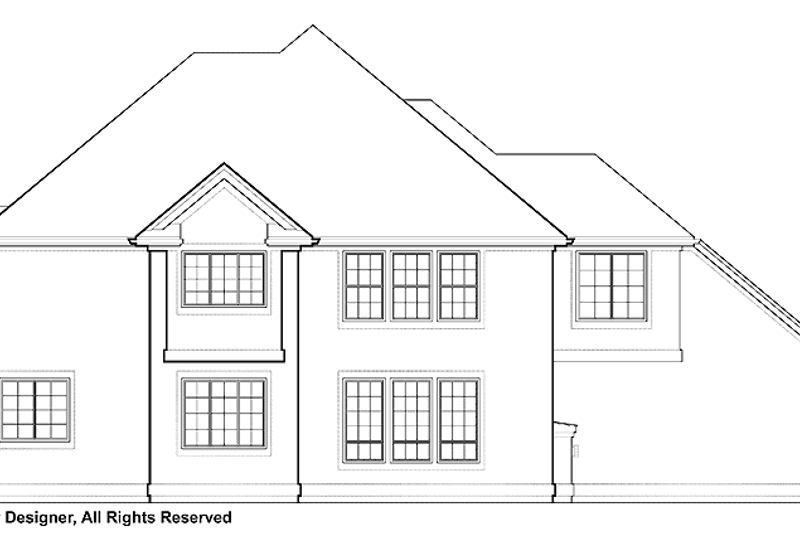

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
