Plan Description
This island basement home is an excellent example of open floor plan living. There is an enormous amount of common space and features in the great room, which can welcome the outdoors inside when the sliding glass doors are opened. The rear patio and outdoor kitchen with its built-in grill become part of the living space. A common mistake designers make with open floor plan homes is not giving enough attention to the private spaces. The master suite has abundant access to the rear patio, as well as a very roomy master bath with walk-in shower. Each guest suite has its own full bath and large closet. And the study could easily be used as a bedroom. Everyone will feel they have the amount of seclusion they need for resting, studying, or working. The elevator is a great addition to this home, making the island basement very user friendly. The lower level gives you ample space for a rec room, craft room or a workshop. And because the 2-car garage is under the house, the overall footprint of this home is small. Making it perfect for almost any sized lot.
Read More
Floor Plans

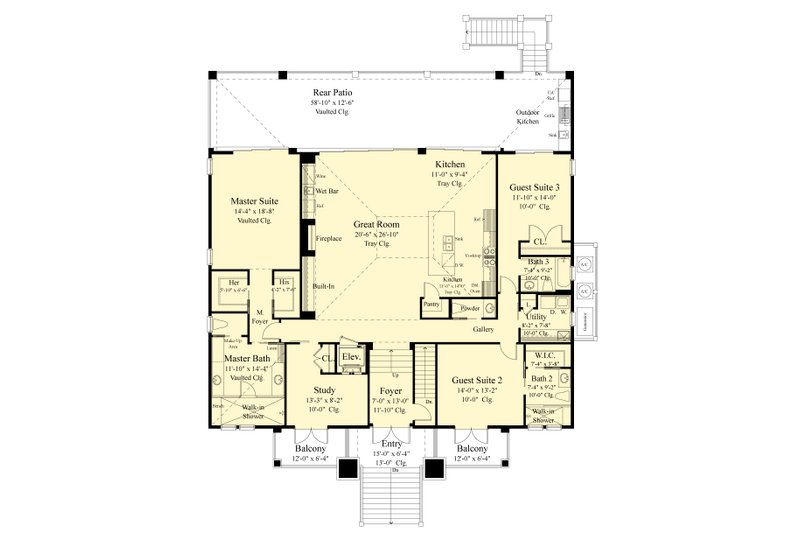

Floor Plan - Main Floor

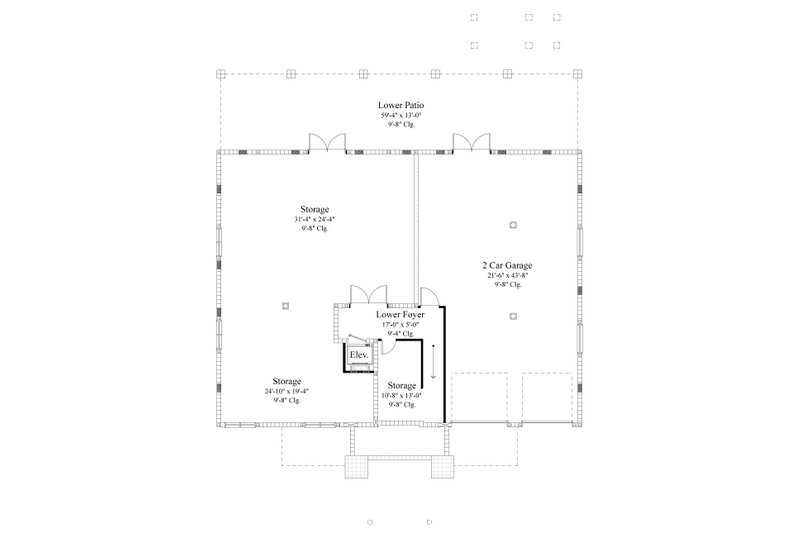

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 66'
Height : 36' 5"
Width : 59' 4"
Area
Decks : 276 sq/ft
Garage : 1193 sq/ft
Lower Floor : 1475 sq/ft
Main Floor : 2670 sq/ft
Patios : 771 sq/ft
Porch : 771 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Ceiling Heights Vary.
Roof
Primary Pitch : 6/12
Roof Type : Flat Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block (First Level) & Wood 2x6 (Second Level)
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More
Additional Half Bath
Elevator
Suited For Vacation Home
What's Included In This Plan Set
Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.
» See important
information before purchasing.
- Cover Sheet: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference.
- Foundation Plan(s): This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. Important: actual structural information should be obtained by a locally licensed engineer for your specific site location.
- Floor Plan(s): This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.
- Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.
- Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.
- Overhead Roof Plan(s): The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.
- Cross Section(s): This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.
- Electrical Plan(s): This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
- Construction Notes / Detail(s): This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable). Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Framing Detail(s): Homes with a basement or crawlspace will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.
- Other Note(s): Reflected ceiling plan: this designer's most distinguishable feature is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.
- Site Plan(s): The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.
